ST202-BLPZF (1995)

Toyota Celica

Production Aug 1995 - Aug 1999
Engine 3SGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

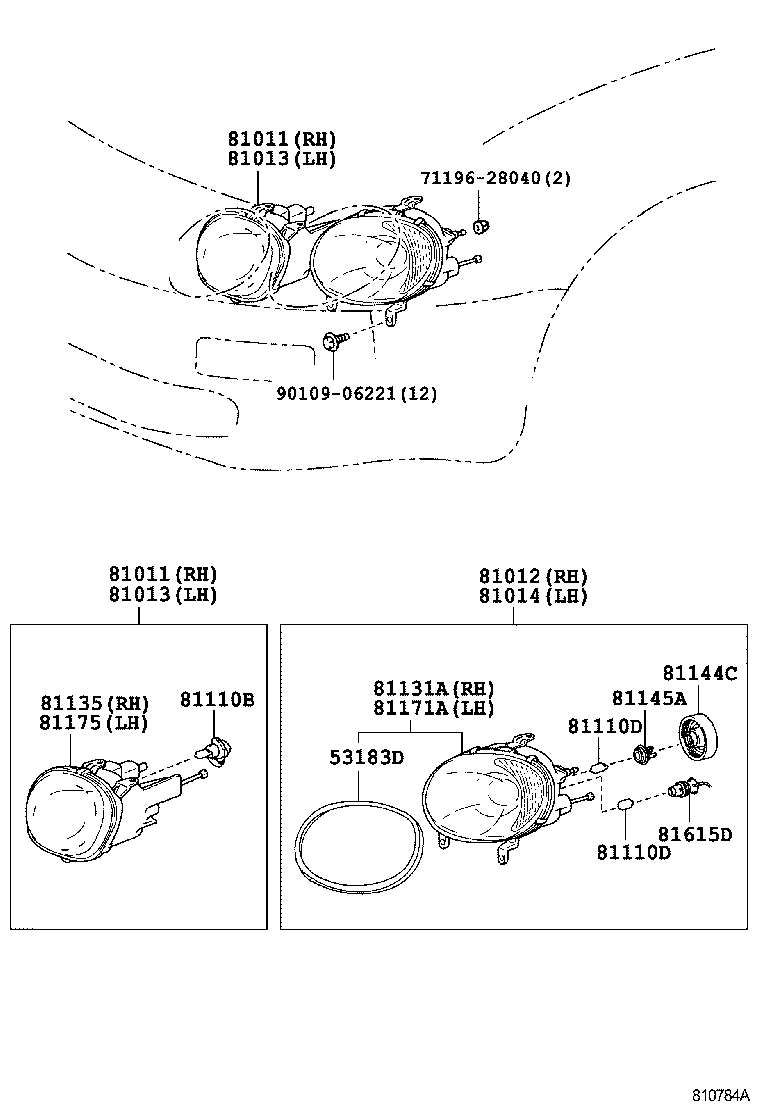

(9712- )

Click highlighted areas on diagram

diagram 53183D 7119628040 81011 81011 81012 81013 81013 81014 81110B 81110D 81110D 81131A 81135 81144C 81145A 81171A 81175 81615D 9010906221
Part # Description Qty Price
53183D - SEAL, HEADLAMP COVER TO HOOD
53184-20070

ST20#

左側

 1
53183-20110

ST20#

右側

 1
53184-20070

ST20#

左側

 1
53183-20110

ST20#

右側

 1
81011 - HEADLAMP SUB-ASSY, NO.1
81011-20050

ST20#

 1
81011-20010

ST20#

 1
81011 - HEADLAMP SUB-ASSY, NO.1
81011-20050

ST20#

 1
81011-20010

ST20#

 1
81012 - HEADLAMP SUB-ASSY, NO.2
81012-20010

ST20#

 1
81012-20100

ST20#

 1
81013 - HEADLAMP SUB-ASSY, TYPE 1, LH
81013-20010

ST20#

 1
81013-20050

ST20#

 1
81013 - HEADLAMP SUB-ASSY, TYPE 1, LH
81013-20010

ST20#

 1
81013-20050

ST20#

 1
81014 - HEADLAMP SUB-ASSY, TYPE 2, LH
81014-20100

ST20#

 1
81014-20010

ST20#

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13046

ST20#

12V65W(SAE),60W(ECE)

 2
90981-13046

ST20#

12V65W(SAE),60W(ECE)

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13047

ST20#

12V 55W,ﾊﾛｹﾞﾝ

 2
90981-13017

ST20#

12V 55W,*HAL *WH

 2
99132-12050

ST20#

12V 5W

 2
99132-12050

ST20#

12V 5W

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13047

ST20#

12V 55W,ﾊﾛｹﾞﾝ

 2
90981-13017

ST20#

12V 55W,*HAL *WH

 2
99132-12050

ST20#

12V 5W

 2
99132-12050

ST20#

12V 5W

 2
81131A - UNIT, HEADLAMP, RH
81131-20010

ST20#

 1
81130-20100

ST20#

 1
81135 - UNIT ASSY, HEADLAMP, RH
81130-20010

ST20#

 1
81130-20050

ST20#

 1
81144C - COVER, HEADLAMP SOCKET
90075-65002

ST20#

 2
81145A - ADAPTER ASSY
90075-99123

ST20#

 2
81171A - UNIT, HEADLAMP, LH
81171-20010

ST20#

 1
81170-20100

ST20#

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-20010

ST20#

 1
81170-20050

ST20#

 1
81615D - SOCKET, CLEARANCE LAMP
99159-10228

ST20#

 2
Common parts
71196-28040
90109-06221

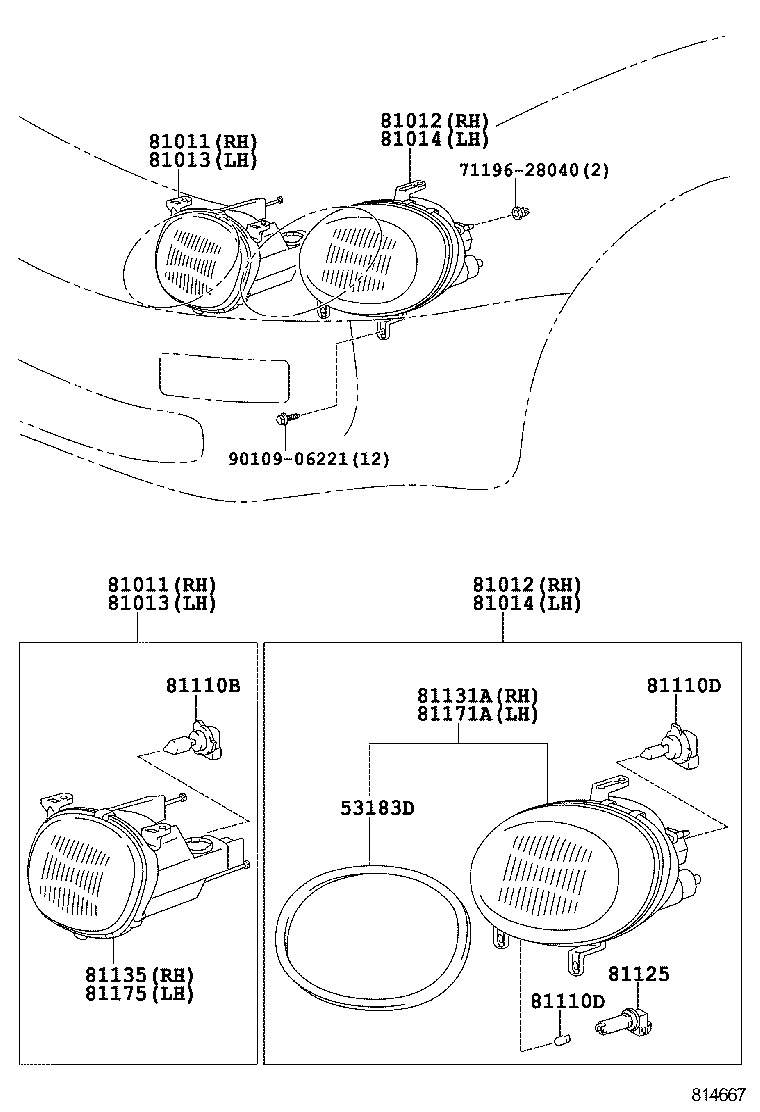

(9309-9712)

Click highlighted areas on diagram

diagram 53183D 7119628040 81011 81011 81012 81012 81013 81013 81014 81014 81110B 81110D 81110D 81125 81131A 81135 81171A 81175 9010906221
Part # Description Qty Price
53183D - SEAL, HEADLAMP COVER TO HOOD
53184-20070

ST20#

左側

 1
53183-20110

ST20#

右側

 1
53184-20070

ST20#

左側

 1
53183-20110

ST20#

右側

 1
81011 - HEADLAMP SUB-ASSY, NO.1
81011-20050

ST20#

 1
81011-20010

ST20#

 1
81011 - HEADLAMP SUB-ASSY, NO.1
81011-20050

ST20#

 1
81011-20010

ST20#

 1
81012 - HEADLAMP SUB-ASSY, NO.2
81012-20010

ST20#

 1
81012-20100

ST20#

 1
81012 - HEADLAMP SUB-ASSY, NO.2
81012-20010

ST20#

 1
81012-20100

ST20#

 1
81013 - HEADLAMP SUB-ASSY, TYPE 1, LH
81013-20010

ST20#

 1
81013-20050

ST20#

 1
81013 - HEADLAMP SUB-ASSY, TYPE 1, LH
81013-20010

ST20#

 1
81013-20050

ST20#

 1
81014 - HEADLAMP SUB-ASSY, TYPE 2, LH
81014-20100

ST20#

 1
81014-20010

ST20#

 1
81014 - HEADLAMP SUB-ASSY, TYPE 2, LH
81014-20100

ST20#

 1
81014-20010

ST20#

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13046

ST20#

12V65W(SAE),60W(ECE)

 2
90981-13046

ST20#

12V65W(SAE),60W(ECE)

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13047

ST20#

12V 55W,ﾊﾛｹﾞﾝ

 2
90981-13017

ST20#

12V 55W,*HAL *WH

 2
99132-12050

ST20#

12V 5W

 2
99132-12050

ST20#

12V 5W

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13047

ST20#

12V 55W,ﾊﾛｹﾞﾝ

 2
90981-13017

ST20#

12V 55W,*HAL *WH

 2
99132-12050

ST20#

12V 5W

 2
99132-12050

ST20#

12V 5W

 2
81125 - CORD, HEADLAMP
90075-99044

ST20#

 2
81131A - UNIT, HEADLAMP, RH
81131-20010

ST20#

 1
81130-20100

ST20#

 1
81135 - UNIT ASSY, HEADLAMP, RH
81130-20010

ST20#

 1
81130-20050

ST20#

 1
81171A - UNIT, HEADLAMP, LH
81171-20010

ST20#

 1
81170-20100

ST20#

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-20010

ST20#

 1
81170-20050

ST20#

 1
Common parts
71196-28040
90109-06221
