ST202-BLPVF (1993)

Toyota Celica

Production Sep 1993 - Aug 1999
Engine 3SGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9309- )LB

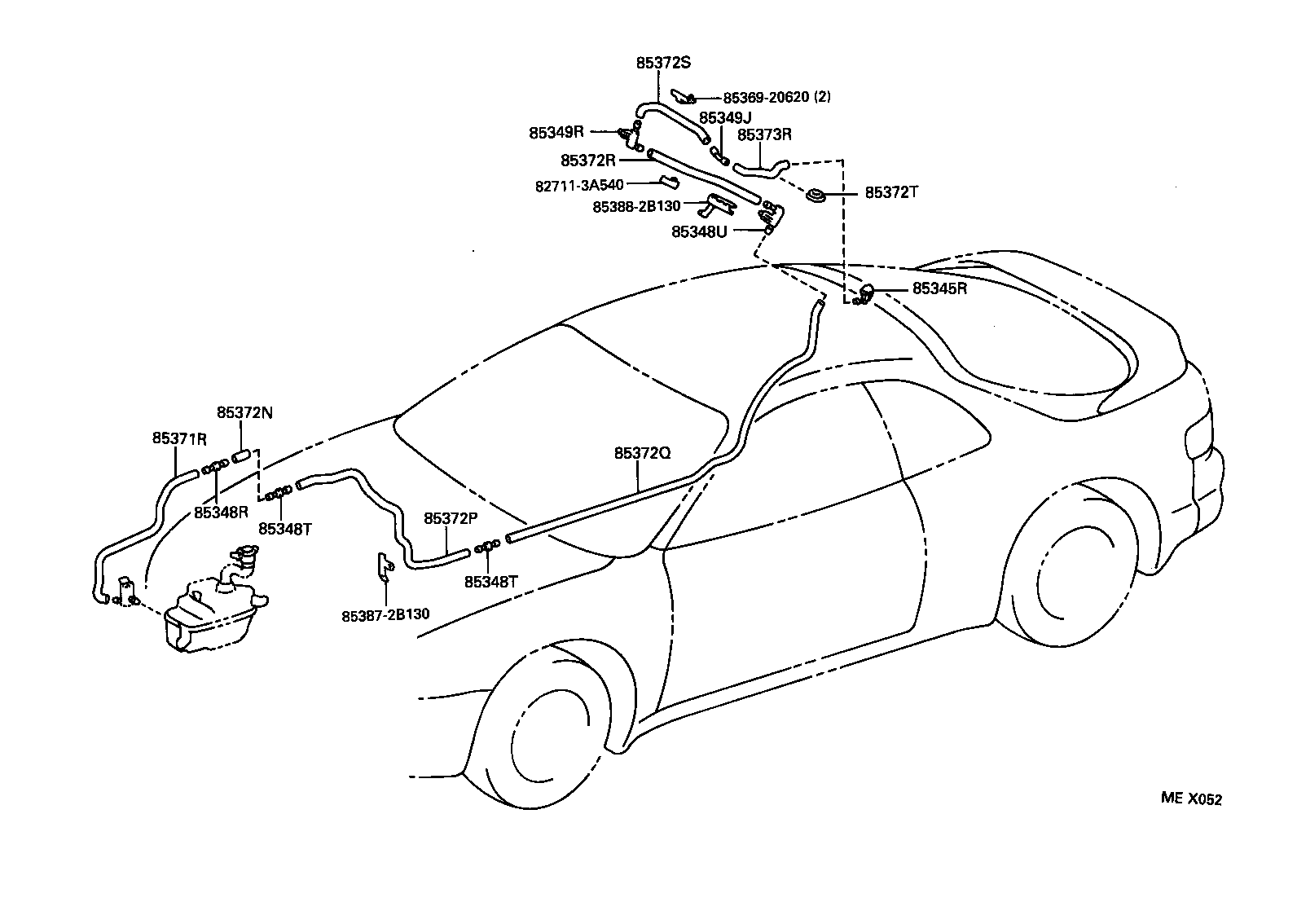

Click highlighted areas on diagram

diagram 827113A540 85345R 85348R 85348T 85348T 85348U 85349J 85349R 8536920620 85371R 85372N 85372P 85372Q 85372R 85372S 85372T 85373R 853872B130 853882B130
Part # Description Qty Price
85345R - NOZZLE, REAR WASHER
85395-20020

ST20#..LB

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

ST20#..LB

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

ST20#..LB

 2
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

ST20#..LB

 2
85348U - JOINT, REAR WASHER HOSE, NO.3
85377-2B130

ST20#..LB

 1
85349J - JOINT, REAR WASHER HOSE, NO.4
85355-32020

ST20#..LB

 1
85349R - JOINT, REAR WASHER HOSE, NO.5
85375-12480

ST20#..LB

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-07001

ST20#..LB

*H,L=760

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90099-33299

ST20#..LB

*H,L=50

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90446-07001

ST20#..LB

*H,L=960

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90099-59045

ST20#..LB

*H,L=2200

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90446-07001

ST20#..LB

*H,L=570

 1
85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
90099-33299

ST20#..LB

長さ=390

 1
85372T - GROMMET, WASHER
85372-20060

ST20#..LB

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33299

ST20#..LB

*H,L=220

 1
Common parts
82711-3A540
85369-20620
85387-2B130
85388-2B130
