ST202-BLPVF (1993)

Toyota Celica

Production Sep 1993 - Aug 1999
Engine 3SGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

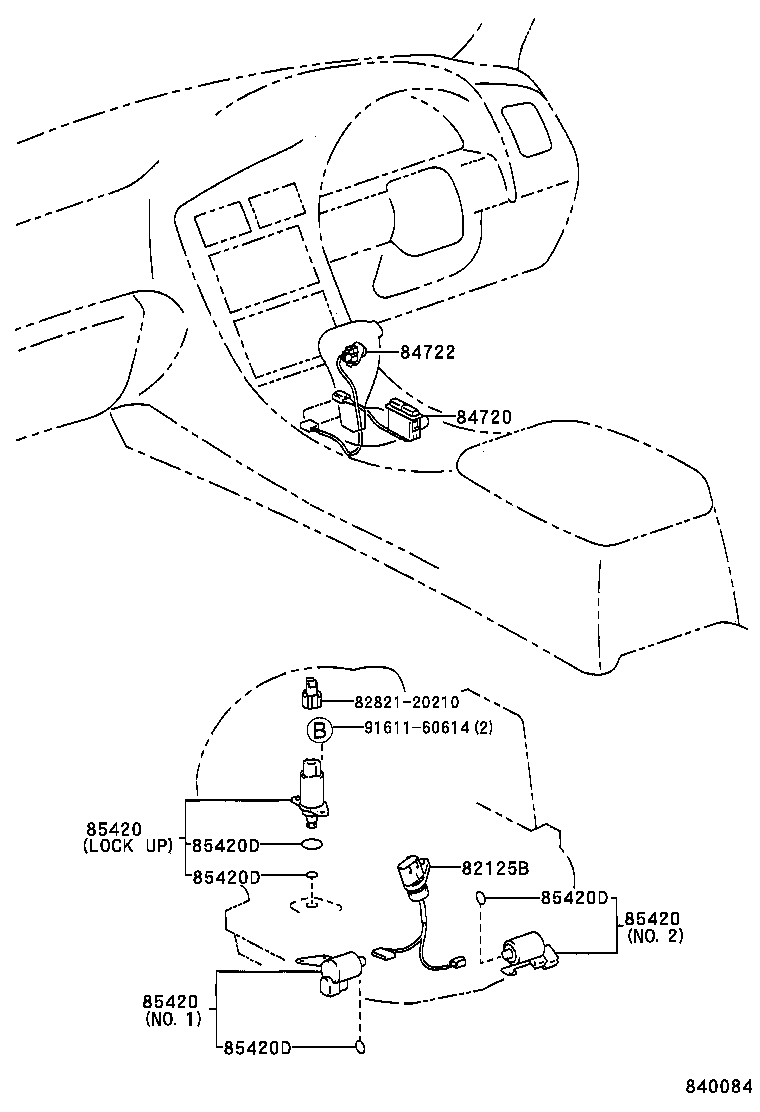

(9309-9712)ATM ; (9712- )ATM..SS1

Click highlighted areas on diagram

diagram 82125B 8282120210 84720 84722 85420 85420 85420 85420D 85420D 85420D 85420D 9161160614
Part # Description Qty Price
82125B - WIRE, TRANSMISSION
82125-20150

ST202,203..ATM

 1
82125-20220

ST202..ATM..(CV,SS2,SS3)

 1
84720 - SWITCH ASSY, PATTERN SELECT
84720-20130

ST202,203..ATM

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-20130C0

ST202,203..ATM

BLACK,TRIM2#

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-20110

ST202..ATM..(CV,SS2)

 1
85420-20110

ST202,203..ATM

ﾛｯｸ ｱｯﾌﾟ

 1
85420-32021

ST202,203..ATM

NO.1

 1
85420-32140

ST202,203..ATM

NO.2

 1
85420-21070

ST202..ATM..(CV,SS2,SS3)

NO.1

 1
85420-21090

ST202..ATM..(CV,SS2,SS3)

NO.2,DENSO

 2
85420-21100

ST202..ATM..(CV,SS2,SS3)

NO.2,AISIN

 2
85420 - SOLENOID ASSY, TRANSMISSION
85420-20110

ST202..ATM..(CV,SS2)

 1
85420-20110

ST202,203..ATM

ﾛｯｸ ｱｯﾌﾟ

 1
85420-32021

ST202,203..ATM

NO.1

 1
85420-32140

ST202,203..ATM

NO.2

 1
85420-21070

ST202..ATM..(CV,SS2,SS3)

NO.1

 1
85420-21090

ST202..ATM..(CV,SS2,SS3)

NO.2,DENSO

 2
85420-21100

ST202..ATM..(CV,SS2,SS3)

NO.2,AISIN

 2
85420 - SOLENOID ASSY, TRANSMISSION
85420-20110

ST202..ATM..(CV,SS2)

 1
85420-20110

ST202,203..ATM

ﾛｯｸ ｱｯﾌﾟ

 1
85420-32021

ST202,203..ATM

NO.1

 1
85420-32140

ST202,203..ATM

NO.2

 1
85420-21070

ST202..ATM..(CV,SS2,SS3)

NO.1

 1
85420-21090

ST202..ATM..(CV,SS2,SS3)

NO.2,DENSO

 2
85420-21100

ST202..ATM..(CV,SS2,SS3)

NO.2,AISIN

 2
85420D - RING, O (FOR TRANSMISSION SOLENOID)
96721-19017

ST202,203..LB..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=16.8

 3
90301-06004

ST202..ATM..(CV,SS2,SS3)

 6
90301-06005

ST202,203..LB..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=6.6

 3
90301-06005

ST202,203..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=6.6

 3
90301-06004

ST202,203..ATM

NO.1 & NO.2

 2
96721-19017

ST202,203..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=16.8

 1
90301-06005

ST202,203..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=6.6

 1
96721-19017

ST202,203..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=16.8

 3
85420D - RING, O (FOR TRANSMISSION SOLENOID)
96721-19017

ST202,203..LB..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=16.8

 3
90301-06004

ST202..ATM..(CV,SS2,SS3)

 6
90301-06005

ST202,203..LB..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=6.6

 3
90301-06005

ST202,203..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=6.6

 3
90301-06004

ST202,203..ATM

NO.1 & NO.2

 2
96721-19017

ST202,203..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=16.8

 1
90301-06005

ST202,203..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=6.6

 1
96721-19017

ST202,203..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=16.8

 3
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06005

ST202,203..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=6.6

 3
96721-19017

ST202,203..LB..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=16.8

 3
90301-06004

ST202..ATM..(CV,SS2,SS3)

 6
90301-06005

ST202,203..LB..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=6.6

 3
90301-06004

ST202,203..ATM

NO.1 & NO.2

 2
96721-19017

ST202,203..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=16.8

 1
90301-06005

ST202,203..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=6.6

 1
96721-19017

ST202,203..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=16.8

 3
85420D - RING, O (FOR TRANSMISSION SOLENOID)
96721-19017

ST202,203..LB..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=16.8

 3
90301-06004

ST202..ATM..(CV,SS2,SS3)

 6
90301-06005

ST202,203..LB..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=6.6

 3
90301-06005

ST202,203..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=6.6

 3
90301-06004

ST202,203..ATM

NO.1 & NO.2

 2
96721-19017

ST202,203..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=16.8

 1
90301-06005

ST202,203..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=6.6

 1
96721-19017

ST202,203..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=16.8

 3
Common parts
82821-20210
91611-60614

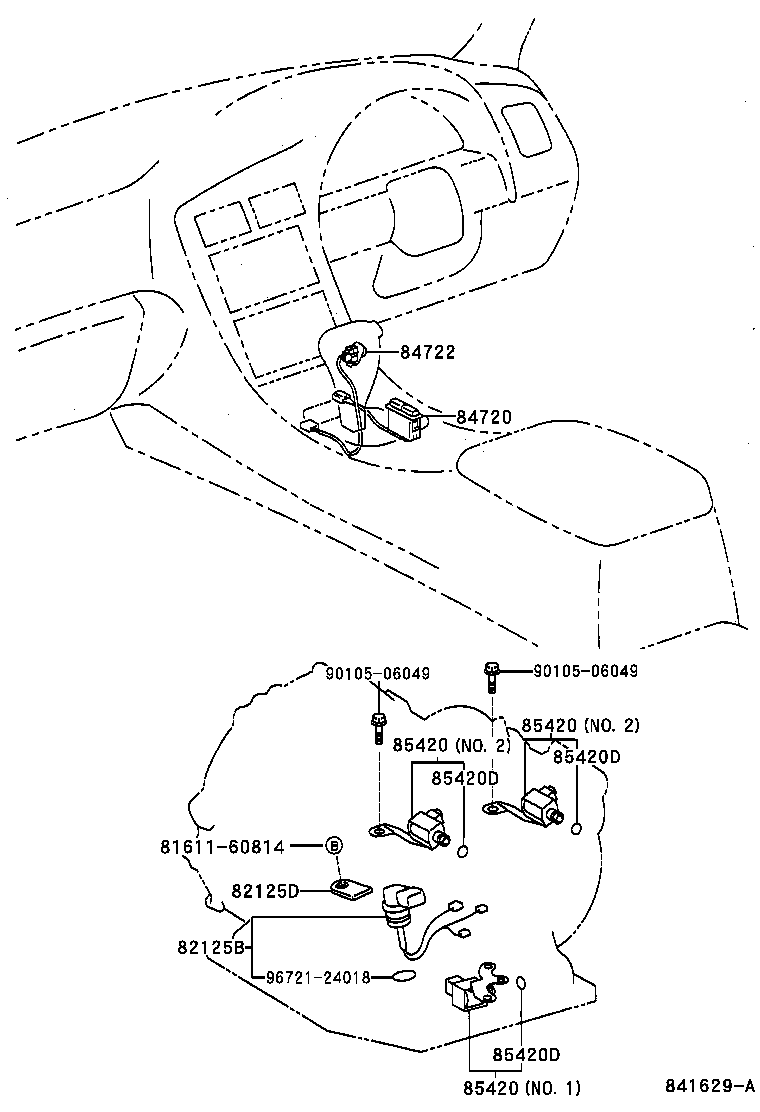

(9712- )ATM..CV,SS2,SS3

Click highlighted areas on diagram

diagram 82125B 82125D 84720 84722 85420 85420 85420 85420D 85420D 85420D 9010506049 9010506049 9672124018
Part # Description Qty Price
82125B - WIRE, TRANSMISSION
82125-20150

ST202,203..ATM

 1
82125-20220

ST202..ATM..(CV,SS2,SS3)

 1
82125D - PLATE, TRANSMISSION WIRE LOCK
33485-30020

ST202..ATM..(CV,SS2,SS3)

 1
33485-30020

ST202..ATM..(SS2,SS3)

 1
84720 - SWITCH ASSY, PATTERN SELECT
84720-20130

ST202,203..ATM

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-20130C0

ST202,203..ATM

BLACK,TRIM2#

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-20110

ST202..ATM..(CV,SS2)

 1
85420-20110

ST202,203..ATM

ﾛｯｸ ｱｯﾌﾟ

 1
85420-32021

ST202,203..ATM

NO.1

 1
85420-32140

ST202,203..ATM

NO.2

 1
85420-21070

ST202..ATM..(CV,SS2,SS3)

NO.1

 1
85420-21090

ST202..ATM..(CV,SS2,SS3)

NO.2,DENSO

 2
85420-21100

ST202..ATM..(CV,SS2,SS3)

NO.2,AISIN

 2
85420 - SOLENOID ASSY, TRANSMISSION
85420-20110

ST202..ATM..(CV,SS2)

 1
85420-20110

ST202,203..ATM

ﾛｯｸ ｱｯﾌﾟ

 1
85420-32021

ST202,203..ATM

NO.1

 1
85420-32140

ST202,203..ATM

NO.2

 1
85420-21070

ST202..ATM..(CV,SS2,SS3)

NO.1

 1
85420-21090

ST202..ATM..(CV,SS2,SS3)

NO.2,DENSO

 2
85420-21100

ST202..ATM..(CV,SS2,SS3)

NO.2,AISIN

 2
85420 - SOLENOID ASSY, TRANSMISSION
85420-20110

ST202..ATM..(CV,SS2)

 1
85420-20110

ST202,203..ATM

ﾛｯｸ ｱｯﾌﾟ

 1
85420-32021

ST202,203..ATM

NO.1

 1
85420-32140

ST202,203..ATM

NO.2

 1
85420-21070

ST202..ATM..(CV,SS2,SS3)

NO.1

 1
85420-21090

ST202..ATM..(CV,SS2,SS3)

NO.2,DENSO

 2
85420-21100

ST202..ATM..(CV,SS2,SS3)

NO.2,AISIN

 2
85420D - RING, O (FOR TRANSMISSION SOLENOID)
96721-19017

ST202,203..LB..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=16.8

 3
90301-06004

ST202..ATM..(CV,SS2,SS3)

 6
90301-06005

ST202,203..LB..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=6.6

 3
90301-06005

ST202,203..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=6.6

 3
90301-06004

ST202,203..ATM

NO.1 & NO.2

 2
96721-19017

ST202,203..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=16.8

 1
90301-06005

ST202,203..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=6.6

 1
96721-19017

ST202,203..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=16.8

 3
85420D - RING, O (FOR TRANSMISSION SOLENOID)
96721-19017

ST202,203..LB..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=16.8

 3
90301-06004

ST202..ATM..(CV,SS2,SS3)

 6
90301-06005

ST202,203..LB..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=6.6

 3
90301-06005

ST202,203..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=6.6

 3
90301-06004

ST202,203..ATM

NO.1 & NO.2

 2
96721-19017

ST202,203..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=16.8

 1
90301-06005

ST202,203..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=6.6

 1
96721-19017

ST202,203..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=16.8

 3
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06005

ST202,203..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=6.6

 3
96721-19017

ST202,203..LB..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=16.8

 3
90301-06004

ST202..ATM..(CV,SS2,SS3)

 6
90301-06005

ST202,203..LB..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=6.6

 3
90301-06004

ST202,203..ATM

NO.1 & NO.2

 2
96721-19017

ST202,203..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=16.8

 1
90301-06005

ST202,203..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=6.6

 1
96721-19017

ST202,203..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=16.8

 3
Common parts
90105-06049
96721-24018
