ST202-BLPVF (1993)
Toyota Celica

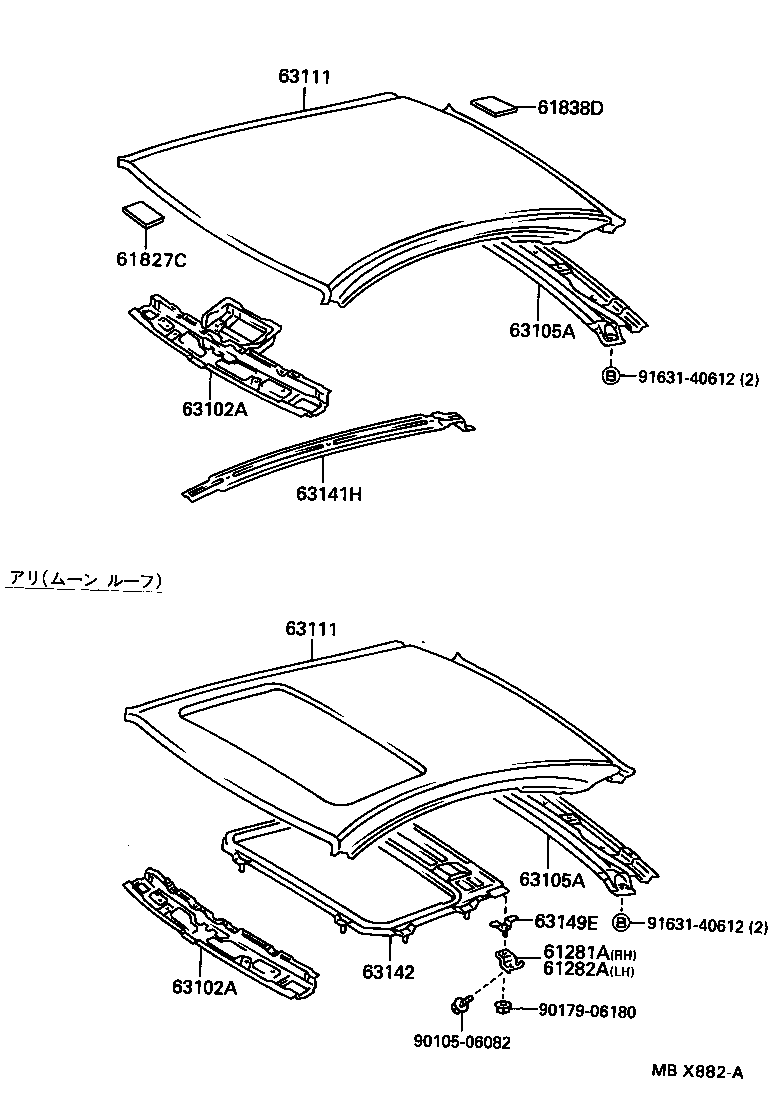

ILLUST NO. 1 OF 2(9309- )LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61281A - BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1 | ||||
| 61281-20050 |
ST20#..LB |
1 | ||
| 61281-20080 |
ST20# 厚さ=3.0 |
1 | ||
| 61281-20050 |
ST20# 厚さ=2.0 |
1 | ||
| 61282A - BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.2 | ||||
| 61282-20020 |
ST20#..LB |
1 | ||
| 61282-20030 |
ST20# 厚さ=3.0 |
1 | ||
| 61282-20020 |
ST20# 厚さ=2.0 |
1 | ||
| 61827C - PLATE, NOISE CONTROL, NO.4 | ||||
| 61827-20040 |
ST20#..LB |
2 | ||
| 61838D - PLATE, NOISE CONTROL, NO.5 | ||||
| 61838-20060 |
ST20#..LB |
2 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-20280 |
ST20#..LB |
1 | ||
| 63102-20290 |
ST20#..LB ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-20280 |
ST20#..LB |
1 | ||
| 63102-20290 |
ST20#..LB ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-20100 |
ST20#..LB |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-20100 |
ST20#..LB |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-20510 |
ST20#..LB |
1 | ||
| 63111-20520 |
ST20#..LB ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-20510 |
ST20#..LB |
1 | ||
| 63111-20520 |
ST20#..LB ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-20180 |
ST20#..LB |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-20090 |
ST20#..LB |
1 | ||
| 63149E - BRACKET, ROOF PANEL REINFORCEMENT, NO.2 | ||||
| 63149-20040 |
ST20#..LB |
2 | ||
| Common parts | ||||
| 90105-06082 | ||||
| 90179-06180 | ||||
| 91631-40612 | ||||
ILLUST NO. 2 OF 2(9309- )LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-20140 |
ST20#..LB *LAM,厚さ=4.76,ｸﾞﾚｰ |
1 | ||
| 63201-20160 |
ST20#..LB *TEM,厚さ=4.0,ｸﾞﾚｰ |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-20090 |
ST20#..LB |
1 | ||
| 63203-20091 |
ST20#..LB |
1 | ||
| 63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH | ||||
| 63207-20080 |
ST20#..LB |
1 | ||
| 63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH | ||||
| 63208-20080 |
ST20#..LB |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-20090 |
ST20#..LB |
1 | ||
| 63209-20091 |
ST20#..LB |
1 | ||
| 63214F - CHANNEL, ROOF DRIP, REAR | ||||
| 63214-20040 |
ST20#..LB |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-20050 |
ST20#..LB |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-12160 |
ST20#..LB ﾘﾔ |
2 | ||
| 63249-20280 |
ST20#..LB ﾌﾛﾝﾄ |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-12160 |
ST20#..LB ﾘﾔ |
2 | ||
| 63249-20280 |
ST20#..LB ﾌﾛﾝﾄ |
2 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-20080 |
ST20#..LB |
1 | ||
| 63219A - GARNISH, SLIDING ROOF, REAR | ||||
| 63219-20020 |
ST20#..LB |
1 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-20081 |
ST20#..LB |
1 | ||
| 63221-20080 |
ST20#..LB |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-20090 |
ST20#..LB |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-20090 |
ST20#..LB |
1 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-20100 |
ST20#..LB ﾘﾔ |
2 | ||
| 63241-20090 |
ST20#..LB ﾌﾛﾝﾄ |
2 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-20100 |
ST20#..LB ﾘﾔ |
2 | ||
| 63241-20090 |
ST20#..LB ﾌﾛﾝﾄ |
2 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-20100 |
ST20#..LB |
1 | ||
| 63252D - WEATHERSTRIP, SLIDING ROOF HOUSING | ||||
| 63252-20050 |
ST20#..LB |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-41010 |
ST20#..LB |
1 | ||
| 63260-20090 |
ST20# |
1 | ||
| 63265B - GEAR, SLIDING ROOF DRIVE | ||||
| 63265-20010 |
ST20#..LB |
1 | ||
| 63267A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, RH | ||||
| 63267-20060 |
ST20#..LB |
1 | ||
| 63268A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, LH | ||||
| 63268-20040 |
ST20#..LB |
1 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-20030 |
ST20#..LB 厚さ=1.0 |
1 | ||
| 63277-20050 |
ST20#..LB 厚さ=2.0 |
1 | ||
| 63625 - BLOCK, SLIDING ROOF GUIDE, RH | ||||
| 63625-20030 |
ST20#..LB |
1 | ||
| 63626 - BLOCK, SLIDING ROOF GUIDE, LH | ||||
| 63626-20030 |
ST20#..LB |
1 | ||
| 63635A - GARNISH, SLIDING ROOF, FRONT | ||||
| 63635-20020 |
ST20#..LB |
1 | ||
| 63699A - SEAL, SLIDING ROOF GUIDE RAIL | ||||
| 63699-20040 |
ST20#..LB |
1 | ||
| Common parts | ||||
| 90150-40010 | ||||
| 90150-50007 | ||||
| 90151-40024 | ||||
| 90151-50024 | ||||
| 90179-06069 | ||||
| 90179-06083 | ||||
| 90179-06276 | ||||
| 90467-14001 | ||||
| 90468-04128 | ||||
| 90468-06088 | ||||
| 91661-60616 | ||||
| 93385-16020 | ||||
| 93386-16025 | ||||
| 93560-54008 | ||||
| 96160-00400 | ||||
