ST202-BLPVF (1993)

Toyota Celica

Production Sep 1993 - Aug 1999
Engine 3SGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9712- )

Click highlighted areas on diagram

3-SPOKE

diagram 45100 45130 45201P 9014860007 9014860007
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-2B310C0

ST202,205..GT4,SS2,SS3

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#

 1
45100-2B260C0

ST202,205..GT4,SS2,SS3

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｱﾘ(*80;ｳﾝﾃﾝｾｷ),BLACK,TRIM2#

 1
45100-2B360C0

ST202,205..CV,GT4,SS2

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#

 1
45100-2B480C0

ST202,205..GT4,SS2,SS3

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｱﾘ(*80;ｳﾝﾃﾝｾｷ & *80;ｼﾞﾖｼﾕｾｷ),BLACK,TRIM2#

 1
45100-12891C1

ST20#..CV,GT4,SS2,SS3

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK / RED,TRIM2#

 1
45100-2B610C0

ST202,205..CV,GT4,SS2,SS3

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLACK,TRIM2#

 1
45130 - BUTTON ASSY, HORN
45130-2B230C0

ST20#..LB

ｱﾘ(*80;ｳﾝﾃﾝｾｷ & *80;ｼﾞﾖｼﾕｾｷ),BLACK,TRIM2#

 1
45130-2B270C0

ST202,205..CV,GT4,SS2,SS3

ｱﾘ(3-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),BLACK,TRIM2#

 1
45130-2B270C0

ST202,205;ST203..MTM

ｱﾘ(3-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),BLACK,TRIM2#

 1
45130-42020C0

ST202..ATM..SS2;ST202,203..CV,SS1,SS3

ｱﾘ(*80;ｳﾝﾃﾝｾｷ),BLACK,TRIM2#

 1
45130-14360C0

ST20#

BLACK,TRIM2#

 1
45130-2B290C0

ST20#

ｱﾘ(*80;ｳﾝﾃﾝｾｷ),BLACK,TRIM2#

 1
45130-2B230C0

ST20#

ｱﾘ(*80;ｳﾝﾃﾝｾｷ & *80;ｼﾞﾖｼﾕｾｷ),BLACK,TRIM2#

 1
45130-42020C0

ST202..ATM..SS2;ST202,203..SS1,SS3

ｱﾘ(*80;ｳﾝﾃﾝｾｷ),BLACK,TRIM2#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

ST20#

 1
Common parts
90148-60007

(9309-9606) ; (9606-9712)CV

Click highlighted areas on diagram

ｱﾘ(ｷｶｲｼｷ*80,ｳﾝﾃﾝｾｷ)

diagram 45100 45129 45130 45131 45146 45146 45186 45187 45201P 9014860007
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-2B310C0

ST202,205..GT4,SS2,SS3

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#

 1
45100-2B260C0

ST202,205..GT4,SS2,SS3

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｱﾘ(*80;ｳﾝﾃﾝｾｷ),BLACK,TRIM2#

 1
45100-2B360C0

ST202,205..CV,GT4,SS2

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#

 1
45100-2B480C0

ST202,205..GT4,SS2,SS3

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｱﾘ(*80;ｳﾝﾃﾝｾｷ & *80;ｼﾞﾖｼﾕｾｷ),BLACK,TRIM2#

 1
45100-12891C1

ST20#..CV,GT4,SS2,SS3

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK / RED,TRIM2#

 1
45100-2B610C0

ST202,205..CV,GT4,SS2,SS3

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLACK,TRIM2#

 1
45129 - BUTTON, HORN, NO.2
45129-20130C0

ST20#

BLACK,TRIM2#

 1
45130 - BUTTON ASSY, HORN
45130-2B230C0

ST20#..LB

ｱﾘ(*80;ｳﾝﾃﾝｾｷ & *80;ｼﾞﾖｼﾕｾｷ),BLACK,TRIM2#

 1
45130-2B270C0

ST202,205..CV,GT4,SS2,SS3

ｱﾘ(3-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),BLACK,TRIM2#

 1
45130-2B270C0

ST202,205;ST203..MTM

ｱﾘ(3-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),BLACK,TRIM2#

 1
45130-42020C0

ST202..ATM..SS2;ST202,203..CV,SS1,SS3

ｱﾘ(*80;ｳﾝﾃﾝｾｷ),BLACK,TRIM2#

 1
45130-14360C0

ST20#

BLACK,TRIM2#

 1
45130-2B290C0

ST20#

ｱﾘ(*80;ｳﾝﾃﾝｾｷ),BLACK,TRIM2#

 1
45130-2B230C0

ST20#

ｱﾘ(*80;ｳﾝﾃﾝｾｷ & *80;ｼﾞﾖｼﾕｾｷ),BLACK,TRIM2#

 1
45130-42020C0

ST202..ATM..SS2;ST202,203..SS1,SS3

ｱﾘ(*80;ｳﾝﾃﾝｾｷ),BLACK,TRIM2#

 1
45131 - BUTTON, HORN, NO.1
45131-20250C0

ST20#

BLACK,TRIM2#

 1
45146 - SPRING, HORN BUTTON CONTACT
45146-20260

ST20#

 2
45146 - SPRING, HORN BUTTON CONTACT
45146-20260

ST20#

 2
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-20050C0

ST20#

BLACK,TRIM2#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-20050C0

ST20#..LB

ｱﾘ(*80;ｳﾝﾃﾝｾｷ & *80;ｼﾞﾖｼﾕｾｷ),BLACK,TRIM2#

 1
45187-20040C0

ST20#

ｱﾘ(*80;ｳﾝﾃﾝｾｷ),BLACK,TRIM2#

 1
45187-20050C0

ST20#

ｱﾘ(*80;ｳﾝﾃﾝｾｷ & *80;ｼﾞﾖｼﾕｾｷ),BLACK,TRIM2#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

ST20#

 1
Common parts
90148-60007

(9508-9512) ; (9512-9712)LB

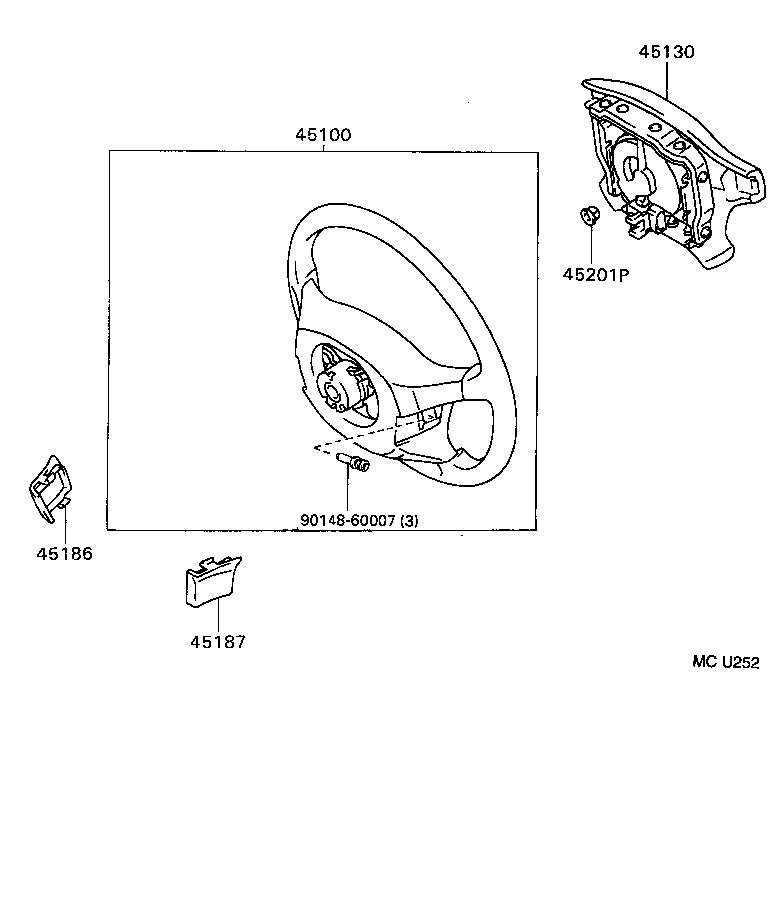

Click highlighted areas on diagram

ｱﾘ(ﾃﾞﾝｷｼｷ*80,ｳﾝﾃﾝｾｷ&ｼﾞﾖｼﾕｾｷ)

diagram 45100 45130 45186 45187 45201P 9014860007
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-2B310C0

ST202,205..GT4,SS2,SS3

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#

 1
45100-2B260C0

ST202,205..GT4,SS2,SS3

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｱﾘ(*80;ｳﾝﾃﾝｾｷ),BLACK,TRIM2#

 1
45100-2B360C0

ST202,205..CV,GT4,SS2

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#

 1
45100-2B480C0

ST202,205..GT4,SS2,SS3

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｱﾘ(*80;ｳﾝﾃﾝｾｷ & *80;ｼﾞﾖｼﾕｾｷ),BLACK,TRIM2#

 1
45100-12891C1

ST20#..CV,GT4,SS2,SS3

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK / RED,TRIM2#

 1
45100-2B610C0

ST202,205..CV,GT4,SS2,SS3

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLACK,TRIM2#

 1
45130 - BUTTON ASSY, HORN
45130-2B230C0

ST20#..LB

ｱﾘ(*80;ｳﾝﾃﾝｾｷ & *80;ｼﾞﾖｼﾕｾｷ),BLACK,TRIM2#

 1
45130-2B270C0

ST202,205..CV,GT4,SS2,SS3

ｱﾘ(3-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),BLACK,TRIM2#

 1
45130-2B270C0

ST202,205;ST203..MTM

ｱﾘ(3-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),BLACK,TRIM2#

 1
45130-42020C0

ST202..ATM..SS2;ST202,203..CV,SS1,SS3

ｱﾘ(*80;ｳﾝﾃﾝｾｷ),BLACK,TRIM2#

 1
45130-14360C0

ST20#

BLACK,TRIM2#

 1
45130-2B290C0

ST20#

ｱﾘ(*80;ｳﾝﾃﾝｾｷ),BLACK,TRIM2#

 1
45130-2B230C0

ST20#

ｱﾘ(*80;ｳﾝﾃﾝｾｷ & *80;ｼﾞﾖｼﾕｾｷ),BLACK,TRIM2#

 1
45130-42020C0

ST202..ATM..SS2;ST202,203..SS1,SS3

ｱﾘ(*80;ｳﾝﾃﾝｾｷ),BLACK,TRIM2#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-20050C0

ST20#

BLACK,TRIM2#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-20050C0

ST20#..LB

ｱﾘ(*80;ｳﾝﾃﾝｾｷ & *80;ｼﾞﾖｼﾕｾｷ),BLACK,TRIM2#

 1
45187-20040C0

ST20#

ｱﾘ(*80;ｳﾝﾃﾝｾｷ),BLACK,TRIM2#

 1
45187-20050C0

ST20#

ｱﾘ(*80;ｳﾝﾃﾝｾｷ & *80;ｼﾞﾖｼﾕｾｷ),BLACK,TRIM2#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

ST20#

 1
Common parts
90148-60007

(9309-9508) ; (9508-9606)CV,GT4,SS2,SS3

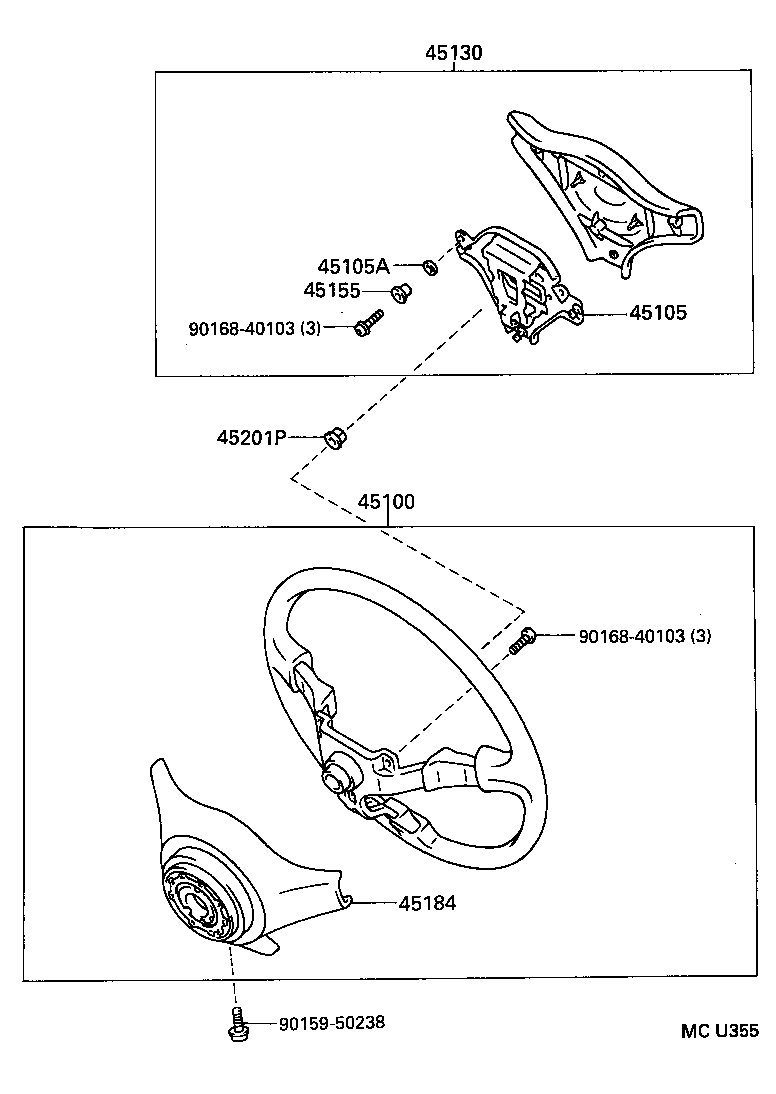

Click highlighted areas on diagram

3-SPOKE

diagram 45100 45105 45105A 45130 45155 45184 45201P 9015950238 9016840103 9016840103
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-2B310C0

ST202,205..GT4,SS2,SS3

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#

 1
45100-2B260C0

ST202,205..GT4,SS2,SS3

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｱﾘ(*80;ｳﾝﾃﾝｾｷ),BLACK,TRIM2#

 1
45100-2B360C0

ST202,205..CV,GT4,SS2

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#

 1
45100-2B480C0

ST202,205..GT4,SS2,SS3

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｱﾘ(*80;ｳﾝﾃﾝｾｷ & *80;ｼﾞﾖｼﾕｾｷ),BLACK,TRIM2#

 1
45100-12891C1

ST20#..CV,GT4,SS2,SS3

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK / RED,TRIM2#

 1
45100-2B610C0

ST202,205..CV,GT4,SS2,SS3

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLACK,TRIM2#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-20500

ST202,205;ST203..MTM

 1
45105-20500

ST202,205..CV,GT4,SS2,SS3

 1
45105A - CUSHION(FOR HORN BUTTON CONTACT PLATE)
90540-08014

ST20#

 3
90540-08014

ST202,205..CV,GT4,SS2,SS3

 3
45130 - BUTTON ASSY, HORN
45130-2B230C0

ST20#..LB

ｱﾘ(*80;ｳﾝﾃﾝｾｷ & *80;ｼﾞﾖｼﾕｾｷ),BLACK,TRIM2#

 1
45130-2B270C0

ST202,205..CV,GT4,SS2,SS3

ｱﾘ(3-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),BLACK,TRIM2#

 1
45130-2B270C0

ST202,205;ST203..MTM

ｱﾘ(3-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),BLACK,TRIM2#

 1
45130-42020C0

ST202..ATM..SS2;ST202,203..CV,SS1,SS3

ｱﾘ(*80;ｳﾝﾃﾝｾｷ),BLACK,TRIM2#

 1
45130-14360C0

ST20#

BLACK,TRIM2#

 1
45130-2B290C0

ST20#

ｱﾘ(*80;ｳﾝﾃﾝｾｷ),BLACK,TRIM2#

 1
45130-2B230C0

ST20#

ｱﾘ(*80;ｳﾝﾃﾝｾｷ & *80;ｼﾞﾖｼﾕｾｷ),BLACK,TRIM2#

 1
45130-42020C0

ST202..ATM..SS2;ST202,203..SS1,SS3

ｱﾘ(*80;ｳﾝﾃﾝｾｷ),BLACK,TRIM2#

 1
45155 - SPACER, HORN BUTTON CONTACT PLATE
45155-22040

ST202,205..CV,GT4,SS2,SS3

 3
45155-22040

ST20#

 3
45184 - COVER, STEERING WHEEL BOSS, LOWER
45180-20270C0

ST202,205;ST203..MTM

BLACK,TRIM2#

 1
45180-20270C0

ST202,205..CV,GT4,SS2,SS3

BLACK,TRIM2#

 1
45180-20270C0

ST202,205;ST203..MTM

BLACK,TRIM2#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

ST20#

 1
Common parts
90159-50238
90168-40103
