ST202-BLMZF (1995)
Toyota Celica

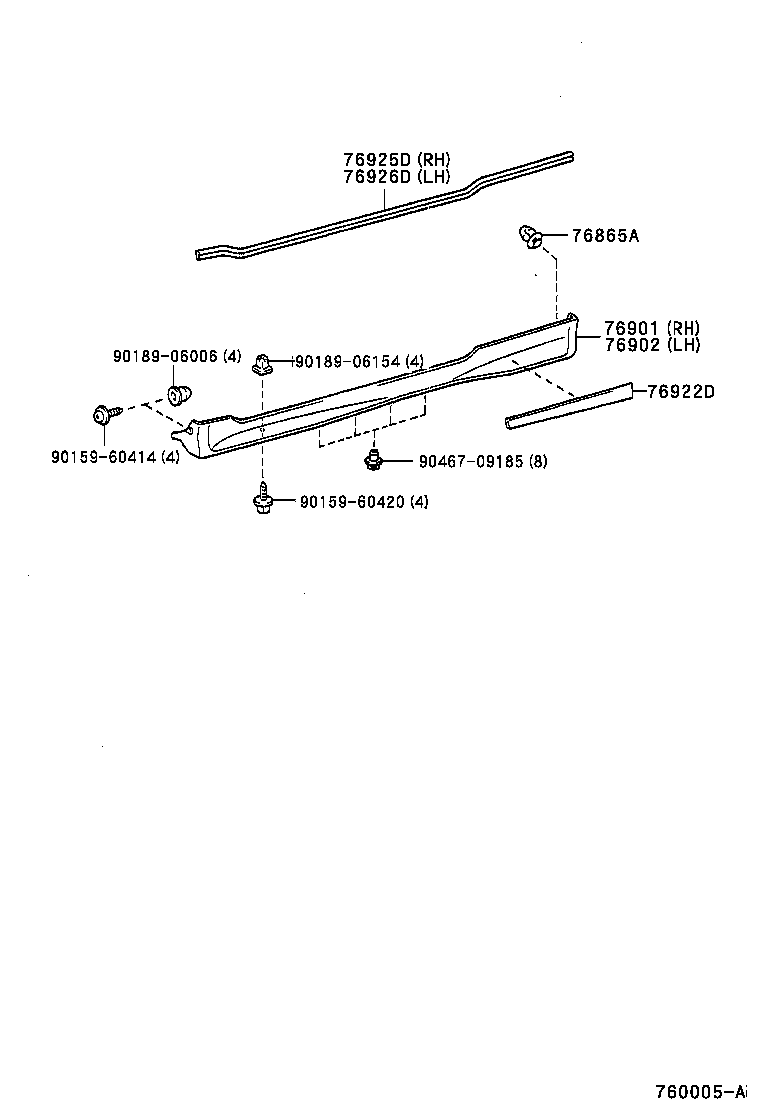

ILLUST NO. 2 OF 2(9508- )LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76865A - RETAINER, SIDE MUDGUARD | ||||
| 90467-10162 |
ST20#..GT4,SS2,SS3 |
18 | ||
| 90467-10162 |
ST202,205..GT4,SS3 |
18 | ||
| 76901 - MUDGUARD SUB-ASSY, SIDE, RH | ||||
| 76911-20900 |
ST202,205..GT4,SS3 |
1 | ||
| 76911-20900 |
ST20#..GT4,SS2,SS3 |
1 | ||
| 76902 - MUDGUARD SUB-ASSY, SIDE, LH | ||||
| 76912-20900 |
ST20#..GT4,SS2,SS3 |
1 | ||
| 76912-20900 |
ST202,205..GT4,SS3 |
1 | ||
| 76922D - PROTECTOR, SIDE MUDGUARD, NO.2 | ||||
| 76922-20050 |
ST20#..GT4,SS2,SS3 |
2 | ||
| 76922-20050 |
ST202,205..GT4,SS3 |
2 | ||
| 76925D - PROTECTOR, SIDE MUDGUARD, RH | ||||
| 76925-20020D0 |
ST202,205..GT4,SS3 RED,3L2 |
1 | ||
| 76925-20020C0 |
ST202,205..GT4,SS3 BLACK,183 ,202 ,6M1 |
1 | ||
| 76925-20020D0 |
ST20#..GT4,SS2,SS3 RED,3L2 |
1 | ||
| 76925-20020B1 |
ST20#..GT4,SS2,SS3 GRAY,199 ,6R0 |
1 | ||
| 76925-20020B1 |
ST20#..GT4,SS2,SS3 GRAY,199 |
1 | ||
| 76925-20020C0 |
ST20#..GT4,SS2,SS3 BLACK,202 ,8L5 |
1 | ||
| 76925-20020B0 |
ST202,205..GT4,SS3 GRAY,199 |
1 | ||
| 76925-20020A0 |
ST20#..GT4,SS2,SS3 WHITE,040 |
1 | ||
| 76925-20020A0 |
ST202,205..GT4,SS3 WHITE,040 |
1 | ||
| 76926D - PROTECTOR, SIDE MUDGUARD, LH | ||||
| 76925-20020B0 |
ST202,205..GT4,SS3 GRAY,199 |
1 | ||
| 76925-20020D0 |
ST20#..GT4,SS2,SS3 RED,3L2 |
1 | ||
| 76925-20020A0 |
ST20#..GT4,SS2,SS3 WHITE,040 |
1 | ||
| 76925-20020C0 |
ST202,205..GT4,SS3 BLACK,183 ,202 ,6M1 |
1 | ||
| 76925-20020B1 |
ST20#..GT4,SS2,SS3 GRAY,199 ,6R0 |
1 | ||
| 76925-20020B1 |
ST20#..GT4,SS2,SS3 GRAY,199 |
1 | ||
| 76925-20020D0 |
ST202,205..GT4,SS3 RED,3L2 |
1 | ||
| 76925-20020A0 |
ST202,205..GT4,SS3 WHITE,040 |
1 | ||
| 76925-20020C0 |
ST20#..GT4,SS2,SS3 BLACK,202 ,8L5 |
1 | ||
| Common parts | ||||
| 90159-60414 | ||||
| 90159-60420 | ||||
| 90189-06006 | ||||
| 90189-06154 | ||||
| 90467-09185 | ||||

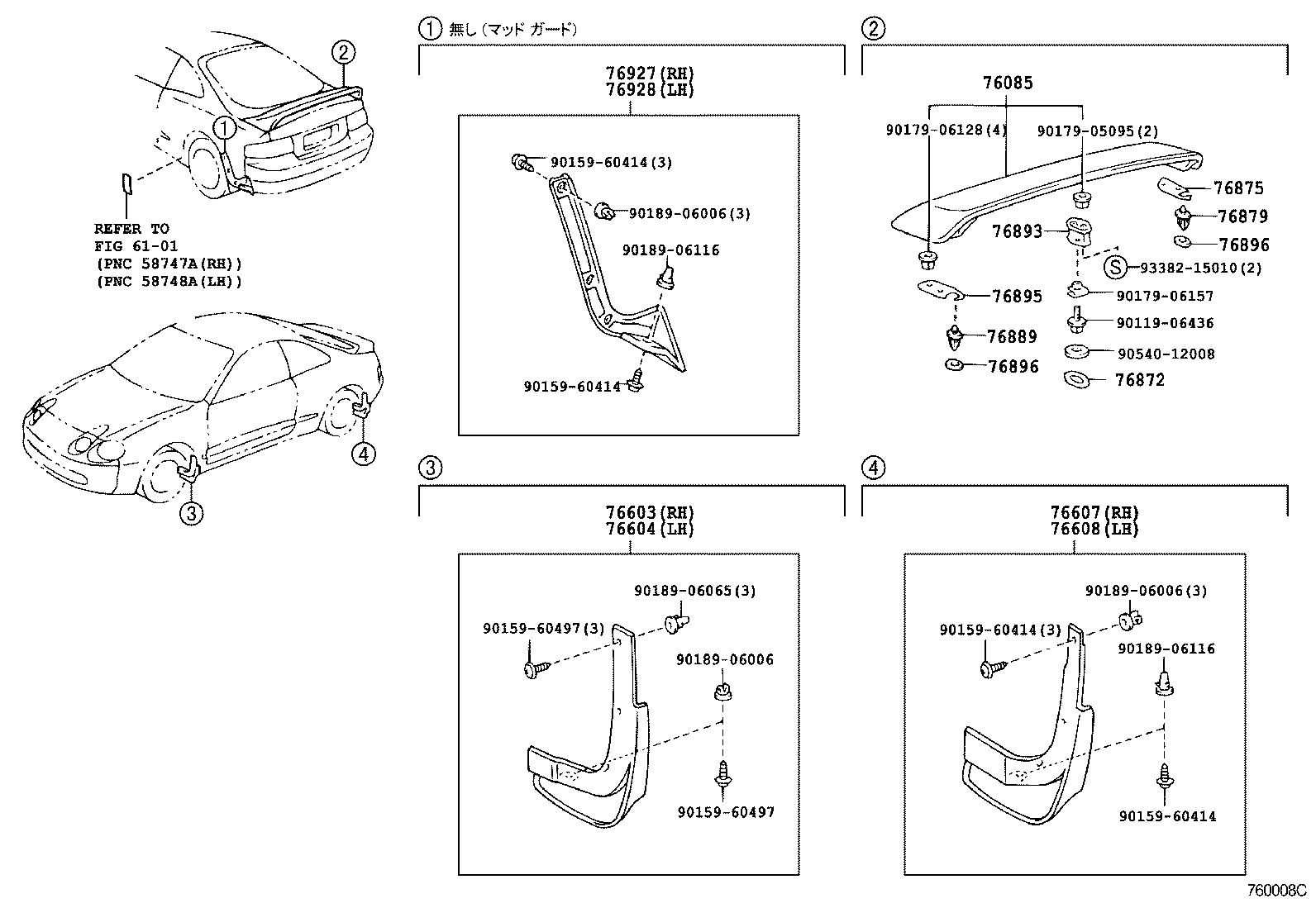

ILLUST NO. 1 OF 2(9508-9712)LB ; (9712- )SS1,SS2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76085 - SPOILER SUB-ASSY, REAR | ||||
| 76085-20915 |
ST20#..LB |
1 | ||
| 76871-20911 |
ST20#..LB |
1 | ||
| 76870-20916 |
ST20#..GT4,SS3 |
1 | ||
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 76621-29165 |
ST20#..LB |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 76622-29165 |
ST20#..LB |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76625-29195 |
ST20# |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76626-29195 |
ST20# |
1 | ||
| 76872 - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-20150 |
ST20#..LB |
1 | ||
| 76875 - PROTECTOR, REAR SPOILER, NO.4 | ||||
| 76875-20080 |
ST20#..LB |
1 | ||
| 76879 - CLIP, REAR SPOILER, NO.1 | ||||
| 76879-20060 |
ST20#..LB |
1 | ||
| 76889 - CLIP, REAR SPOILER, NO.2 | ||||
| 76889-20060 |
ST20#..LB |
1 | ||
| 76893 - COVER, REAR SPOILER, NO.1 | ||||
| 76893-20900 |
ST20#..LB |
1 | ||
| 76895 - PROTECTOR, REAR SPOILER, NO.5 | ||||
| 76875-20080 |
ST20#..LB |
1 | ||
| 76896 - PROTECTOR, REAR SPOILER, NO.6 | ||||
| 76896-20060 |
ST20#..LB |
2 | ||
| 76896 - PROTECTOR, REAR SPOILER, NO.6 | ||||
| 76896-20060 |
ST20#..LB |
2 | ||
| 76927 - PROTECTER, REAR MUDGUARD, RH | ||||
| 76927-29015 |
ST20# |
1 | ||
| 76928 - PROTECTER, REAR MUDGUARD, LH | ||||
| 76928-29015 |
ST20# |
1 | ||
| Common parts | ||||
| 90119-06436 | ||||
| 90159-60414 | ||||
| 90159-60497 | ||||
| 90179-05095 | ||||
| 90179-06128 | ||||
| 90179-06157 | ||||
| 90189-06006 | ||||
| 90189-06065 | ||||
| 90189-06116 | ||||
| 90540-12008 | ||||
| 93382-15010 | ||||
| Linked diagrams | ||||
| 6101 | ||||
