ST202-BLMZF (1995)

Toyota Celica

Production Aug 1995 - Aug 1999
Engine 3SGE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

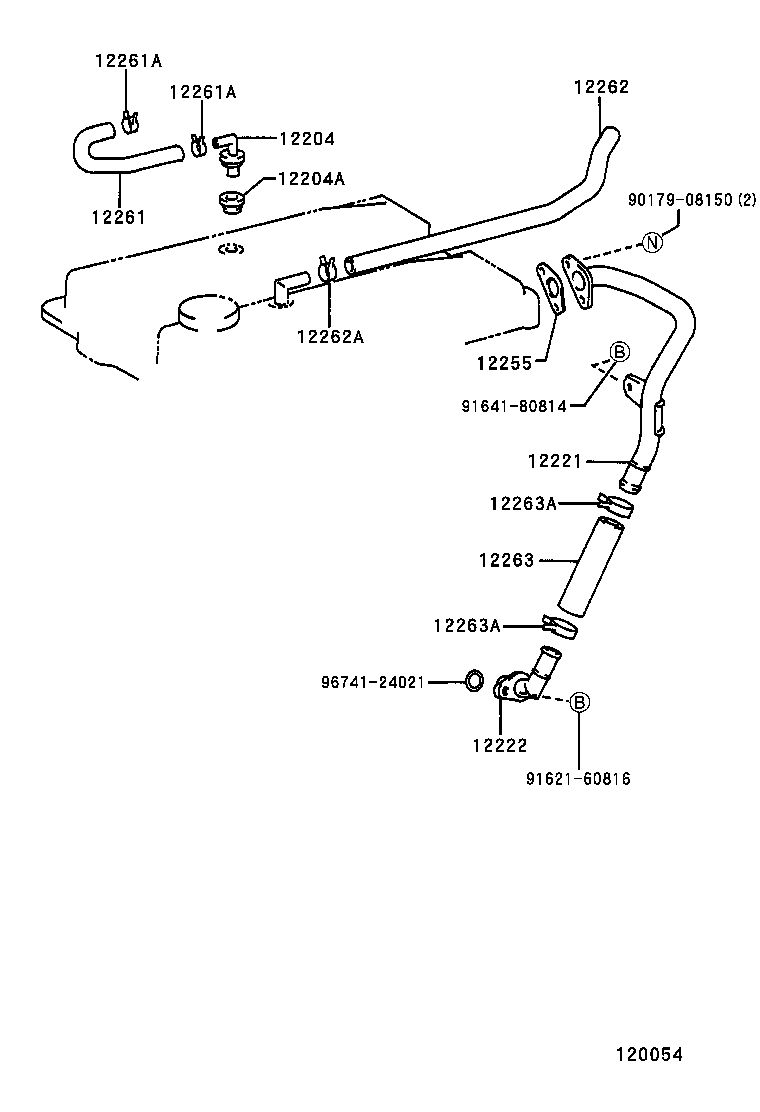

(9712- )3SGE

Click highlighted areas on diagram

diagram 12204 12204A 12221 12222 12255 12261 12261A 12261A 12262 12262A 12263 12263A 12263A 9017908150 9162160816 9164180814 9674124021
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-88460

3SGE..ST202

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18008

3SG#..ST202,205

 1
12221 - TUBE, VENTILATION NO.1
12221-88560

3SGE..ST202

 1
12222 - TUBE, VENTILATION, NO.2
12222-88560

3SGE..ST202

 1
12255 - GASKET, VENTILATION
12255-88560

3SGE..ST202

 1
12261 - HOSE, VENTILATION
12261-88461

3SGE..ST202

 1
12261-88460

3SGE..ST202

 1
12261-88560

3SGE..ST202

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14037

3SG#..ST202,205

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14037

3SG#..ST202,205

 2
12262 - HOSE, VENTILATION, NO.2
12262-88460

3SGE..ST202

 1
12262-88561

3SGE..ST202

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-19012

3SGE..ST202

 1
12263 - HOSE, VENTILATION, NO.3
12263-88561

3SGE..ST202

 1
12263A - CLIP(FOR VENTILATION HOSE)
90467-26007

3SGE..ST202

 2
12263A - CLIP(FOR VENTILATION HOSE)
90467-26007

3SGE..ST202

 2
Common parts
90179-08150
91621-60816
91641-80814
96741-24021

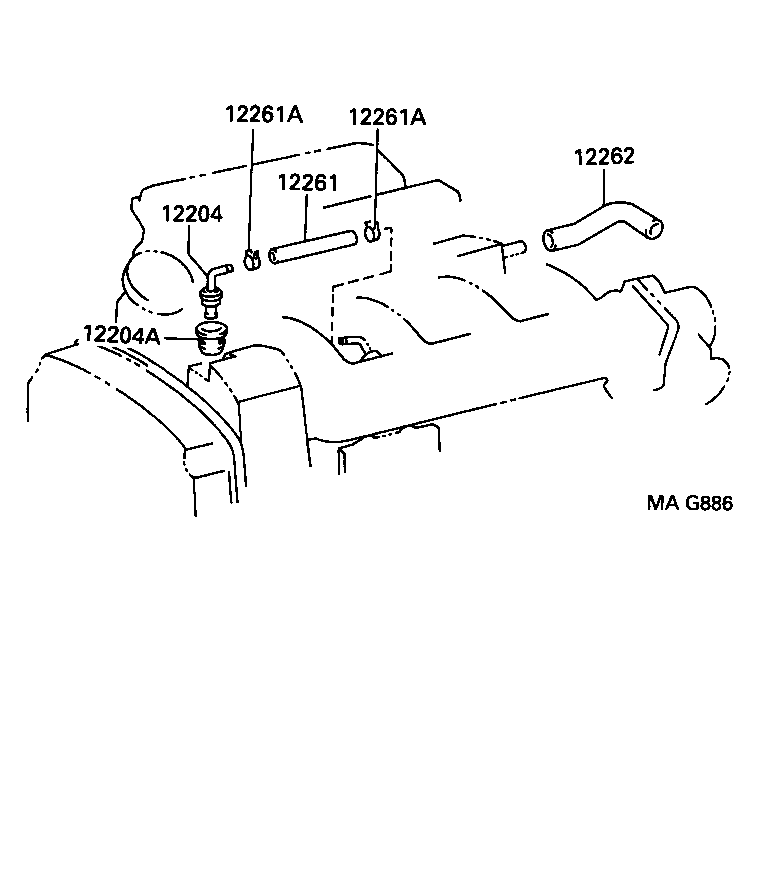

(9309-9712)3SGE

Click highlighted areas on diagram

diagram 12204 12204A 12261 12261A 12261A 12262
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-88460

3SGE..ST202

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18008

3SG#..ST202,205

 1
12261 - HOSE, VENTILATION
12261-88461

3SGE..ST202

 1
12261-88460

3SGE..ST202

 1
12261-88560

3SGE..ST202

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14037

3SG#..ST202,205

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14037

3SG#..ST202,205

 2
12262 - HOSE, VENTILATION, NO.2
12262-88460

3SGE..ST202

 1
12262-88561

3SGE..ST202

 1
