ST202-BLMVF (1993)
Toyota Celica
Production
Sep 1993
-
Aug 1999
Engine
3SGE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9309-9508)SS2 ; (9408-9512)CV
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-88561 |
ST202..CV,SS2,SS3 |
1 | ||
| 78024-88460 |
ST202..CV,SS2,SS3 |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-26054 |
ST20#..MTM |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-20030 |
ST20# |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-18050 |
ST20# |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
ST20# |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-20590 |
ST20#..MTM |
1 | ||
| 78120-20630 |
ST20#..MTM |
1 | ||
| 78120-20630 |
ST20#..LB..MTM |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-2D250 |
ST202..CV,SS2 |
1 | ||
| 78180-2D130 |
ST202..SS2,SS3 |
1 | ||
| 78180-2D130 |
ST202..CV,SS2,SS3 |
1 | ||
| 78180-2D710 |
ST202..CV,SS2,SS3 |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-20310 |
ST20# |
1 | ||
| 78183-20330 |
ST20# |
1 | ||
| 78193A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.3 | ||||
| 78193-88560 |
ST202..CV,SS2,SS3 |
1 | ||
| 78193-88460 |
ST202..CV,SS2,SS3 |
1 | ||
| Common parts | ||||
| 90119-06141 | ||||
| 90119-06311 | ||||
| 91512-B0610 | ||||
| 91512-G0614 | ||||
| 91651-40622 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
(9508- )SS2,SS3 ; (9512- )CV

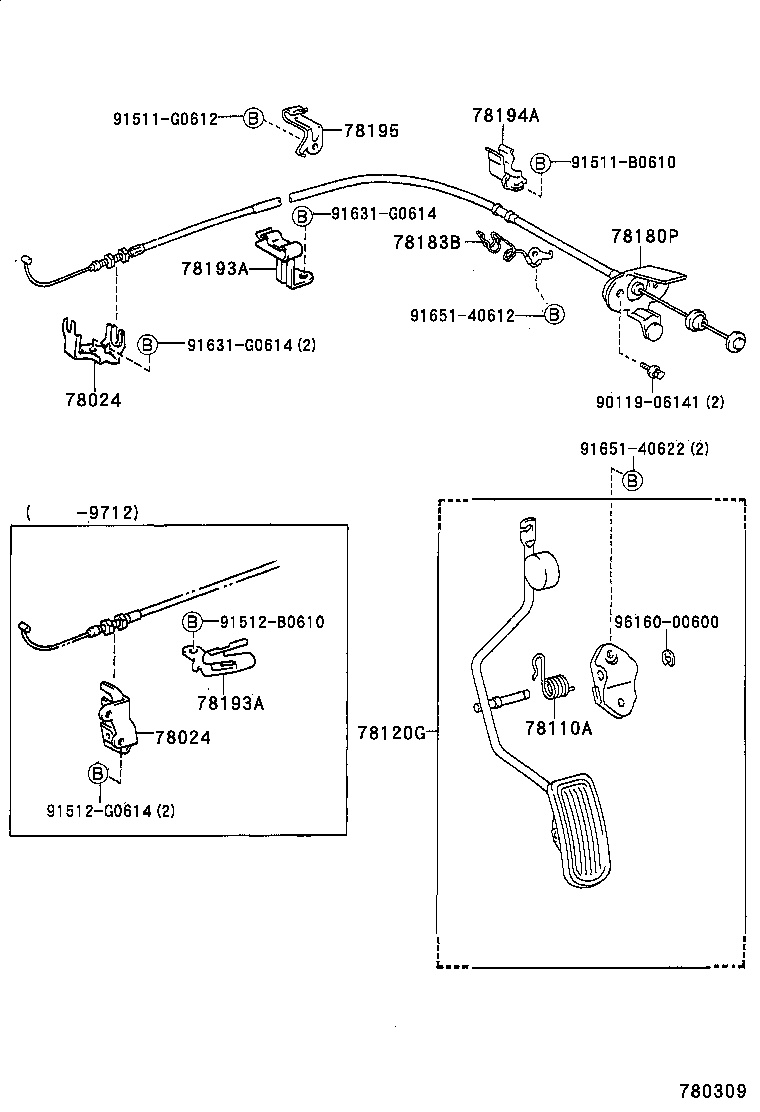

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-88561 |
ST202..CV,SS2,SS3 |
1 | ||
| 78024-88460 |
ST202..CV,SS2,SS3 |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-88561 |
ST202..CV,SS2,SS3 |
1 | ||
| 78024-88460 |
ST202..CV,SS2,SS3 |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-26054 |
ST20#..MTM |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-20590 |
ST20#..MTM |
1 | ||
| 78120-20630 |
ST20#..MTM |
1 | ||
| 78120-20630 |
ST20#..LB..MTM |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-2D250 |
ST202..CV,SS2 |
1 | ||
| 78180-2D130 |
ST202..SS2,SS3 |
1 | ||
| 78180-2D130 |
ST202..CV,SS2,SS3 |
1 | ||
| 78180-2D710 |
ST202..CV,SS2,SS3 |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-20310 |
ST20# |
1 | ||
| 78183-20330 |
ST20# |
1 | ||
| 78193A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.3 | ||||
| 78193-88560 |
ST202..CV,SS2,SS3 |
1 | ||
| 78193-88460 |
ST202..CV,SS2,SS3 |
1 | ||
| 78193A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.3 | ||||
| 78193-88560 |
ST202..CV,SS2,SS3 |
1 | ||
| 78193-88460 |
ST202..CV,SS2,SS3 |
1 | ||
| Common parts | ||||
| 90119-06141 | ||||
| 91511-B0610 | ||||
| 91511-G0612 | ||||
| 91512-B0610 | ||||
| 91512-G0614 | ||||
| 91631-G0614 | ||||
| 91651-40612 | ||||
| 91651-40622 | ||||
| 96160-00600 | ||||
