ST202-BLMGK (1993)

Toyota Celica

Production Sep 1993 - Aug 1999
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9309- )

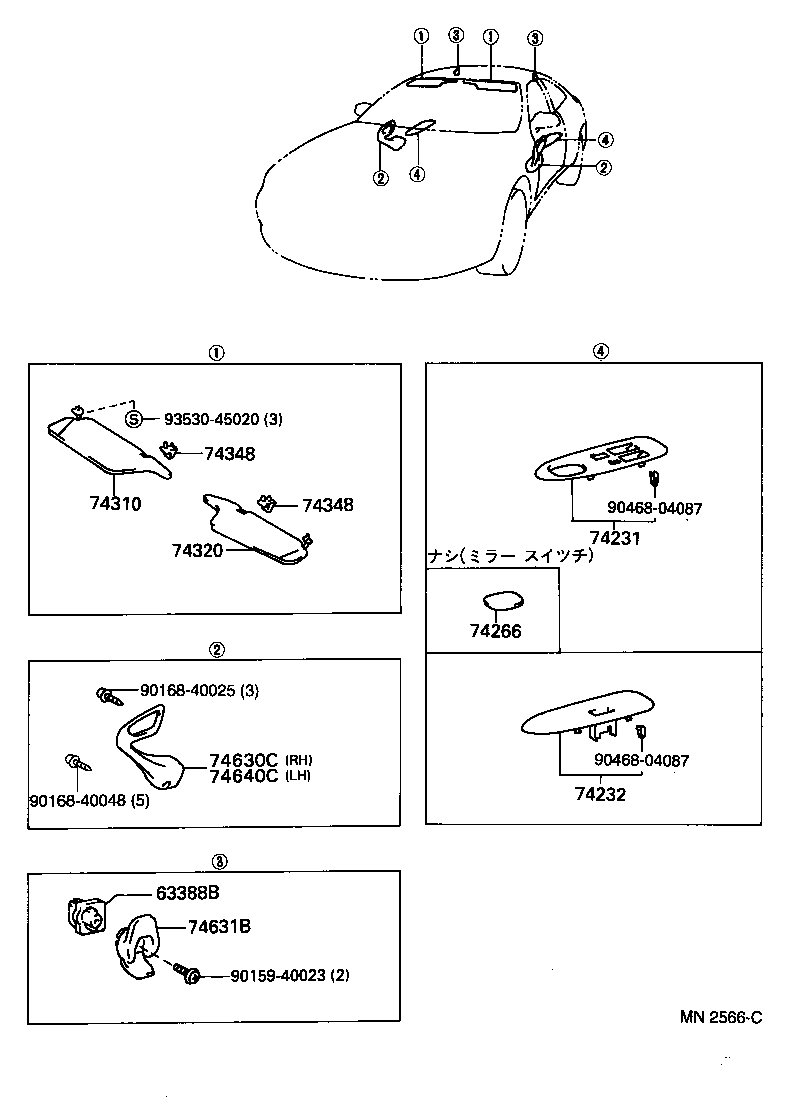

Click highlighted areas on diagram

diagram 63388B 74231 74232 74266 74310 74320 74348 74348 74630C 74631B 74640C 9015940023 9016840025 9016840048 9046804087 9046804087 9353045020
Part # Description Qty Price
63388B - STOPPER, ROOF HEADLINING TRIM CLIP
63388-20030

ST20#..LB

 2
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-20380C0

ST20#

BLACK,TRIM2#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-20260C0

ST20#

BLACK,TRIM2#

 1
74266 - CAP, DOOR ARMREST, RH
74266-20070C0

ST20#

BLACK,TRIM2#

 1
74310 - VISOR ASSY, RH
74310-2B420B0

ST20#

SHADOW GRAY,TRIM2#

 1
74310-2B421B1

ST20#..LB

LT. GRAY,TRIM2#

 1
74310-2B841B0

ST20#..LB

LT. GRAY,TRIM2#

 1
74310-2B420B1

ST20#..LB

LT. GRAY,TRIM2#

 1
74310-2B740B0

ST20#..LB

LT. GRAY,TRIM2#

 1
74310-2B840B0

ST20#..LB

LT. GRAY,TRIM2#

 1
74310-2D160B0

ST20#..LB

LT. GRAY,TRIM2#

 1
74320 - VISOR ASSY, LH
74320-2B291B1

ST20#..LB

LT. GRAY,TRIM2#

 1
74320-2B290B0

ST20#

SHADOW GRAY,TRIM2#

 1
74320-2B720B0

ST20#..LB

LT. GRAY,TRIM2#

 1
74320-2B290B1

ST20#..LB

LT. GRAY,TRIM2#

 1
74320-2B291B2

ST20#..LB

LT. GRAY,TRIM2#

 1
74320-2B600B0

ST20#..LB

ｱﾘ(*80;ｳﾝﾃﾝｾｷ & *80;ｼﾞﾖｼﾕｾｷ),LT. GRAY,TRIM2#

 1
74320-2B721B0

ST20#..LB

LT. GRAY,TRIM2#

 1
74320-2B880B0

ST20#..LB

LT. GRAY,TRIM2#

 1
74348 - HOLDER, VISOR
74348-22020B2

ST20#..LB

LI. GRAY,TRIM2#

 2
74348-22020B6

ST20#..LB

LT.GRAY,TRIM2#

 2
74348 - HOLDER, VISOR
74348-22020B2

ST20#..LB

LI. GRAY,TRIM2#

 2
74348-22020B6

ST20#..LB

LT.GRAY,TRIM2#

 2
74630C - GRIP ASSY, DOOR ASSIST, RH
74630-20070C0

ST20#

BLACK,TRIM2#

 1
74631B - HOOK, COAT
74631-2006022

ST20#..LB

BLACK,TRIM2#

 2
74640C - GRIP ASSY, DOOR ASSIST, LH
74640-20070C0

ST20#

SHADOW GRAY,TRIM2#

 1
Common parts
90159-40023
90168-40025
90168-40048
90468-04087
93530-45020
