ST202-BLMGK (1993)

Toyota Celica

Production Sep 1993 - Aug 1999
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9606- )3SFE

Click highlighted areas on diagram

diagram 17139A 19100P 19500D 19500E 19539 19539 19539 19539 19901 19901B 19901C 19901D 19901E 9011910725 9017908153 9017908153 9046400556 9046400740 9046905006 9046905008 9162160818 9164380620 9164380620 9211240820 9211240820
Part # Description Qty Price
17139A - STAY, MANIFOLD, NO.1
17139-74180

3SFE..ST202,203

 1
19100P - PLUG, SPARK
90919-01198

3SFE..ST202,203

K20TR11

 4
90919-01184

3SFE..ST202,203

K20R−U11

 4
19500D - COIL, IGNITION, NO.1
90919-02217

3SFE..ST202,203

 1
19500E - COIL, IGNITION, NO.2
90919-02218

3SFE..ST202,203

 1
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-74050

3SFE..ST202,203

 4
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-74050

3SFE..ST202,203

 4
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-74050

3SFE..ST202,203

 4
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-74050

3SFE..ST202,203

 4
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-22400

3SFE..ST202

 1
90919-21576

3SFE..ST202,203

 1
90919-22386

3SFE..ST202,203

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15466

3SFE..ST202,203

 1
90919-15546

3SFE..ST202

 1
90919-15400

3SFE..ST202,203

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15465

3SFE..ST202,203

 1
90919-15547

3SFE..ST202

 1
90919-15401

3SFE..ST202,203

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-15464

3SFE..ST202,203

 1
90919-15402

3SFE..ST202,203

 1
90919-15548

3SFE..ST202

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-15349

3SFE..ST202,203

 1
90919-15463

3SFE..ST202,203

 1
90919-15549

3SFE..ST202

 1
Common parts
90119-10725
90179-08153
90464-00556
90464-00740
90469-05006
90469-05008
91621-60818
91643-80620
92112-40820

(9309-9606)3SFE

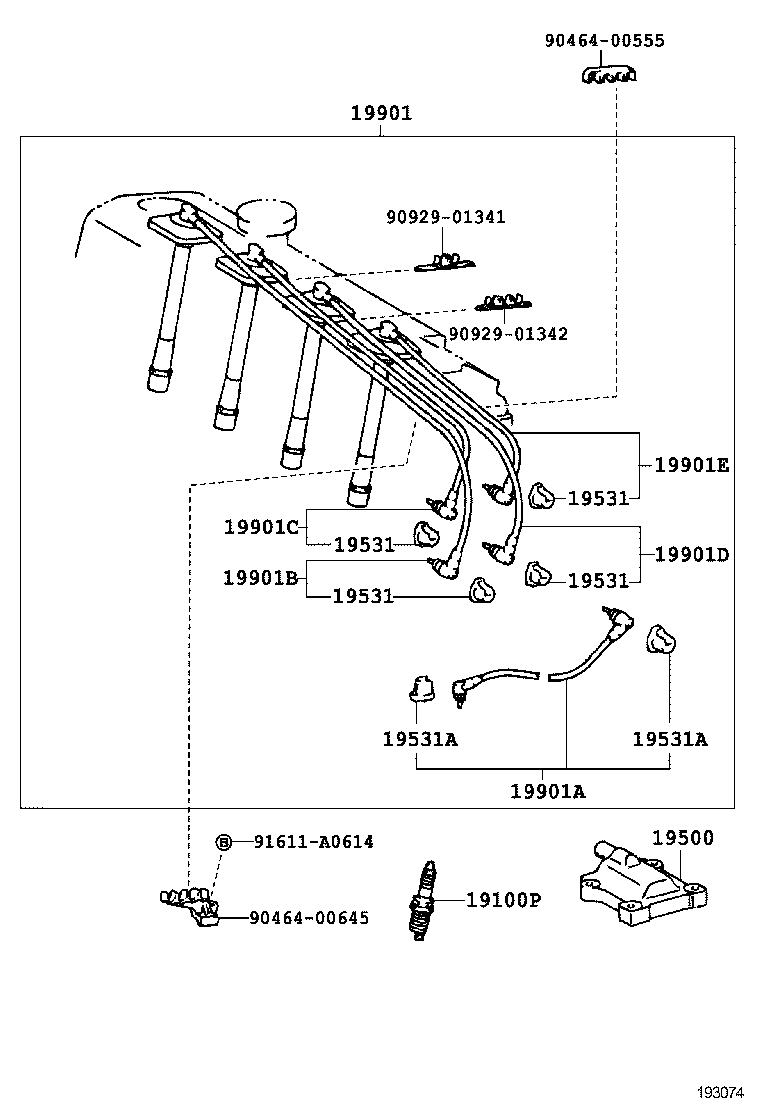

Click highlighted areas on diagram

diagram 19100P 19500 19531 19531 19531 19531 19531A 19531A 19901 19901A 19901B 19901C 19901D 19901E 9046400555 9046400645 9092901341 9092901342 91611A0614
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01198

3SFE..ST202,203

K20TR11

 4
90919-01184

3SFE..ST202,203

K20R−U11

 4
19500 - COIL ASSY, IGNITION
90919-02209

3SFE,3SG#..ST20#

 1
19531 - HOLDER, RESISTIVE CORD, NO.1
19531-74010

3SFE..ST202,203

 4
19531 - HOLDER, RESISTIVE CORD, NO.1
19531-74010

3SFE..ST202,203

 4
19531 - HOLDER, RESISTIVE CORD, NO.1
19531-74010

3SFE..ST202,203

 4
19531 - HOLDER, RESISTIVE CORD, NO.1
19531-74010

3SFE..ST202,203

 4
19531A - HOLDER, RESISTIVE CODE, NO.3
19531-74010

3SFE..ST202,203

 2
19531A - HOLDER, RESISTIVE CODE, NO.3
19531-74010

3SFE..ST202,203

 2
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-22400

3SFE..ST202

 1
90919-21576

3SFE..ST202,203

 1
90919-22386

3SFE..ST202,203

 1
19901A - CORD, COIL RESISTIVE
19590-74240

3SFE..ST202,203

YAZAKI

 1
19590-74230

3SFE..ST202,203

SUMITOMO

 1
19590-74240

3SFE..ST202,203

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15466

3SFE..ST202,203

 1
90919-15546

3SFE..ST202

 1
90919-15400

3SFE..ST202,203

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15465

3SFE..ST202,203

 1
90919-15547

3SFE..ST202

 1
90919-15401

3SFE..ST202,203

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-15464

3SFE..ST202,203

 1
90919-15402

3SFE..ST202,203

 1
90919-15548

3SFE..ST202

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-15349

3SFE..ST202,203

 1
90919-15463

3SFE..ST202,203

 1
90919-15549

3SFE..ST202

 1
Common parts
90464-00555
90464-00645
90929-01341
90929-01342
91611-A0614
