Toyota Celica ST185 GEAR SHIFT FORK & LEVER SHAFT (MTM)

ST185H-BLMVZ (1991)

Toyota Celica

Production Aug 1991 - Sep 1993

Engine 3SGTE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

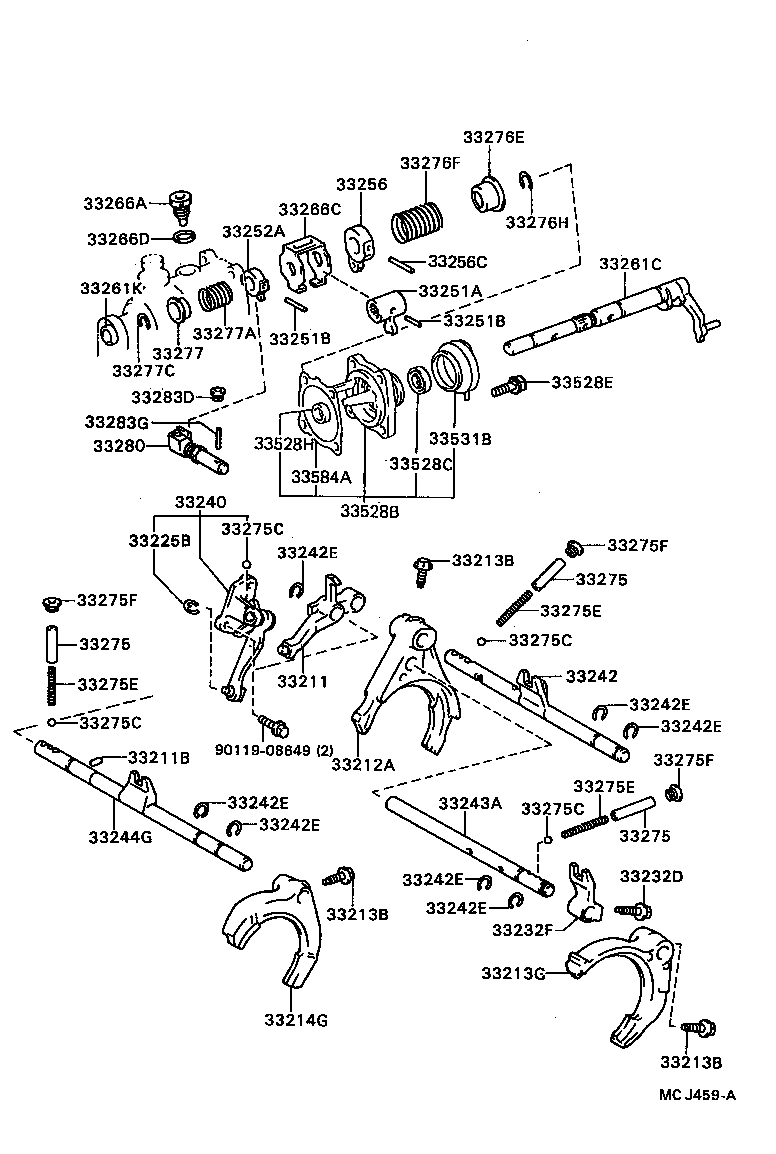

Click highlighted areas on diagram

E150F,E151F,E152F

Part #	Description	Period	Qty
33212A - FORK, GEAR SHIFT, NO.1
33212-33010	ST185	08/1991 - 09/1993	1
33213G - FORK, GEAR SHIFT, NO.2
33213-20042	ST185	12/1991 - 03/1992	1
33213-20043	ST185	03/1992 - 09/1993	1
33232F - HEAD, GEAR SHIFT, NO.1
33232-33010	ST185	08/1991 - 09/1993	1
33242 - SHAFT, GEAR SHIFT FORK, NO.1
33242-33010	ST185	08/1991 - 09/1993	1
33244G - SHAFT, GEAR SHIFT FORK, NO.3
33244-33010	ST185	08/1991 - 09/1993	1
33261C - SHAFT, SHIFT & SELECT LEVER
33261-20090	ST185	04/1993 - 09/1993	1
33261-20070	ST185	01/1992 - 04/1993	1
33261K - BEARING, NEEDLE ROLLER (FOR SHIFT & SELECT LEVER SHAFT)
90364-15003	ST185	01/1992 - 09/1993	1
33266C - PLATE, SHIFT INTER LOCK
33266-12030	ST185	08/1991 - 09/1993	1
33276E - SEAT, SELECT SPRING, NO.1
33276-20020	ST185	01/1992 - 09/1993	1
33276F - SPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)
90501-16133	ST185	01/1992 - 09/1993	1
33277A - SPRING, COMPRESSION, NO.2 (FOR SELECT RETURN)
90501-17028	ST185	02/1992 - 08/1993	1
90501-17030	ST185	08/1993 - 09/1993	1
33283D - PLUG (FOR REVERSE RESTRICT PIN)
90341-10065	ST185	08/1992 - 09/1993	1
90341-10065	ST18#..MTM	09/1989 - 08/1992	1
33528B - COVER, CONTROL SHAFT
33506-20270	ST185	01/1992 - 09/1993	1
33528C - SEAL, OIL (FOR CONTROL SHAFT COVER)
90311-18013	ST18#..MTM	10/1992 - 09/1993	1
33528H - BEARING, NEEDLE ROLLER (FOR CONTROL SHAFT COVER)
90364-18009	ST185	01/1992 - 09/1993	1
Common parts
90119-08649

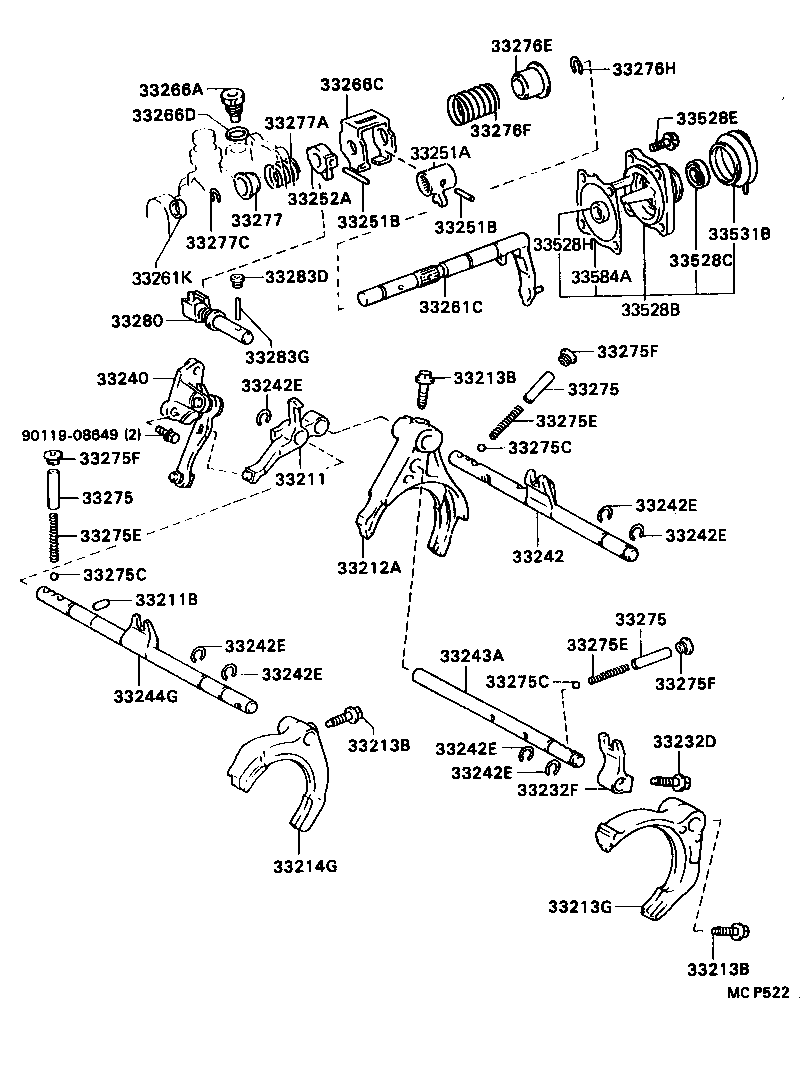

Click highlighted areas on diagram

E150F,E151F,E152F

Part #	Description	Period	Qty
33212A - FORK, GEAR SHIFT, NO.1
33212-33010	ST185	08/1991 - 09/1993	1
33213G - FORK, GEAR SHIFT, NO.2
33213-20042	ST185	12/1991 - 03/1992	1
33213-20043	ST185	03/1992 - 09/1993	1
33232F - HEAD, GEAR SHIFT, NO.1
33232-33010	ST185	08/1991 - 09/1993	1
33242 - SHAFT, GEAR SHIFT FORK, NO.1
33242-33010	ST185	08/1991 - 09/1993	1
33244G - SHAFT, GEAR SHIFT FORK, NO.3
33244-33010	ST185	08/1991 - 09/1993	1
33261C - SHAFT, SHIFT & SELECT LEVER
33261-20090	ST185	04/1993 - 09/1993	1
33261-20070	ST185	01/1992 - 04/1993	1
33261K - BEARING, NEEDLE ROLLER (FOR SHIFT & SELECT LEVER SHAFT)
90364-15003	ST185	01/1992 - 09/1993	1
33266C - PLATE, SHIFT INTER LOCK
33266-12030	ST185	08/1991 - 09/1993	1
33276E - SEAT, SELECT SPRING, NO.1
33276-20020	ST185	01/1992 - 09/1993	1
33276F - SPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)
90501-16133	ST185	01/1992 - 09/1993	1
33277A - SPRING, COMPRESSION, NO.2 (FOR SELECT RETURN)
90501-17028	ST185	02/1992 - 08/1993	1
90501-17030	ST185	08/1993 - 09/1993	1
33283D - PLUG (FOR REVERSE RESTRICT PIN)
90341-10065	ST185	08/1992 - 09/1993	1
90341-10065	ST18#..MTM	09/1989 - 08/1992	1
33528B - COVER, CONTROL SHAFT
33506-20270	ST185	01/1992 - 09/1993	1
33528C - SEAL, OIL (FOR CONTROL SHAFT COVER)
90311-18013	ST18#..MTM	10/1992 - 09/1993	1
33528H - BEARING, NEEDLE ROLLER (FOR CONTROL SHAFT COVER)
90364-18009	ST185	01/1992 - 09/1993	1
Common parts
90119-08649
