ST185H-BLMQZ (1991)

Toyota Celica

Production Aug 1991 - Feb 1992
Engine 3SGTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9108- )GT4RC

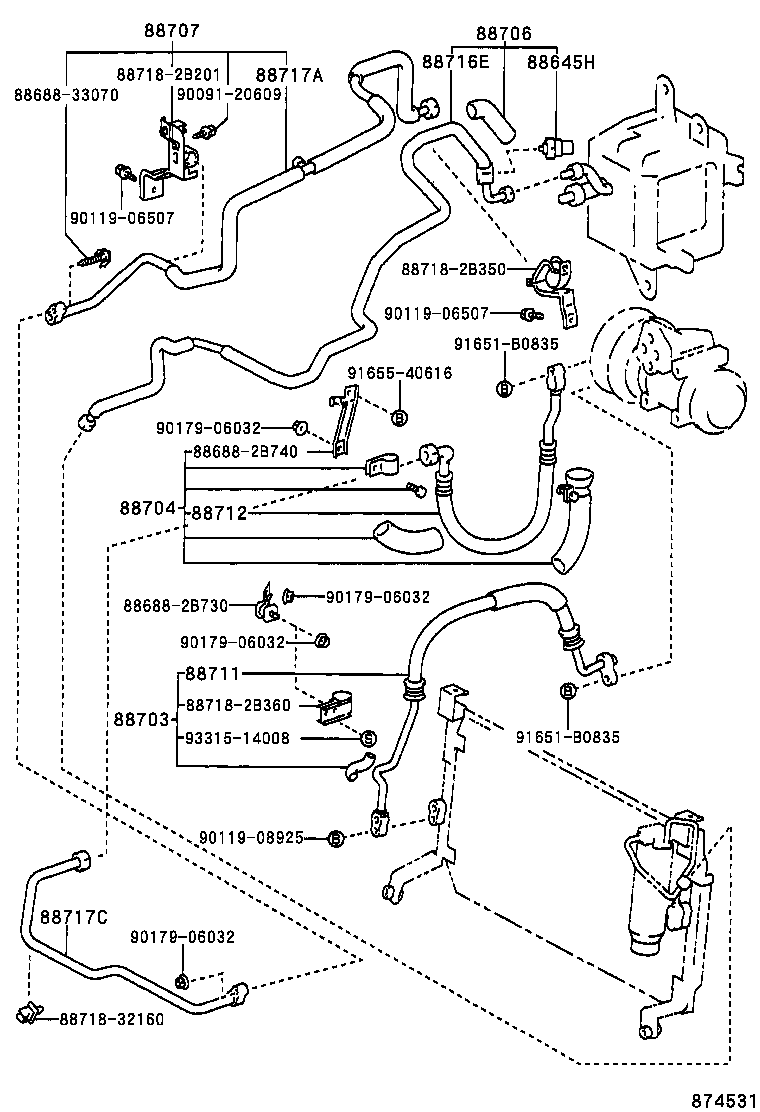

Click highlighted areas on diagram

diagram 88645H 886882B730 886882B740 8868833070 88703 88704 88706 88707 88711 88712 88716E 88717A 88717C 887182B201 887182B350 887182B360 8871832160 9009120609 9011906507 9011906507 9011908925 9017906032 9017906032 9017906032 9017906032 91651B0835 91651B0835 9165540616 9331514008
Part # Description Qty Price
88703 - HOSE SUB-ASSY, DISCHARGE
88703-20081

ST185..GT4RC

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-20111

ST18#..LB

 1
88706 - PIPE SUB-ASSY, LIQUID
88706-20100

ST185..GT4RC

 1
88706-20091

ST18#..GT4,GTR,SR,ZR

 1
88707 - PIPE SUB-ASSY, SUCTION
88707-20031

ST185..GT4RC

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-20751

ST185..GT4RC

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2B180

ST18#..LB

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-2D030

ST185..GT4RC

 1
88716-2D021

ST18#..GT4,GTR,SR,ZR

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2B250

ST185..GT4RC

 1
88717-2B150

ST18#..GT4,GTR,SR,ZR

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-2B140

ST18#..GT4,GTR,SR,ZR

 1
88717-2B121

ST185..GT4RC

 1
Common parts
88688-2B730
88688-2B740
88688-33070
88718-2B201
88718-2B350
88718-2B360
88718-32160
90091-20609
90119-06507
90119-08925
90179-06032
91651-B0835
91655-40616
93315-14008

(9108- )CV,GT4,GTR,SR,ZR

Click highlighted areas on diagram

diagram 88453 88454A 88460 8846714040 8846716040 8846716040 8846720110 88471 88473A 88550 88590 88596B 886882B420 886882B440 886882B450 886882B590 9009120609 9009900217 9009904431 9009905245 9011906077 9011906077 9011906077 9011906507 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-20301

ST18#..GT4,GTR,SR,ZR

 1
88460-20350

ST185..GT4RC

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-16040

ST185..GT4RC

 1
88473A - HOLDER, RECEIVER
88473-20110

ST185..GT4RC

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-20080

ST185..GT4RC

 1
88590 - BLOWER ASSY, W/SHROUD
88590-20230

ST18#..GT4,GTR,SR,ZR

 1
88590-20250

ST185..GT4RC

 1
Common parts
88467-14040
88467-16040
88467-20110
88688-2B420
88688-2B440
88688-2B450
88688-2B590
90091-20609
90099-00217
90099-04431
90099-05245
90119-06077
90119-06507
90179-06032

(9108- )GT4RC

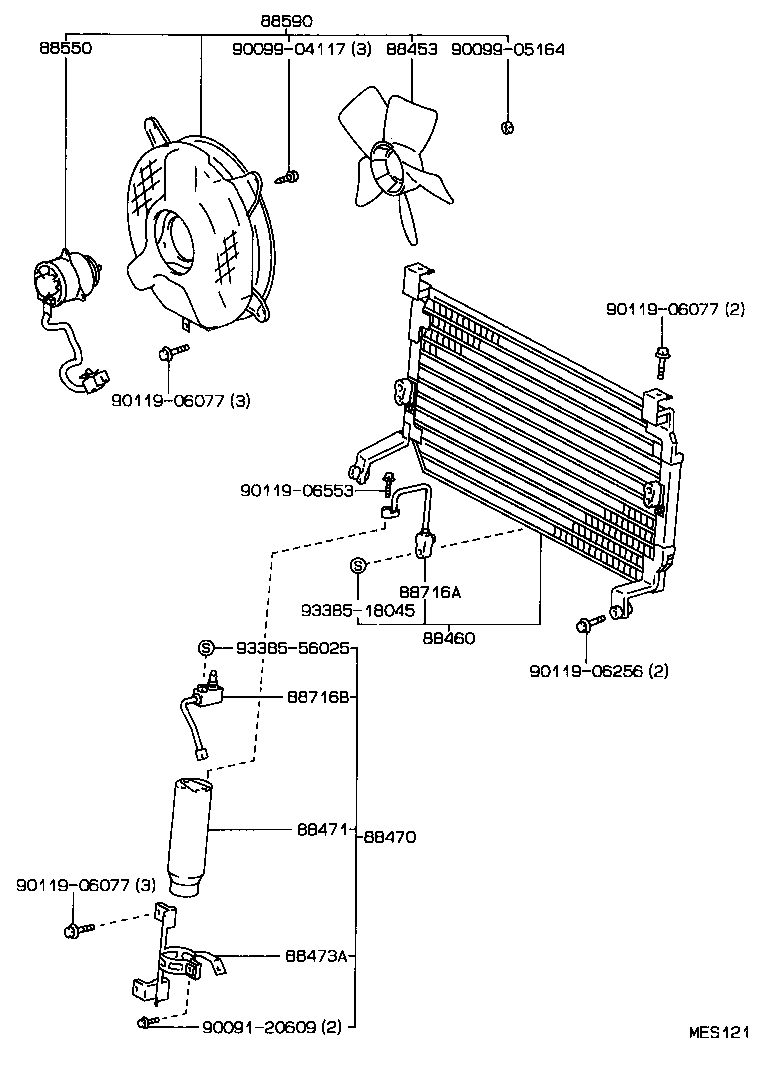

Click highlighted areas on diagram

diagram 88453 88460 88470 88471 88473A 88550 88590 88716A 88716B 9009120609 9009904117 9009905164 9011906077 9011906077 9011906077 9011906256 9011906553 9338518045 9338556025
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-20301

ST18#..GT4,GTR,SR,ZR

 1
88460-20350

ST185..GT4RC

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-20100

ST185..GT4RC

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-16040

ST185..GT4RC

 1
88473A - HOLDER, RECEIVER
88473-20110

ST185..GT4RC

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-20080

ST185..GT4RC

 1
88590 - BLOWER ASSY, W/SHROUD
88590-20230

ST18#..GT4,GTR,SR,ZR

 1
88590-20250

ST185..GT4RC

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2B880

ST185..GT4RC

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2B870

ST18#..GT4,GTR,SR,ZR

 1
88716-2D050

ST185..GT4RC

 1
Common parts
90091-20609
90099-04117
90099-05164
90119-06077
90119-06256
90119-06553
93385-18045
93385-56025

(9108- )CV,GT4,GTR,SR,ZR

Click highlighted areas on diagram

diagram 88375B 88470C 88645H 886882B691 886882B720 886882B730 886882B740 88703 88704 88706 88711 88712 88716A 88716B 88716E 88717A 88717C 887182B350 887182B360 887182B370 8871832160 9009120609 9011906507 9011906507 9011906507 9011908925 9017906032 9017906032 9017906032 9017908035 9165160845 91651B0835 91651B0835 9165540616 9331514008 9338556025 9338556025
Part # Description Qty Price
88375B - CAP, SERVICE VALVE, NO.1
88375-20010

ST18#..GT4,GTR,SR,ZR

 1
88470C - BOLT, FUSE
88475-12020

ST18#..GT4,GTR,SR,ZR

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-20081

ST185..GT4RC

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-20111

ST18#..LB

 1
88706 - PIPE SUB-ASSY, LIQUID
88706-20100

ST185..GT4RC

 1
88706-20091

ST18#..GT4,GTR,SR,ZR

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-20751

ST185..GT4RC

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2B180

ST18#..LB

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2B880

ST185..GT4RC

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2B870

ST18#..GT4,GTR,SR,ZR

 1
88716-2D050

ST185..GT4RC

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-2D030

ST185..GT4RC

 1
88716-2D021

ST18#..GT4,GTR,SR,ZR

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2B250

ST185..GT4RC

 1
88717-2B150

ST18#..GT4,GTR,SR,ZR

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-2B140

ST18#..GT4,GTR,SR,ZR

 1
88717-2B121

ST185..GT4RC

 1
Common parts
88688-2B691
88688-2B720
88688-2B730
88688-2B740
88718-2B350
88718-2B360
88718-2B370
88718-32160
90091-20609
90119-06507
90119-08925
90179-06032
90179-08035
91651-60845
91651-B0835
91655-40616
93315-14008
93385-56025
