ST185H-BLMQZ (1991)

Toyota Celica

Production Aug 1991 - Feb 1992
Engine 3SGTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9108- )3SGTE

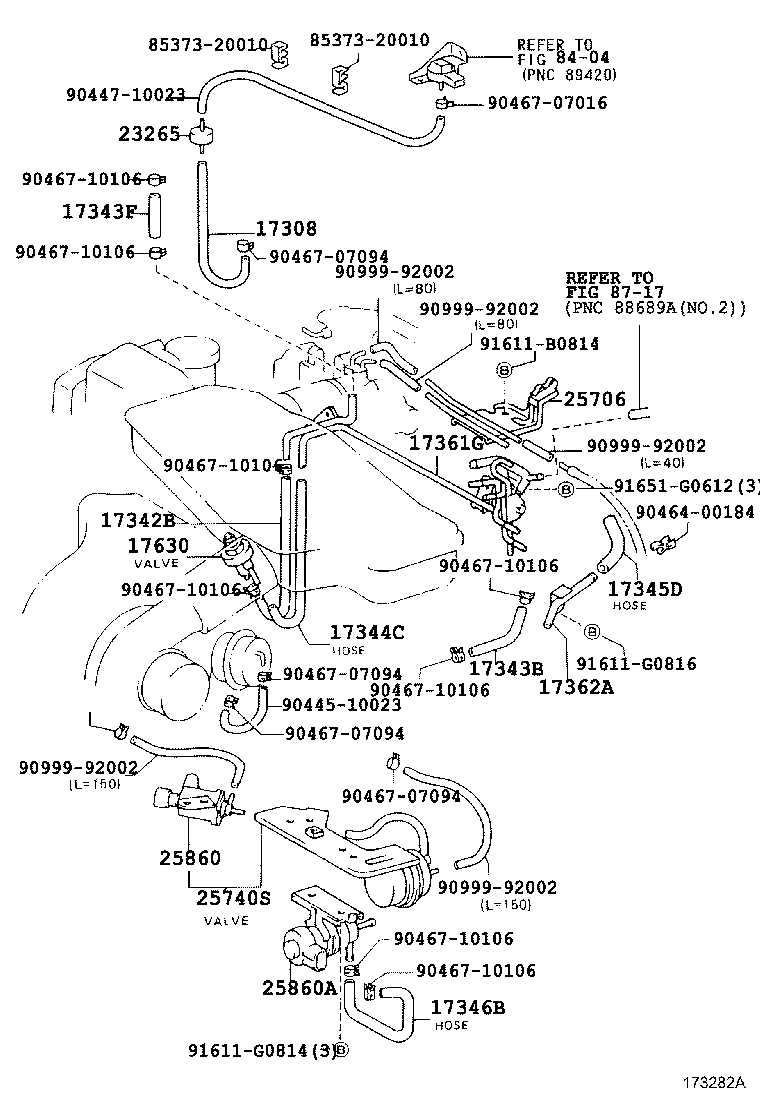

Click highlighted areas on diagram

diagram 17308 17342B 17343B 17343F 17344C 17345D 17346B 17361G 17362A 17630 23265 25706 25740S 25860 25860A 8404 8537320010 8537320010 8717 9044510023 9044710023 9046400184 9046707016 9046707094 9046707094 9046707094 9046707094 9046710106 9046710106 9046710106 9046710106 9046710106 9046710106 9046710106 9046710106 9099992002 9099992002 9099992002 9099992002 9099992002 91611B0814 91611G0814 91611G0816 91651G0612
Part # Description Qty Price
17630 - VALVE ASSY, AIR CONTROL
17630-70020

3SFE,3SG#..ST18#

 1
Common parts
85373-20010
90445-10023
90447-10023
90464-00184
90467-07016
90467-07094
90467-10106
90999-92002
91611-B0814
91611-G0814
91611-G0816
91651-G0612
Linked diagrams
8404
8717
