Toyota Celica ST185 HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

Manufacturers Home
Toyota
JP
CELICA
ST185-BLMVZ (1989)
8712 - HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

ST185-BLMVZ (1989)

Toyota Celica

Production Oct 1989 - Aug 1991

Engine 3SGTE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

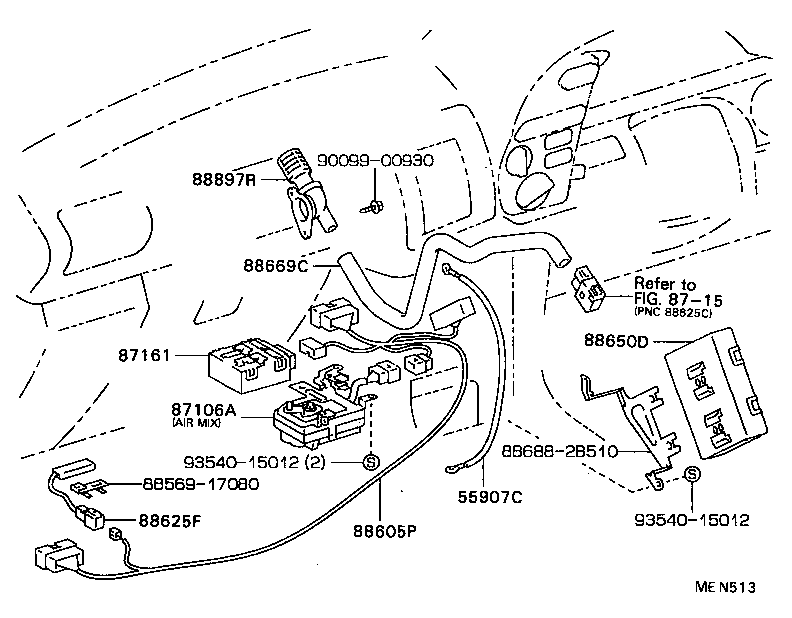

(8909-9108)SR ; (8910-9108)GT4

Click highlighted areas on diagram

W(AUTO AIR CONDITIONER)

Part #	Description	Period	Qty
55907C - CABLE SUB-ASSY, WATER VALVE CONTROL
87286-20090	ST18#	09/1989 - 09/1993	1
87106A - SERVO SUB-ASSY, DAMPER
87106-20120	ST18# ﾓｰﾄﾞ	09/1989 - 09/1993	1
87106-20140	ST18#..ACT,GT4,GTR,ZR ｴｱﾐｯｸｽ	09/1989 - 08/1990	1
87106-20160	ST18# FRESH-RECIRC	09/1989 - 09/1993	1
87161 - AMPLIFIER, HEATER SERVO MOTOR
87161-20030	ST18#	09/1989 - 09/1993	1
88605P - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-2B710	ST185..GT4 GT-FOUR RALLY OR GT-FOUR V,ｱﾘ(ｵ-ﾄｴｱｺﾝ)	10/1989 - 09/1990	1
88605-2B720	ST185..GT4 ｱﾘ(ｵ-ﾄｴｱｺﾝ)	10/1989 - 09/1990	1
88605-2B720	ST18#..CV,GT4,GTR,SR,ZR ｱﾘ(ｵ-ﾄｴｱｺﾝ)	09/1990 - 08/1991	1
88605-2B710	ST185..GT4 GT-FOUR RALLY OR GT-FOUR V,ｱﾘ(ｵ-ﾄｴｱｺﾝ)	09/1990 - 08/1991	1
88625F - SENSOR, TEMPERATURE
88790-24040	ST18#..GT4,GTR,SR,ZR	09/1990 - 08/1991	1
88790-24040	ST185..GT4	10/1989 - 09/1990	1
88650D - AMPLIFIER ASSY
88650-20711	ST185..GT4 GT-FOUR RALLY OR GT-FOUR V	02/1990 - 09/1990	1
88650-20720	ST185	10/1989 - 02/1990	1
88650-20710	ST185 GT-FOUR RALLY OR GT-FOUR V	10/1989 - 02/1990	1
88650-20721	ST185..GT4	02/1990 - 09/1990	1
88650-20711	ST185..GT4 GT-FOUR RALLY OR GT-FOUR V	09/1990 - 08/1991	1
88650-20721	ST18#..GT4,GTR,SR,ZR	09/1990 - 08/1991	1
88669C - HOSE, AIR
88894-20060	ST185..GT4	10/1989 - 09/1990	1
88894-20060	ST18#..GT4,GTR,SR,ZR	09/1990 - 08/1991	1
88897R - ASPIRATOR
88897-20110	ST185..GT4	10/1989 - 09/1990	1
88897-20110	ST18#..GT4,GTR,SR,ZR	09/1990 - 08/1991	1
Common parts
88569-17080
88688-2B510
90099-00930
93540-15012
Linked diagrams
8715

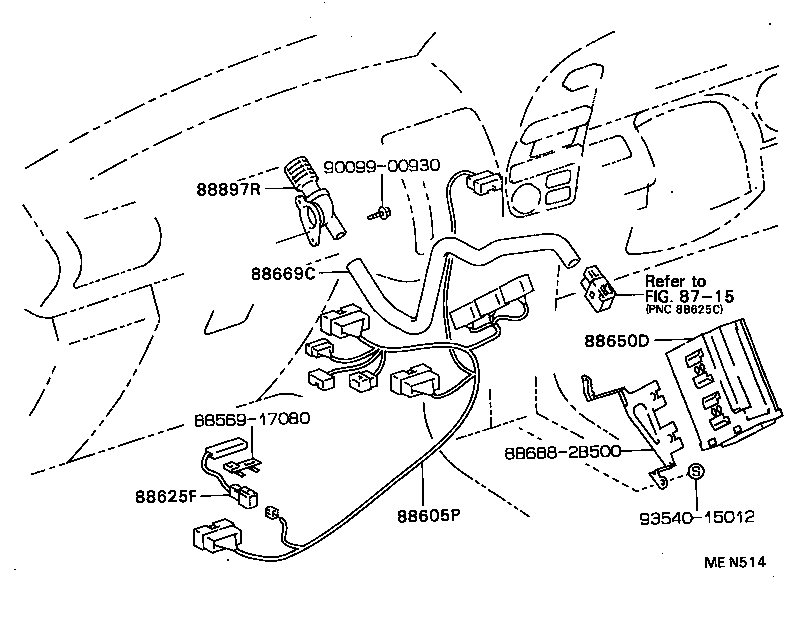

(8909-9108)CV,GT4,GT4A,GTR,ZR ; (9108- )

Click highlighted areas on diagram

W(AUTO AIR CONDITIONER)

Part #	Description	Period	Qty
88605P - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-2B710	ST185..GT4 GT-FOUR RALLY OR GT-FOUR V,ｱﾘ(ｵ-ﾄｴｱｺﾝ)	10/1989 - 09/1990	1
88605-2B720	ST185..GT4 ｱﾘ(ｵ-ﾄｴｱｺﾝ)	10/1989 - 09/1990	1
88605-2B720	ST18#..CV,GT4,GTR,SR,ZR ｱﾘ(ｵ-ﾄｴｱｺﾝ)	09/1990 - 08/1991	1
88605-2B710	ST185..GT4 GT-FOUR RALLY OR GT-FOUR V,ｱﾘ(ｵ-ﾄｴｱｺﾝ)	09/1990 - 08/1991	1
88625F - SENSOR, TEMPERATURE
88790-24040	ST18#..GT4,GTR,SR,ZR	09/1990 - 08/1991	1
88790-24040	ST185..GT4	10/1989 - 09/1990	1
88650D - AMPLIFIER ASSY
88650-20711	ST185..GT4 GT-FOUR RALLY OR GT-FOUR V	02/1990 - 09/1990	1
88650-20720	ST185	10/1989 - 02/1990	1
88650-20710	ST185 GT-FOUR RALLY OR GT-FOUR V	10/1989 - 02/1990	1
88650-20721	ST185..GT4	02/1990 - 09/1990	1
88650-20711	ST185..GT4 GT-FOUR RALLY OR GT-FOUR V	09/1990 - 08/1991	1
88650-20721	ST18#..GT4,GTR,SR,ZR	09/1990 - 08/1991	1
88669C - HOSE, AIR
88894-20060	ST185..GT4	10/1989 - 09/1990	1
88894-20060	ST18#..GT4,GTR,SR,ZR	09/1990 - 08/1991	1
88897R - ASPIRATOR
88897-20110	ST185..GT4	10/1989 - 09/1990	1
88897-20110	ST18#..GT4,GTR,SR,ZR	09/1990 - 08/1991	1
Common parts
88569-17080
88688-2B500
90099-00930
93540-15012
Linked diagrams
8715

(8909-9108)CV,GT4,GT4A,GTR,SR,ZR ; (9108- )

Click highlighted areas on diagram

BLOWER

Part #	Description	Period	Qty
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-20050	ST18#	09/1989 - 09/1993	1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-20100	ST18#	09/1989 - 09/1993	1
87106A - SERVO SUB-ASSY, DAMPER
87106-20120	ST18# ﾓｰﾄﾞ	09/1989 - 09/1993	1
87106-20140	ST18#..ACT,GT4,GTR,ZR ｴｱﾐｯｸｽ	09/1989 - 08/1990	1
87106-20160	ST18# FRESH-RECIRC	09/1989 - 09/1993	1
87130 - BLOWER ASSY, HEATER, FRONT
87130-20450	ST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR	09/1989 - 09/1993	1
87130C - RELAY, HEATER BLOWER MOTOR
88630-20190	ST18#	08/1990 - 08/1991	1
88630-20190	ST18#..ACT,GT4,GTR,ZR	09/1989 - 08/1990	1
Common parts
90119-06088
90159-60125
90179-06239

(8909-9108)SR ; (8910-9108)GT4

Click highlighted areas on diagram

RADIATOR

Part #	Description	Period	Qty
55941B - GUIDE, HEATER CONTROL
55941-20070	ST185..GT4	10/1989 - 08/1991	1
87106A - SERVO SUB-ASSY, DAMPER
87106-20120	ST18# ﾓｰﾄﾞ	09/1989 - 09/1993	1
87106-20140	ST18#..ACT,GT4,GTR,ZR ｴｱﾐｯｸｽ	09/1989 - 08/1990	1
87106-20160	ST18# FRESH-RECIRC	09/1989 - 09/1993	1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-20530	ST18#	09/1989 - 09/1993	1
87150 - RADIATOR ASSY, HEATER
87150-20880	ST185..GT4 GT-FOUR RALLY OR GT-FOUR V	10/1989 - 08/1991	1
87150-2B010	ST18#..GT4,GTR,ZR	09/1989 - 08/1990	1
87150-2B010	ST18#..CV,GT4,GT4A,GTR,SR,ZR	08/1990 - 08/1991	1
87201D - DUCT SUB-ASSY, AIR
87201-20120	ST18#	09/1989 - 09/1993	1
Common parts
90179-06239
