ST185-BLMVZ (1989)
Toyota Celica
Production
Oct 1989
-
Aug 1991
Engine
3SGTE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8910- )ST185

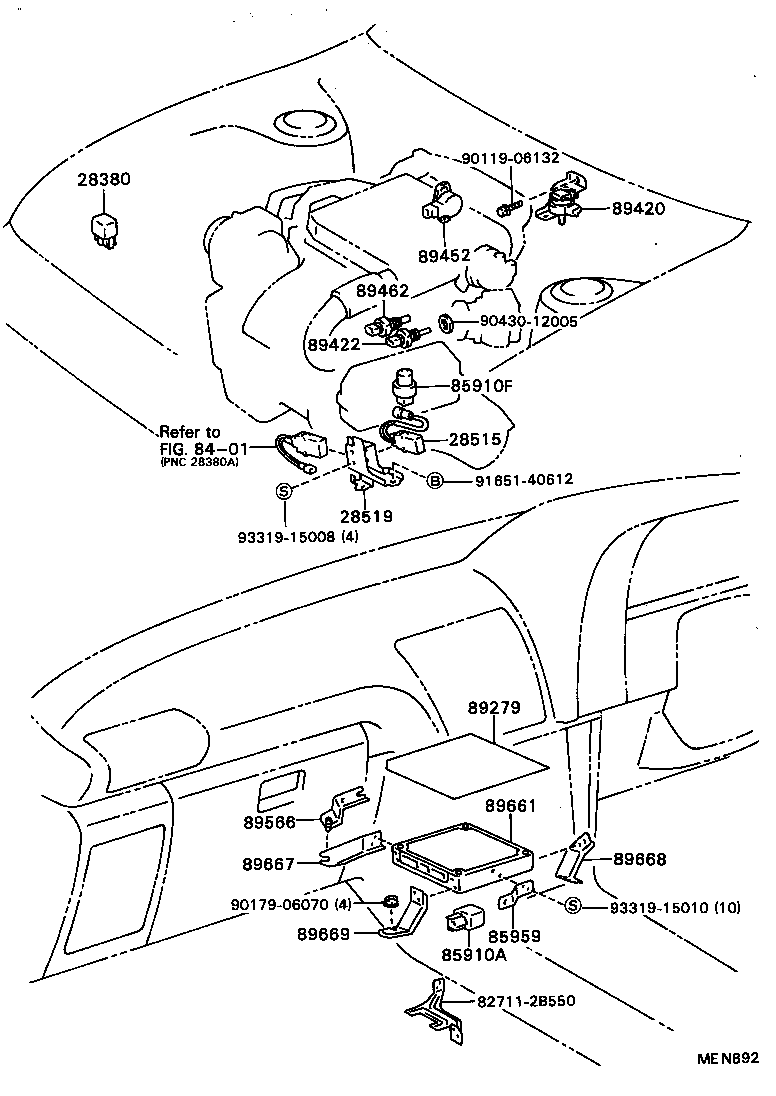

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28515 - RESISTOR, SOLENOID | ||||
| 28515-74070 |
3SGTE..ST185 |
1 | ||
| 28519 - BRACKET, SOLENOID RESISTOR | ||||
| 28519-74050 |
3SGTE..ST185 |
1 | ||
| 85910F - RELAY, COMPUTER (FOR EFI) | ||||
| 90987-02004 |
ST18# |
1 | ||
| 85959 - HOLDER, RELAY | ||||
| 85959-20130 |
ST18# |
1 | ||
| 89279 - COVER, ENGINE CONTROL COMPUTER | ||||
| 89279-12020 |
ST18# |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-20010 |
ST18# |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-12040 |
ST18# |
1 | ||
| 89566 - BRACKET, FUEL INJECTION COMPUTER | ||||
| 89566-20010 |
ST18# |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-20750 |
ST185 |
1 | ||
| 89661-20751 |
ST185 |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-20200 |
ST182,183..ATM;ST18#..MTM..(ACT,GT4,GTR) |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-20170 |
ST18# |
1 | ||
| 89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3 | ||||
| 89669-20120 |
ST18# |
1 | ||
| Common parts | ||||
| 82711-2B550 | ||||
| 90119-06132 | ||||
| 90179-06070 | ||||
| 90430-12005 | ||||
| 91651-40612 | ||||
| 93319-15008 | ||||
| 93319-15010 | ||||
| Linked diagrams | ||||
| 8401 | ||||
