ST185-BLMVZ (1989)

Toyota Celica

Production Oct 1989 - Aug 1991
Engine 3SGTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 9(8910- )ST185

Click highlighted areas on diagram

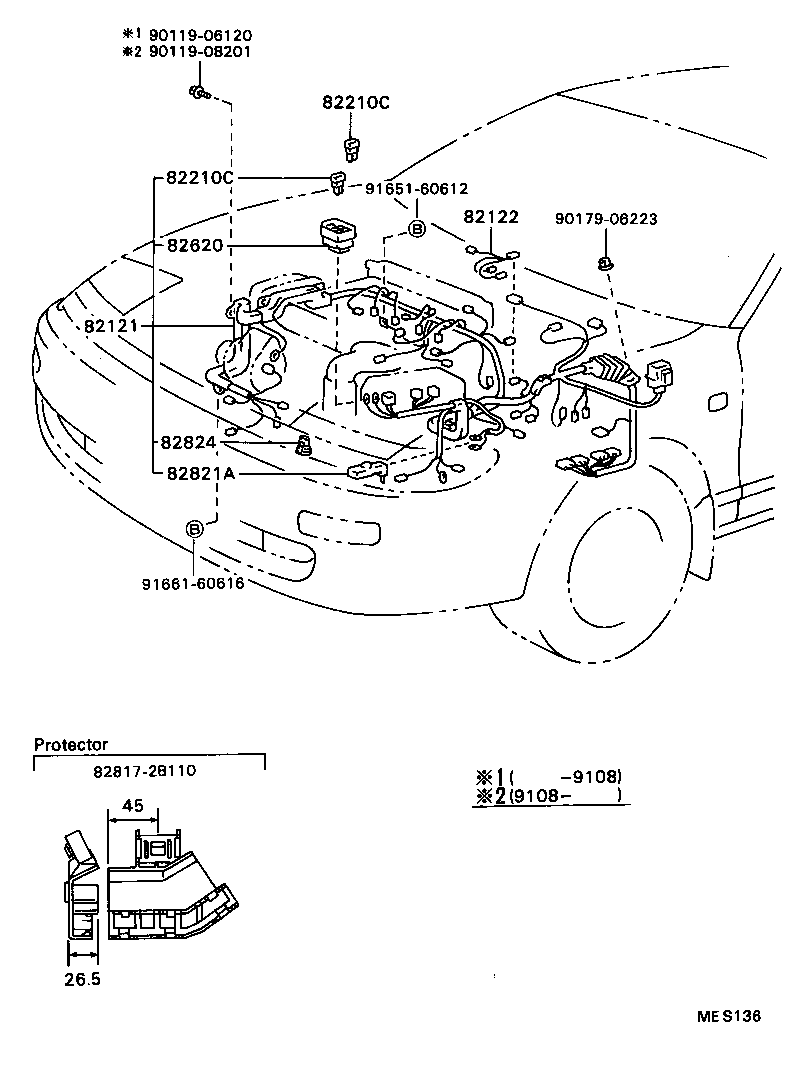

ENGINE WIRE

diagram 82121 82122 82210C 82210C 82620 828172B110 82821A 82824 9011906120 9011908201 9017906223 9165160612 9166160616
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-2D030

ST185

 1
82121-2D031

ST185

 1
82122 - WIRE, ENGINE, NO.2
82122-20210

ST185

 1
82210C - FUSIBLE LINK
90982-08190

ST18#

60A,ﾒｽ端子,黄

 1
90982-08188

ST18#

30A,ﾒｽ端子,ﾋﾟﾝｸ

 2
90982-08246

ST18#

100A,ｵｽ端子,青

 1
82210C - FUSIBLE LINK
90982-08190

ST18#

60A,ﾒｽ端子,黄

 1
90982-08188

ST18#

30A,ﾒｽ端子,ﾋﾟﾝｸ

 2
90982-08246

ST18#

100A,ｵｽ端子,青

 1
82821A - COVER, CONNECTOR
82821-20160

ST18#

 1
82824 - CONNECTOR, WIRING HARNESS
82824-20060

ST18#

COWL WIRE

 1
Common parts
82817-2B110
90119-06120
90119-08201
90179-06223
91651-60612
91661-60616
