ST185-BLMVZ (1989)
Toyota Celica
Production
Oct 1989
-
Aug 1991
Engine
3SGTE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8909-9108)

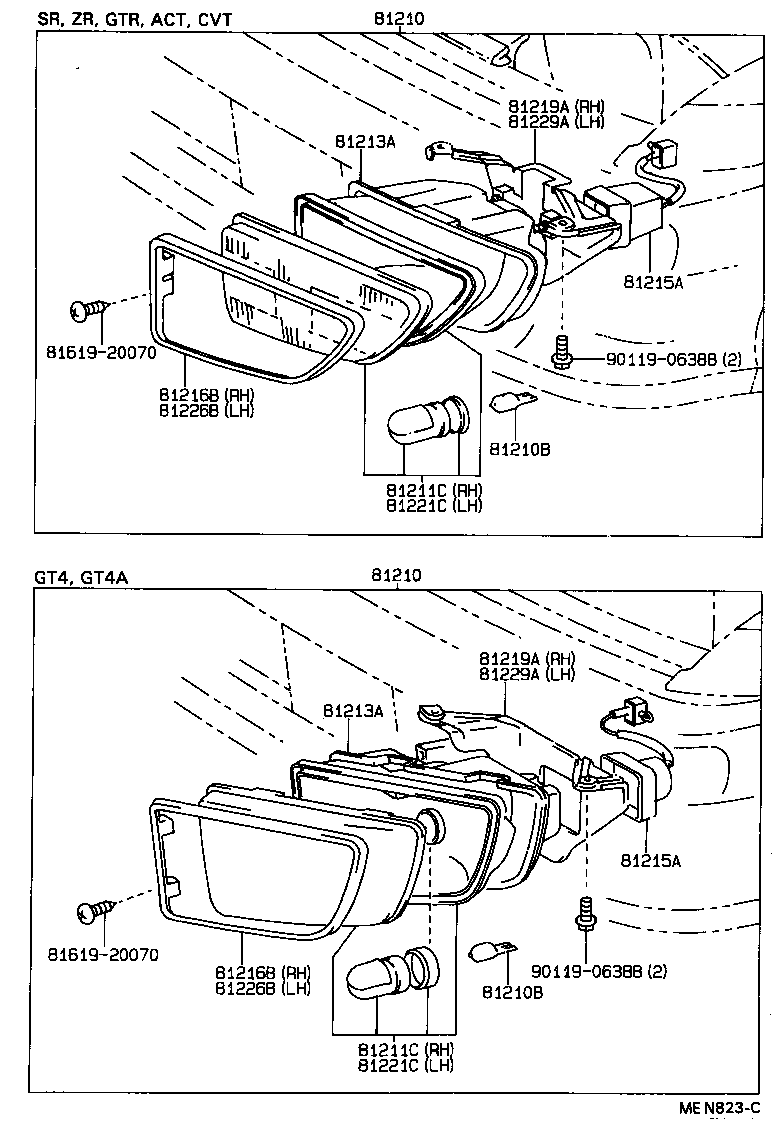

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81210 - LAMP ASSY, FOG | ||||
| 81220-29075 |
ST185 左側 |
1 | ||
| 81210-29125 |
ST185 右側 |
1 | ||
| 81210 - LAMP ASSY, FOG | ||||
| 81220-29075 |
ST185 左側 |
1 | ||
| 81210-29125 |
ST185 右側 |
1 | ||
| 81210B - BULB, FOG LAMP | ||||
| 90981-13018 |
ST18# 12V 55W,ﾊﾛｹﾞﾝ |
2 | ||
| 81210B - BULB, FOG LAMP | ||||
| 90981-13018 |
ST18# 12V 55W,ﾊﾛｹﾞﾝ |
2 | ||
| 81211C - LAMP UNIT, FOG LAMP, RH | ||||
| 81211-20130 |
ST185 |
1 | ||
| 81211C - LAMP UNIT, FOG LAMP, RH | ||||
| 81211-20130 |
ST185 |
1 | ||
| 81213A - BODY, FOG LAMP | ||||
| 81213-20130 |
ST185 右側 |
1 | ||
| 81223-20130 |
ST185 左側 |
1 | ||
| 81213A - BODY, FOG LAMP | ||||
| 81213-20130 |
ST185 右側 |
1 | ||
| 81223-20130 |
ST185 左側 |
1 | ||
| 81215A - SOCKET & WIRE, FOG LAMP | ||||
| 81215-20170 |
ST18# |
2 | ||
| 81215A - SOCKET & WIRE, FOG LAMP | ||||
| 81215-20170 |
ST18# |
2 | ||
| 81216B - RIM, FOG LAMP, RH NO.1 | ||||
| 81216-20130 |
ST185 |
1 | ||
| 81216B - RIM, FOG LAMP, RH NO.1 | ||||
| 81216-20130 |
ST185 |
1 | ||
| 81219A - BRACKET, FOG LAMP, RH | ||||
| 81219-20130 |
ST185 |
1 | ||
| 81219A - BRACKET, FOG LAMP, RH | ||||
| 81219-20130 |
ST185 |
1 | ||
| 81221C - LAMP UNIT, FOG LAMP, LH | ||||
| 81221-20130 |
ST185 |
1 | ||
| 81221C - LAMP UNIT, FOG LAMP, LH | ||||
| 81221-20130 |
ST185 |
1 | ||
| 81226B - RIM, FOG LAMP, LH | ||||
| 81226-20130 |
ST185 |
1 | ||
| 81226B - RIM, FOG LAMP, LH | ||||
| 81226-20130 |
ST185 |
1 | ||
| 81229A - BRACKET, FOG LAMP, LH | ||||
| 81229-20130 |
ST185 |
1 | ||
| 81229A - BRACKET, FOG LAMP, LH | ||||
| 81229-20130 |
ST185 |
1 | ||
| Common parts | ||||
| 81619-20070 | ||||
| 90119-06388 | ||||
