ST185-BLMVZ (1989)
Toyota Celica
Production
Oct 1989
-
Aug 1991
Engine
3SGTE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8910- )ST185

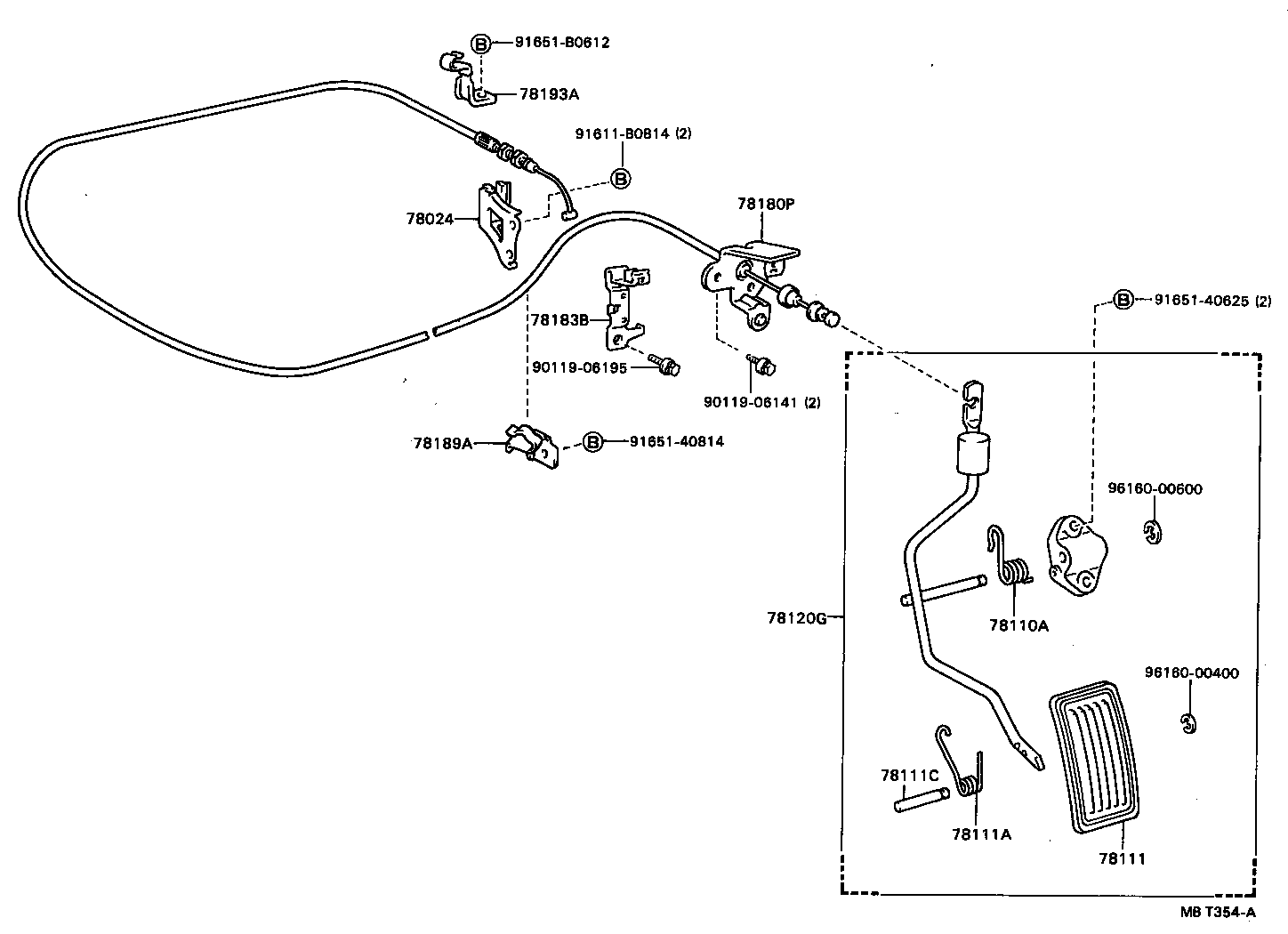

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-26054 |
ST18#..MTM |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-20030 |
ST18# |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-18050 |
ST18#..MTM |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
ST18# |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-20460 |
ST18#..MTM..(ACT,CV,GT4,GT4A,GT4RC,GTR) |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-20130 |
ST18# |
1 | ||
| Common parts | ||||
| 90119-06141 | ||||
| 90119-06195 | ||||
| 91611-B0814 | ||||
| 91651-40625 | ||||
| 91651-40814 | ||||
| 91651-B0612 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
