Toyota Celica ST185 FUEL TANK & TUBE

ST185-BLMVZ (1989)

Toyota Celica

Production Oct 1989 - Aug 1991

Engine 3SGTE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8910- )ST185

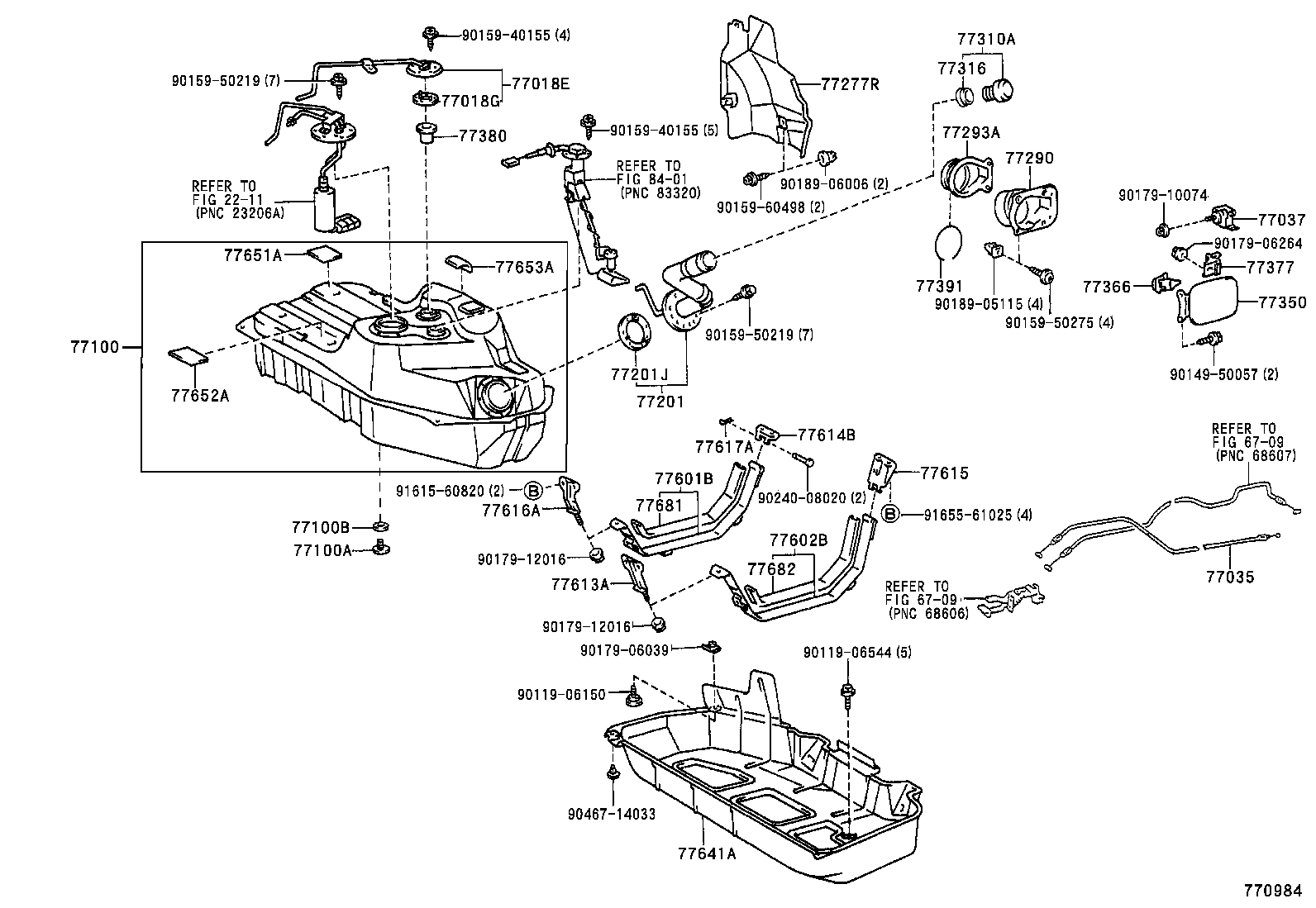

Click highlighted areas on diagram

Part #	Description	Period	Qty
77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT
77018-20130	ST185 ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ	10/1989 - 08/1991	1
77018-20070	ST185	10/1989 - 08/1991	1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-20350	ST18#..LB	08/1990 - 08/1991	2
77035-20250	ST18#	09/1989 - 08/1990	1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-20060	ST18#	09/1989 - 09/1993	1
77100A - PLUG(FOR FUEL TANK)
90341-20004	ST18#..ACT,GT4,GT4A,GTR,SR,ZR ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ	09/1989 - 09/1993	1
77100B - GASKET(FOR FUEL TANK)
90430-20007	ST18#..ACT,GT4,GT4A,GTR,SR,ZR ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ	09/1989 - 09/1993	1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77290-20110	ST18#..NOB	09/1989 - 09/1993	1
77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3
77293-20060	ST18#..NOB	09/1989 - 09/1993	1
77310A - CAP ASSY, FUEL TANK
77310-16011	ST18#	09/1989 - 09/1993	1
77316 - GASKET, FUEL TANK CAP
77316-16010	ST18#	09/1989 - 09/1993	1
77350 - LID ASSY, FUEL FILLER OPENING
77350-20160	ST18#..LB..NOB	09/1989 - 09/1993	1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-12030	ST18#	09/1989 - 09/1993	1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-20050	ST18#	09/1989 - 09/1993	1
77391 - RING, FUEL INLET BOX
77391-14020	ST18#	09/1989 - 09/1993	1
77617A - UNION, AUXILIARY FUEL BAND
77617-12010	ST18#	09/1989 - 08/1991	2
Common parts
90119-06150
90119-06544
90149-50057
90159-40155
90159-50219
90159-50275
90159-60498
90179-06039
90179-06264
90179-10074
90179-12016
90189-05115
90189-06006
90240-08020
90467-14033
91615-60820
91655-61025
Linked diagrams
2211
6709
8401

(8910- )ST185

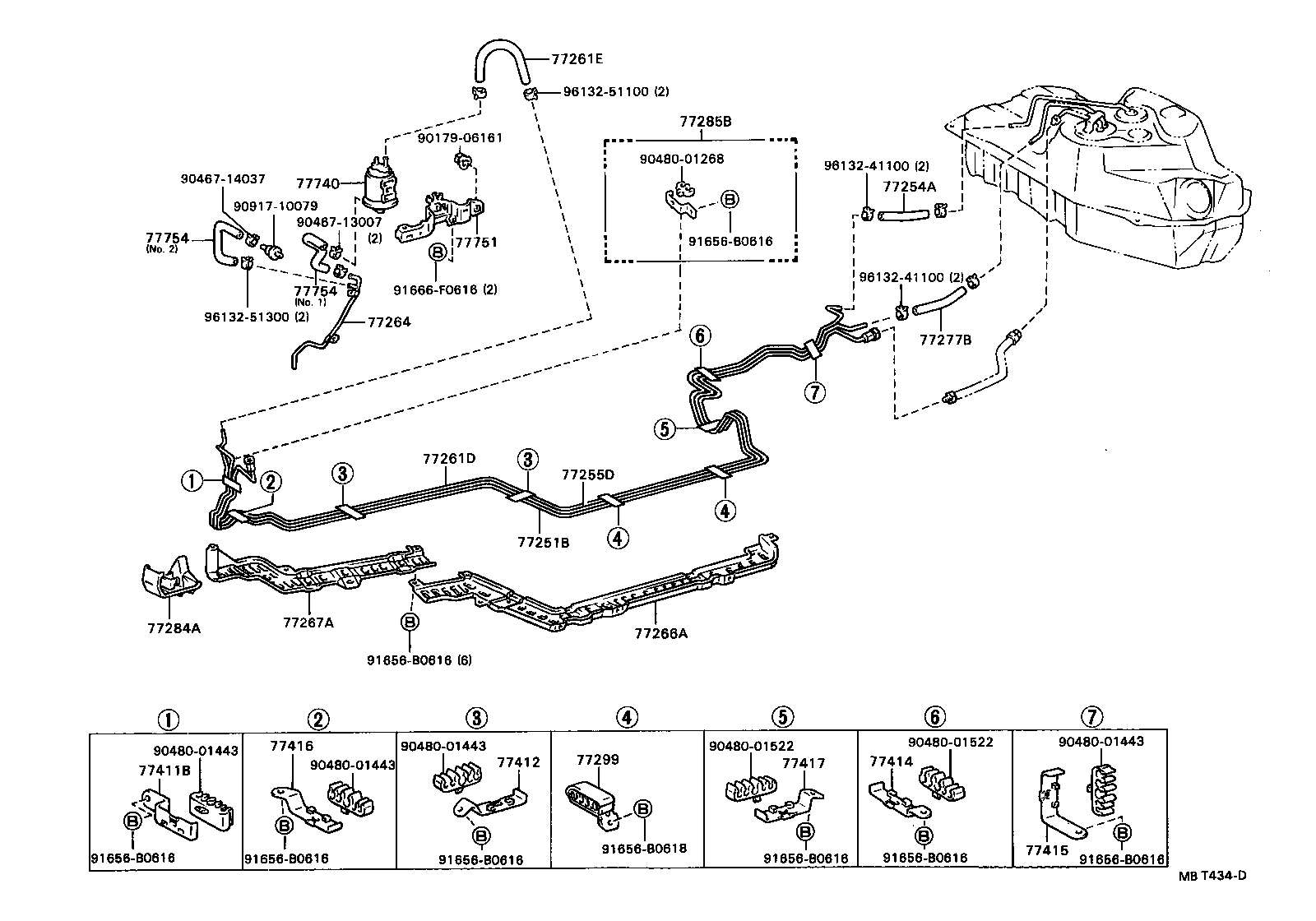

Click highlighted areas on diagram

Part #	Description	Period	Qty
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77259-20060	ST18#..GT4,GTR,SR,ZR 長さ=240	09/1989 - 08/1990	1
77259-20120	ST18#..CV,GT4,GT4A,GTR,SR,ZR 長さ=170	08/1990 - 08/1991	1
77264 - TUBE, CANISTER TO FRONT SIDE MEMBER
77264-20080	ST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR	09/1989 - 09/1993	1
77284A - PROTECTOR, FUEL TUBE, NO.3
77284-20020	ST18#	09/1989 - 09/1993	1
77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1
77285-20060	ST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR	09/1989 - 09/1993	1
77411B - SUPPORT, FUEL TUBE GROMMET, NO.1
77411-20030	ST18#	09/1989 - 09/1993	1
77740 - CANISTER ASSY, CHARCOAL
77704-20260	ST18#	08/1990 - 08/1991	1
77704-20230	ST18#..GT4,GTR,SR,ZR	09/1989 - 08/1990	1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-20230	ST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR	09/1989 - 09/1993	1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-20110	ST18#..CV,GT4,GT4A,GTR,SR,ZR NO.2	09/1989 - 08/1991	1
77754-20100	ST18#..CV,GT4,GT4A,GTR,SR,ZR NO.1	09/1989 - 08/1991	1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-20110	ST18#..CV,GT4,GT4A,GTR,SR,ZR NO.2	09/1989 - 08/1991	1
77754-20100	ST18#..CV,GT4,GT4A,GTR,SR,ZR NO.1	09/1989 - 08/1991	1
Common parts
90179-06161
90467-13007
90467-14037
90480-01268
90480-01443
90480-01522
90917-10079
91656-B0616
91656-B0618
91666-F0616
96132-41100
96132-51100
96132-51300
