Toyota Celica ST185 FLOOR SIDE MEMBER

Part #	Description	Period	Qty
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-20680	ST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR	09/1989 - 09/1993	1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-20600	ST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR	09/1989 - 09/1993	1
57105A - PLATE SUB-ASSY, FRONT SIDE MEMBER, RH
57105-20060	ST18#	09/1989 - 09/1993	1
57106A - PLATE SUB-ASSY, FRONT SIDE MEMBER, LH
57106-20060	ST18#	09/1989 - 09/1993	1
57111 - MEMBER, FRONT SIDE, RH
57111-20210	ST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR	09/1989 - 09/1993	1
57112 - MEMBER, FRONT SIDE, LH
57112-20220	ST18#..CV,GT4,GT4A,GTR,SR,ZR	09/1989 - 06/1991	1
57115A - PLATE, FRONT SIDE MEMBER, OUTER RH
57115-20140	ST18#	09/1989 - 09/1993	1
57116A - PLATE, FRONT SIDE MEMBER, OUTER LH
57116-20150	ST18#	09/1989 - 09/1993	1
57117A - REINFORCEMENT, FRONT BUMPER MOUNTING
57117-20070	ST18#	09/1989 - 09/1993	1
57118A - REINFORCEMENT, FRONT BUMPER MOUNTING, LH
57118-20040	ST18#	09/1989 - 09/1993	1
57173B - REINFORCEMENT, FRONT BUMPER MOUNTING, RH
57173-20030	ST18#	09/1989 - 09/1993	1
57174B - REINFORCEMENT, FRONT CROSSMEMBER, NO.3 LH
57174-20030	ST18#	09/1989 - 09/1993	1
57411A - MEMBER, FLOOR SIDE, INNER RH
57411-20100	ST18#	09/1989 - 09/1993	1
57412A - MEMBER, FLOOR SIDE, INNER LH
57412-20220	ST18#	09/1989 - 09/1993	1
61665D - PLATE, SAFETY BELT ANCHORAGE
61665-22010	ST18#..LB	09/1989 - 09/1993	2
61665D - PLATE, SAFETY BELT ANCHORAGE
61665-22010	ST18#..LB	09/1989 - 09/1993	2
Common parts
90333-30002
90950-01159
90950-01257
90950-01356
90950-01379
90950-01433
90950-01453
90950-01511
90950-01512
90950-01518
90950-01602
90950-01631

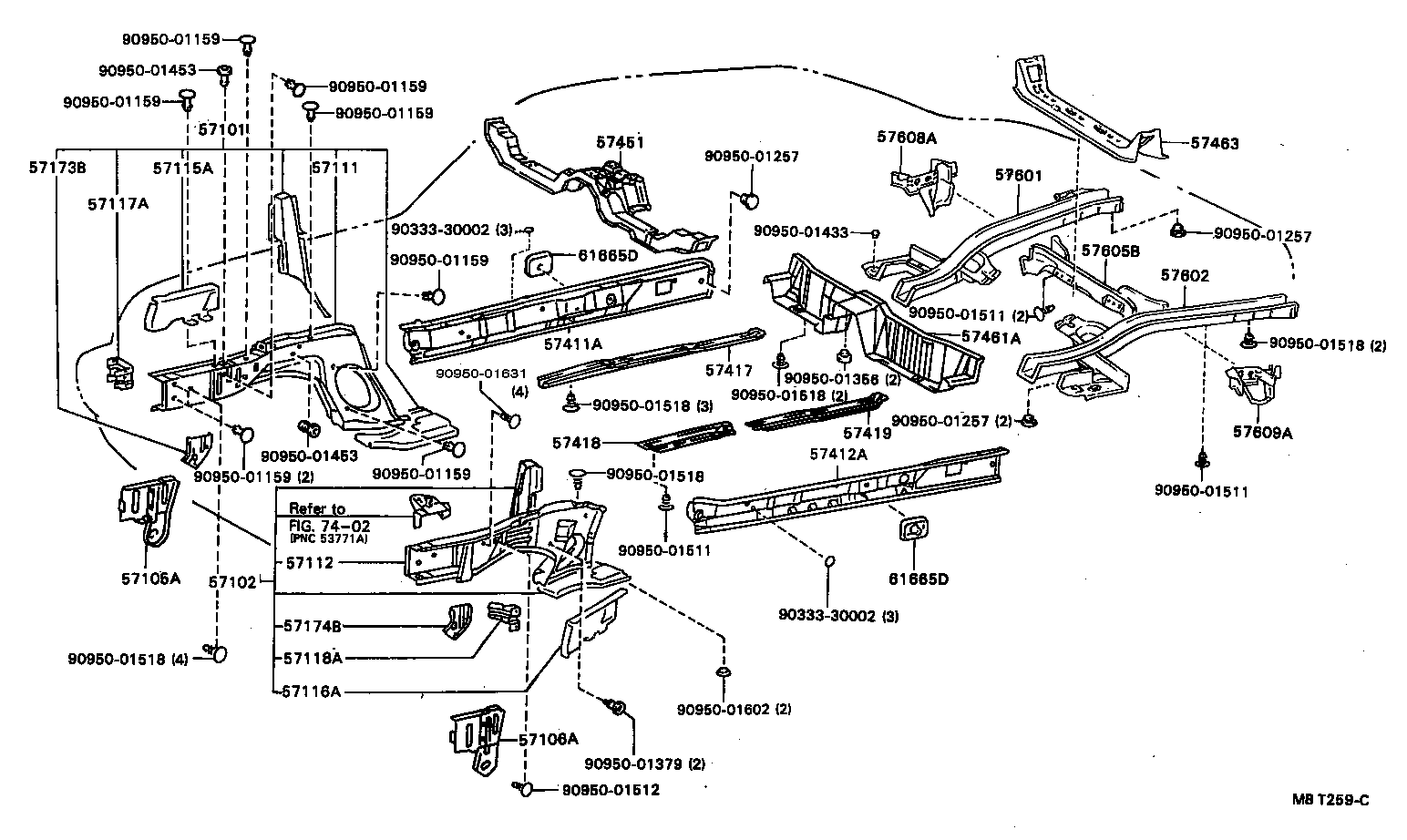

Linked diagrams
7402

ST185-BLMVZ (1989)

(8910- )ST185
