ST185-BLMVZ (1989)
Toyota Celica
Production
Oct 1989
-
Aug 1991
Engine
3SGTE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8909-9108)LB ; (9009-9109)CV

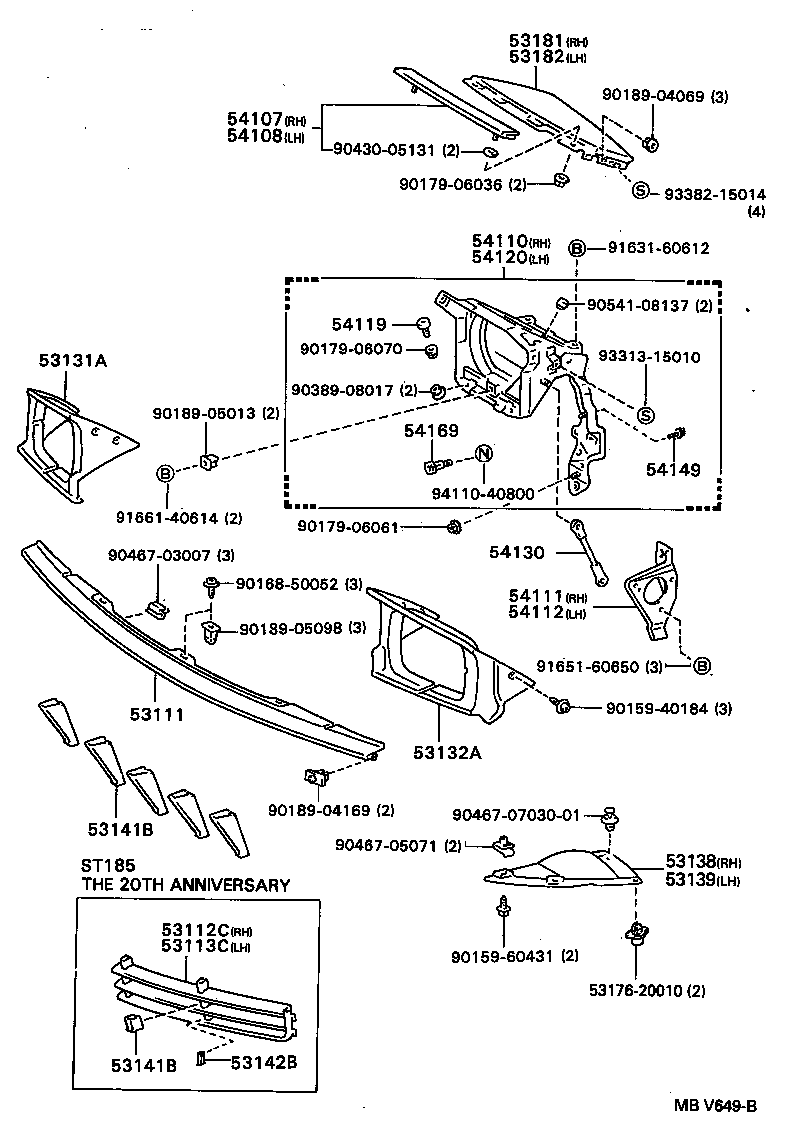

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53111-20650 |
ST18# |
1 | ||
| 53112C - GRILLE, RADIATOR, LOWER RH | ||||
| 53112-2014002 |
ST185 RED MICA,3H4 |
1 | ||
| 53112-2014012 |
ST185 SUPER RED 2,3E5 |
1 | ||
| 53112-2014017 |
ST185 BLACKISH KHAKI M,6K8 |
1 | ||
| 53112-2014008 |
ST185 SUPER WHITE 2,040 |
1 | ||
| 53112-2014013 |
ST185 BLUISH GRAY M,182 |
1 | ||
| 53113C - GRILLE, RADIATOR, LOWER LH | ||||
| 53113-2008002 |
ST185 RED M1CA,3H4 |
1 | ||
| 53113-2008017 |
ST185 BLACKISH KHAKI M,6K8 |
1 | ||
| 53113-2008008 |
ST185 SUPER WHITE 2,040 |
1 | ||
| 53113-2008013 |
ST185 BLUISH GRAY M,182 |
1 | ||
| 53113-2008012 |
ST185 SUPER RED 2,3E5 |
1 | ||
| 53131A - DOOR, HEADLAMP, RH | ||||
| 53131-20290 |
ST18# |
1 | ||
| 53132A - DOOR, HEADLAMP, LH | ||||
| 53132-20260 |
ST18# |
1 | ||
| 53138 - PROTECTOR, HEADLAMP DOOR, RH | ||||
| 53138-20040 |
ST185 |
1 | ||
| 53139 - PROTECTOR, HEADLAMP DOOR, LH | ||||
| 53139-20080 |
ST185 |
1 | ||
| 53141B - GARNISH, RADIATOR GRILLE, NO.1 | ||||
| 53141-20040 |
ST185 |
12 | ||
| 53141B - GARNISH, RADIATOR GRILLE, NO.1 | ||||
| 53141-20040 |
ST185 |
12 | ||
| 53181 - COVER, HEADLAMP, RH | ||||
| 53181-20020 |
ST18# |
1 | ||
| 53182 - COVER, HEADLAMP, LH | ||||
| 53182-20020 |
ST18# |
1 | ||
| 54107 - GARNISH SUB-ASSY, RETRACTABLE HEADLAMP, RH | ||||
| 54107-20030 |
ST18# |
1 | ||
| 54108 - GARNISH SUB-ASSY, RETRACTABLE HEADLAMP, LH | ||||
| 54108-20030 |
ST18# |
1 | ||
| 54110 - BRACKET ASSY, RETRACTABLE HEADLAMP, RH | ||||
| 54110-20050 |
ST18# |
1 | ||
| 54111 - BRACKET, RETRACTABLE HEADLAMP, NO.1 RH | ||||
| 54111-20030 |
ST18# |
1 | ||
| 54112 - BRACKET, RETRACTABLE HEADLAMP, NO.1 LH | ||||
| 54112-20030 |
ST18# |
1 | ||
| 54119 - STOP, RETRACTABLE HEADLAMP LINK | ||||
| 54119-14010 |
ST18# |
2 | ||
| 54120 - BRACKET ASSY, RETRACTABLE HEADLAMP, LH | ||||
| 54120-20050 |
ST18# |
1 | ||
| 54130 - ROD ASSY, RETRACTABLE HEADLAMP | ||||
| 54130-20020 |
ST18# |
2 | ||
| 54149 - BOLT, RETRACTABLE HEADLAMP STOP | ||||
| 54149-20010 |
ST18# |
2 | ||
| 54169 - STOP, RETRACTABLE HEADLAMP LINK DOWN | ||||
| 54169-20030 |
ST18# L=21.5 |
2 | ||
| 54169-20020 |
ST18# L=46.3 |
2 | ||
| Common parts | ||||
| 53176-20010 | ||||
| 90159-40184 | ||||
| 90159-60431 | ||||
| 90168-50052 | ||||
| 90179-06036 | ||||
| 90179-06061 | ||||
| 90179-06070 | ||||
| 90189-04069 | ||||
| 90189-04169 | ||||
| 90189-05013 | ||||
| 90189-05098 | ||||
| 90389-08017 | ||||
| 90430-05131 | ||||
| 90467-03007 | ||||
| 90467-05071 | ||||
| 90467-0703001 | ||||
| 90541-08137 | ||||
| 91631-60612 | ||||
| 91651-60650 | ||||
| 91661-40614 | ||||
| 93313-15010 | ||||
| 93382-15014 | ||||
| 94110-40800 | ||||
