ST185-BLMVZ (1989)

Toyota Celica

Production Oct 1989 - Aug 1991
Engine 3SGTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

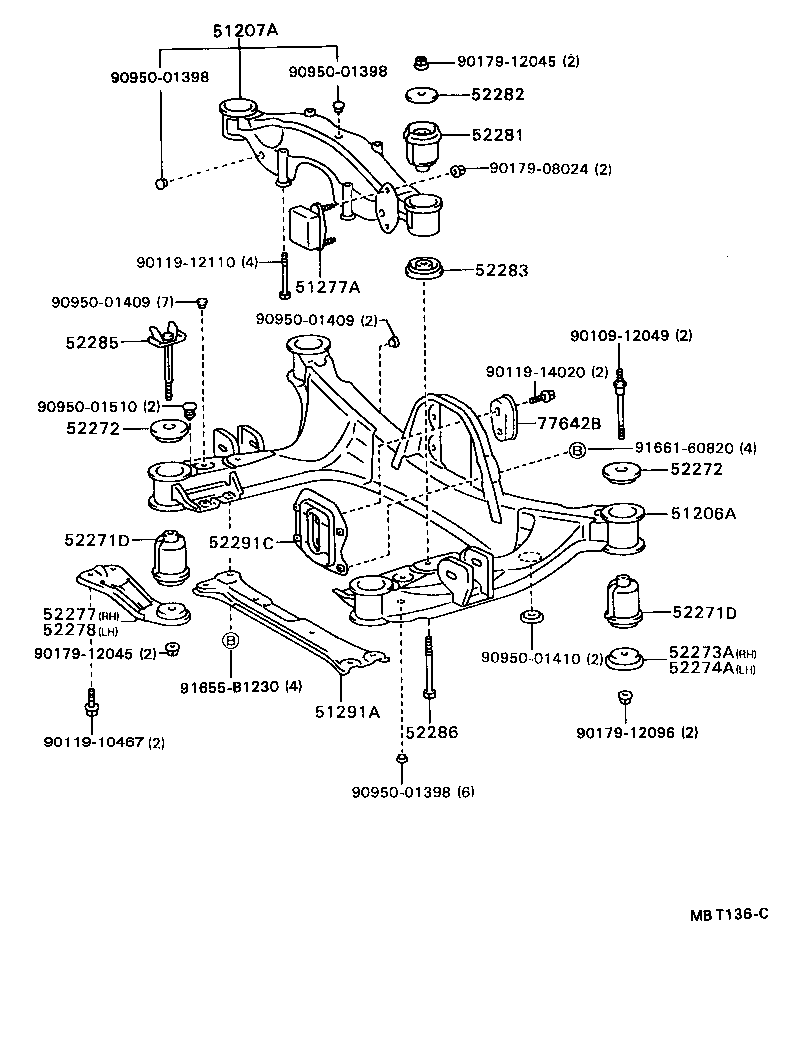

ILLUST NO. 2 OF 2(8910- )ST185

Click highlighted areas on diagram

diagram 51206A 51207A 51277A 51291A 52271D 52271D 52272 52272 52273A 52274A 52277 52278 52281 52282 52283 52285 52286 52291C 77642B 9010912049 9011910467 9011912110 9011914020 9017908024 9017912045 9017912045 9017912096 9095001398 9095001398 9095001398 9095001409 9095001409 9095001410 9095001510 91655B1230 9166160820
Part # Description Qty Price
52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT
52271-20010

ST185

 4
52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT
52271-20010

ST185

 4
Common parts
90109-12049
90119-10467
90119-12110
90119-14020
90179-08024
90179-12045
90179-12096
90950-01398
90950-01409
90950-01410
90950-01510
91655-B1230
91661-60820
