ST185-BLMVZ (1989)
Toyota Celica
(8910- )ST185
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-20690 |
ST18# |
1 | ||
| 47311-20720 |
ST18# ｱﾘ(*66) |
1 | ||
| 47311-20790 |
ST18#..GT4,GT4A,GTR,SR,ZR |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90413-10208 |
ST18#..GT4,GT4A,GT4RC,GTR,SR,ZR |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-20200 |
ST18#..GT4,GT4A,GT4RC,GTR,SR,ZR |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-20460 |
ST18#..GT4,GT4A,GTR,SR,ZR |
1 | ||
| 47313-20490 |
ST18# ｱﾘ(*66) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02594 |
ST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02594 |
ST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
ST18# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
ST18# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
ST18# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-20370 |
ST18#..GT4,GT4A,GTR,SR,ZR |
1 | ||
| 47314-20380 |
ST18#..GT4,GTR,SR,ZR ｱﾘ(*66) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-20470 |
ST18#..GT4,GT4A,GT4RC,GTR,SR,ZR |
1 | ||
| 47315-20500 |
ST18#..GT4,GT4A,GT4RC,GTR,SR,ZR ｱﾘ(*66) |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
ST18# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
ST18# |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
ST18# |
4 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-20030 |
ST18#..GT4,GT4A,GTR,SR,ZR |
1 | ||
| 47371-20150 |
ST18#..GT4,GT4A,GTR,SR,ZR ｱﾘ(*66) |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-20210 |
ST18# |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-20160 |
ST18# |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-20230 |
ST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR |
1 | ||
| Common parts | ||||
| 90119-06437 | ||||
| 90179-06009 | ||||
| 90179-06158 | ||||
| 90179-08146 | ||||
| 90461-06139 | ||||
| 90468-08032 | ||||
| 91651-B0614 | ||||

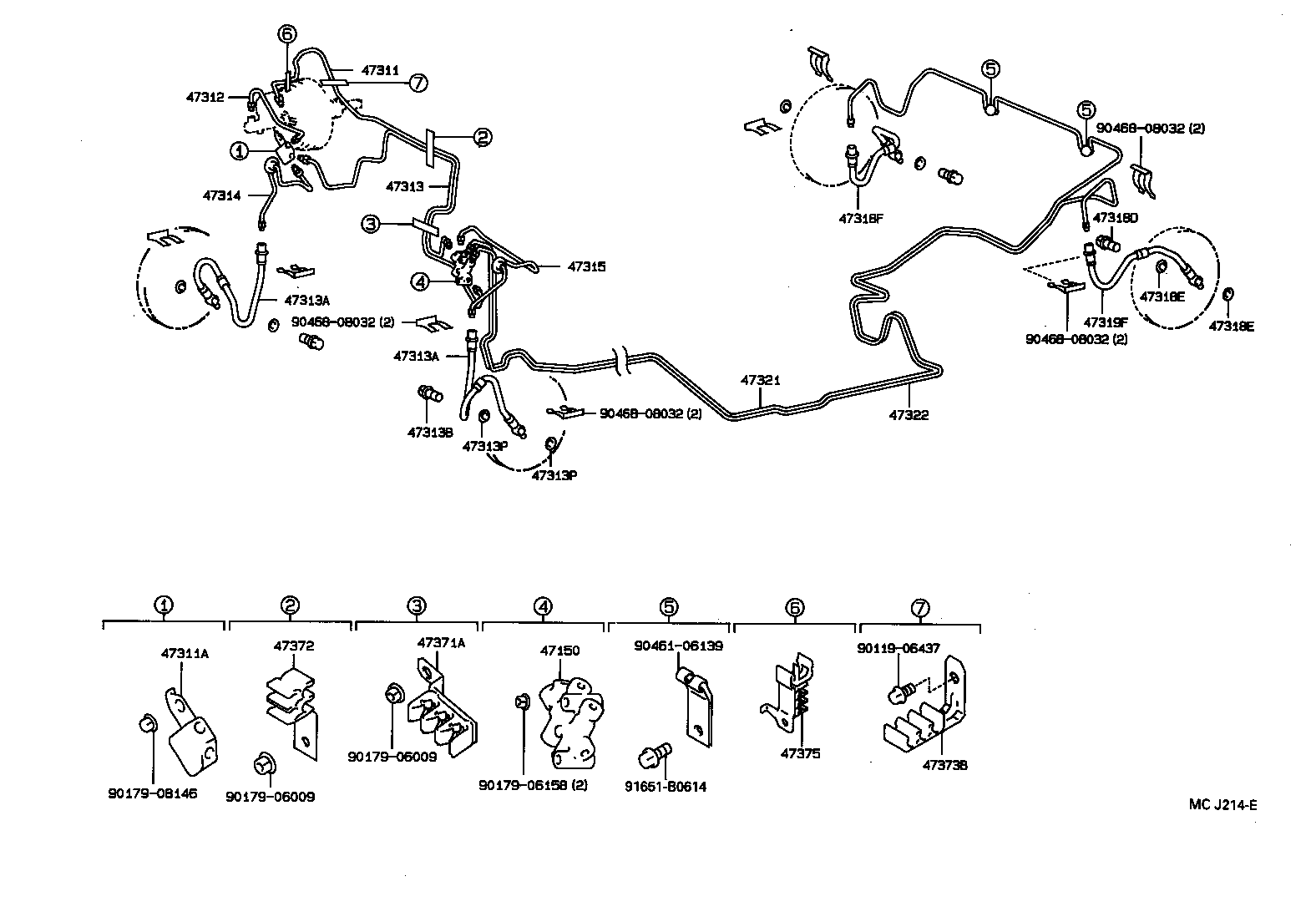

ILLUST NO. 1 OF 2(8910- )ST185
ｱﾘ(ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-20690 |
ST18# |
1 | ||
| 47311-20720 |
ST18# ｱﾘ(*66) |
1 | ||
| 47311-20790 |
ST18#..GT4,GT4A,GTR,SR,ZR |
1 | ||
| 47311J - GROMMET, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90480-01433 |
ST18# |
1 | ||
| 47312B - GROMMET, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90480-01556 |
ST18# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-20460 |
ST18#..GT4,GT4A,GTR,SR,ZR |
1 | ||
| 47313-20490 |
ST18# ｱﾘ(*66) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02594 |
ST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02594 |
ST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
ST18# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
ST18# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
ST18# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-20370 |
ST18#..GT4,GT4A,GTR,SR,ZR |
1 | ||
| 47314-20380 |
ST18#..GT4,GTR,SR,ZR ｱﾘ(*66) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-20470 |
ST18#..GT4,GT4A,GT4RC,GTR,SR,ZR |
1 | ||
| 47315-20500 |
ST18#..GT4,GT4A,GT4RC,GTR,SR,ZR ｱﾘ(*66) |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-20460 |
ST18# |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-20101 |
ST18# |
1 | ||
| 47317-20100 |
ST18# |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-20230 |
ST18# |
1 | ||
| 47318-20231 |
ST18# |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
ST18# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
ST18# |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
ST18# |
4 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10140 |
ST18# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-20030 |
ST18#..GT4,GT4A,GTR,SR,ZR |
1 | ||
| 47371-20150 |
ST18#..GT4,GT4A,GTR,SR,ZR ｱﾘ(*66) |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-20210 |
ST18# |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-20160 |
ST18# |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-20200 |
ST18# |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-20230 |
ST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR |
1 | ||
| Common parts | ||||
| 90119-06437 | ||||
| 90179-06009 | ||||
| 90179-06158 | ||||
| 90461-06139 | ||||
| 90468-08032 | ||||
| 91651-B0614 | ||||
