ST185-BLMVZ (1989)
Toyota Celica
Production
Oct 1989
-
Aug 1991
Engine
3SGTE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

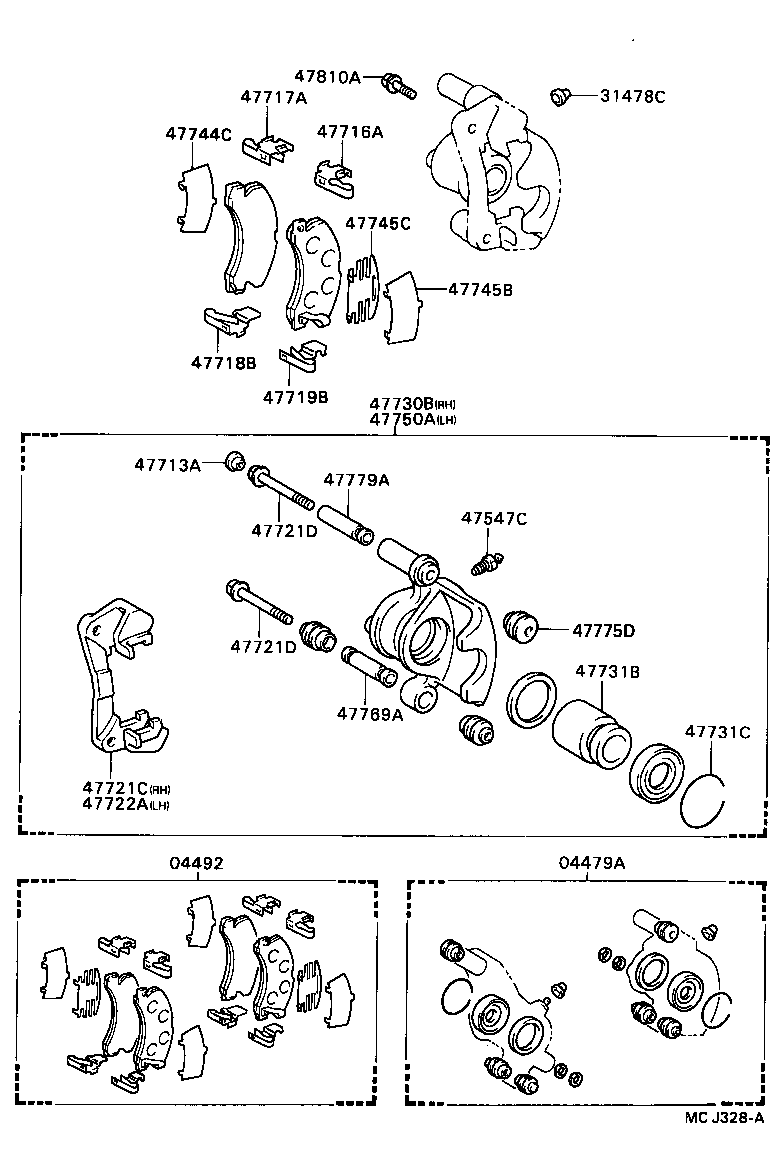

ILLUST NO. 1 OF 2(8910- )ST185 ; (9108- )GTR
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-20120 |
ST185 |
1 | ||
| 04492 - PAD KIT, DISC BRAKE, REAR | ||||
| 04492-32061 |
ST185 |
1 | ||
| 04492-20050 |
ST185 |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
ST18# |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-20010 |
ST18# |
2 | ||
| 47713A - PLUG, HOLE(FOR REAR DISC BRAKE CYLINDER) | ||||
| 90950-01538 |
ST185 |
2 | ||
| 47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47716-32020 |
ST185 |
2 | ||
| 47717A - PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE) | ||||
| 47717-32020 |
ST185 |
2 | ||
| 47718B - PLATE, PAD SUPPORT, NO.3(FOR REAR DISK BRAKE) | ||||
| 47718-32010 |
ST185 |
2 | ||
| 47716-32020 |
ST185 |
2 | ||
| 47719B - PLATE, PAD SUPPORT, NO.4(FOR REAR DISK BRAKE) | ||||
| 47717-32020 |
ST185 |
2 | ||
| 47719-32010 |
ST185 |
2 | ||
| 47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47721-32130 |
ST185 |
1 | ||
| 47721-32040 |
ST185 |
1 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90119-08547 |
ST185 *8−1.25PX68−30 |
2 | ||
| 90105-08133 |
ST185 *8−1.25PX58−25 |
2 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90119-08547 |
ST185 *8−1.25PX68−30 |
2 | ||
| 90105-08133 |
ST185 *8−1.25PX58−25 |
2 | ||
| 47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47721-32040 |
ST185 |
1 | ||
| 47721-32130 |
ST185 |
1 | ||
| 47730B - CYLINDER ASSY, REAR DISC BRAKE, RH | ||||
| 47730-20260 |
ST185 |
1 | ||
| 47730-32150 |
ST185 |
1 | ||
| 47731B - PISTON, REAR DISC BRAKE | ||||
| 47731-20130 |
ST185 |
2 | ||
| 47731C - RING, SET(FOR REAR DISC BRAKE PISTON) | ||||
| 90522-43003 |
ST185 |
2 | ||
| 47744C - SHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE) | ||||
| 47744-32021 |
ST185 |
2 | ||
| 47745B - SHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE) | ||||
| 47745-32030 |
ST185..GT4 |
2 | ||
| 47745-32030 |
ST18# |
2 | ||
| 47745C - SHIM, ANTI-SQUEAL, NO.3(FOR REAR DISC BRAKE) | ||||
| 47742-32031 |
ST185 |
2 | ||
| 47742-32031 |
ST18# |
2 | ||
| 47750A - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47750-20260 |
ST185 |
1 | ||
| 47750-32150 |
ST185 |
1 | ||
| 47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47769-32020 |
ST185 |
2 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47775-32020 |
ST185 |
2 | ||
| 47779A - BUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE) | ||||
| 47779-32020 |
ST185 |
2 | ||
