ST185-BLMVZ (1989)
Toyota Celica
Production
Oct 1989
-
Aug 1991
Engine
3SGTE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8910-9108)ST185

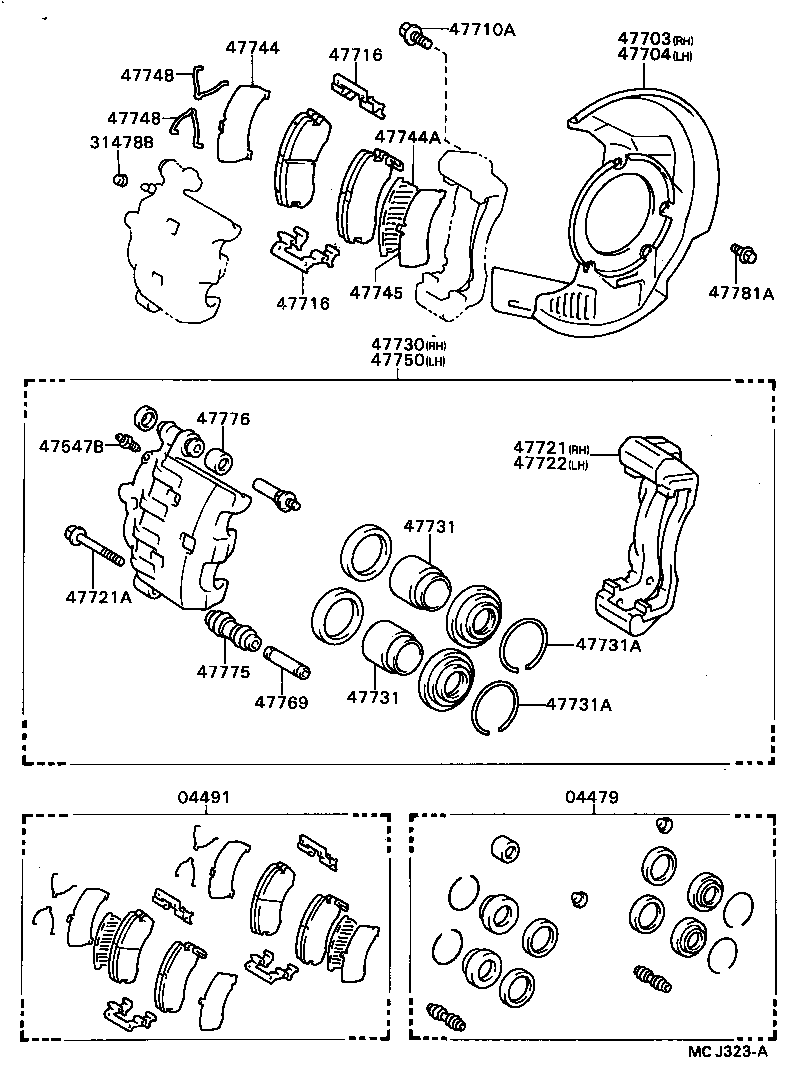

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-20110 |
ST185 |
1 | ||
| 04491 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-20700 |
ST185 |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
ST18# |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20010 |
ST18# |
2 | ||
| 47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH | ||||
| 47703-20090 |
ST18# |
1 | ||
| 47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH | ||||
| 47704-20090 |
ST18# |
1 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90105-12131 |
ST18# *12−1.25PX25.5−23 |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-20080 |
ST185 |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-20080 |
ST185 |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-20290 |
ST185 |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-10403 |
ST185 *10−1.25PX65−20 |
2 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47721-20290 |
ST185 |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-20400 |
ST185 |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-30070 |
ST185 |
4 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-30070 |
ST185 |
4 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-49001 |
ST185 |
4 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-49001 |
ST185 |
4 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-20080 |
ST185 |
2 | ||
| 47744A - SHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE) | ||||
| 47742-20080 |
ST185 |
2 | ||
| 47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47745-20080 |
ST185 |
2 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47748-20020 |
ST185 |
4 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47748-20020 |
ST185 |
4 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-20400 |
ST185 |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-28020 |
ST185 |
2 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-28020 |
ST185 |
2 | ||
| 47776 - BOOT, MAIN PIN(FOR FRONT DISC BRAKE) | ||||
| 47776-20020 |
ST185 |
2 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90109-06192 |
ST18# |
8 | ||
