ST185-BLMVZ (1989)

Toyota Celica

Production Oct 1989 - Aug 1991
Engine 3SGTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

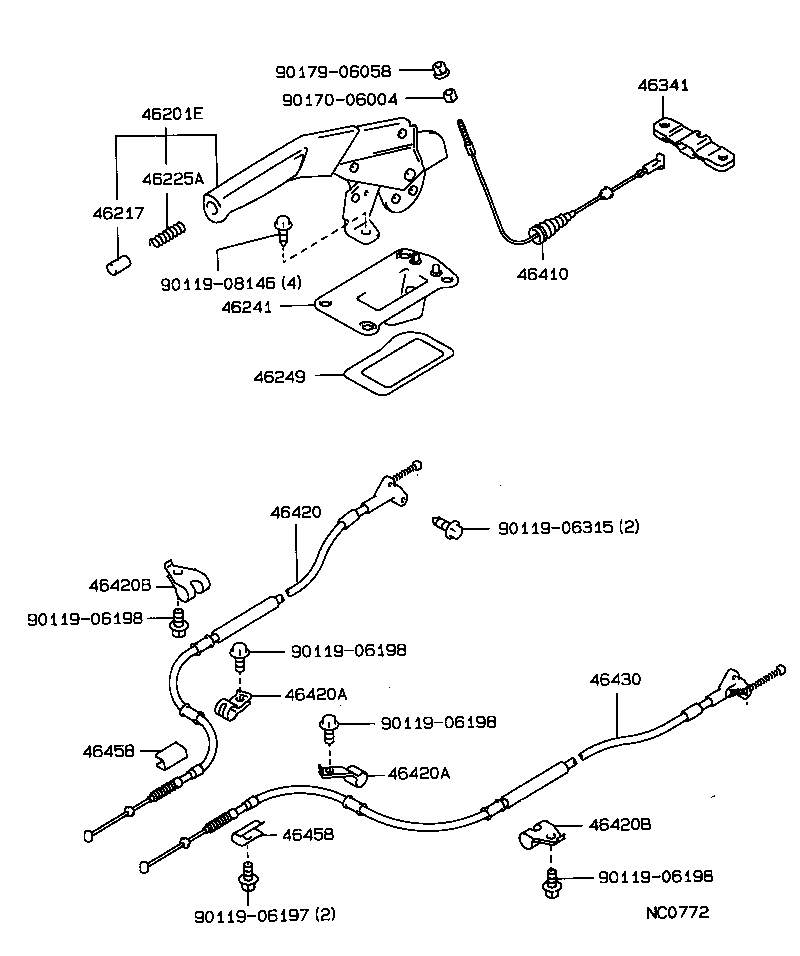

ILLUST NO. 1 OF 2(8910- )ST185

Click highlighted areas on diagram

diagram 46201E 46217 46225A 46241 46249 46341 46410 46420 46420A 46420A 46420B 46420B 46430 46458 46458 9011906197 9011906198 9011906198 9011906198 9011906198 9011906315 9011908146 9017006004 9017906058
Part # Description Qty Price
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-1202003

ST18#

SHADOW GRAY,TRIM1#

 1
46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
90501-10069

ST18#

 1
46249 - SHIELD, PARKING BRAKE HOLE
46249-20030

ST18#

 1
46341 - EQUALIZER, PARKING BRAKE
46341-16020

ST18#

 1
46458 - RETAINER, CABLE
46458-50010

ST18#

 2
46458 - RETAINER, CABLE
46458-50010

ST18#

 2
Common parts
90119-06197
90119-06198
90119-06315
90119-08146
90170-06004
90179-06058
