ST185-BLMVZ (1989)

Toyota Celica

Production Oct 1989 - Aug 1991
Engine 3SGTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

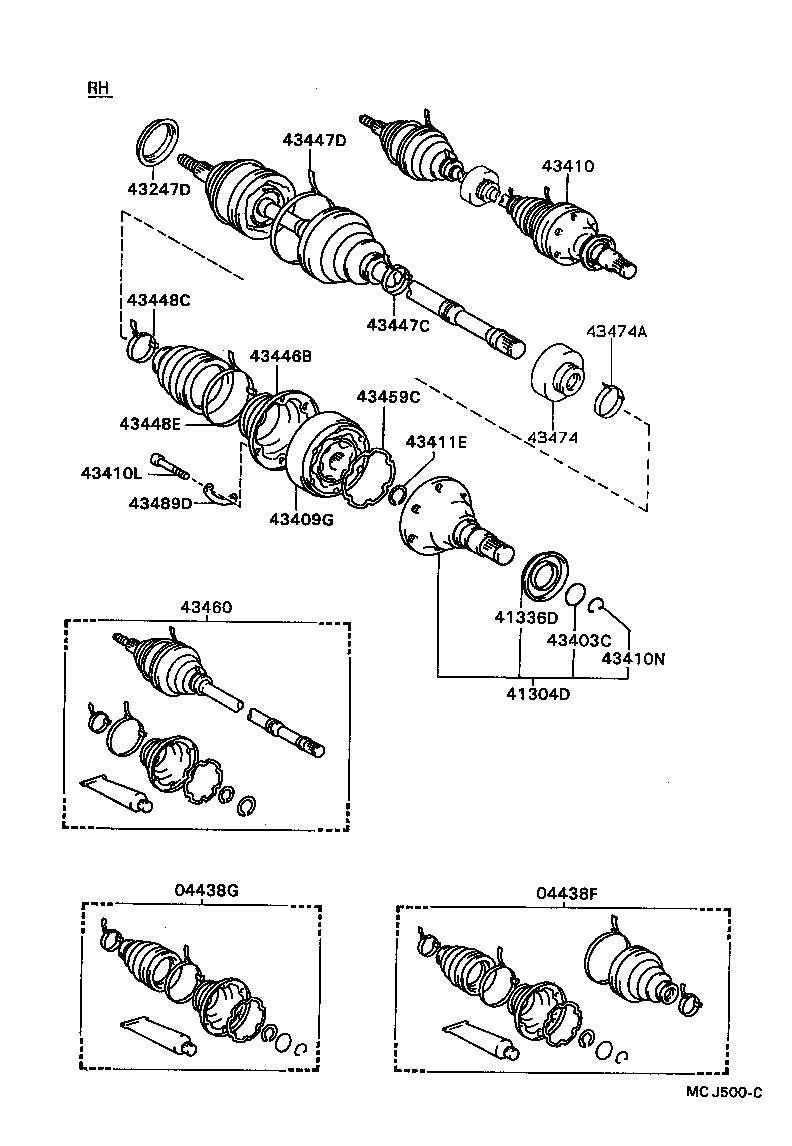

(8910-9108)ST185

Click highlighted areas on diagram

diagram 04438F 04438G 41304D 41336D 43247D 43403C 43409G 43410 43410L 43410N 43411E 43446B 43447C 43447D 43448C 43448E 43459C 43460 43474 43474A 43489D
Part # Description Qty Price
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04438-20050

ST185

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438-20040

ST185

 1
43247D - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 RH
43247-32011

ST18#..GT4,GT4A,GTR,SR,ZR

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-20320

ST185

ｱﾘ(*66)

 1
43410-32111

ST185

 1
43410-20321

ST185

ｱﾘ(*66)

 1
43410-32110

ST185

 1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-14010

ST185;ST182,183..ATM..(SR,ZR)

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43470-29216

ST185

ｱﾘ(*66)

 1
43470-39065

ST185

 1
43470-29215

ST185

ｱﾘ(*66)

 1
43470-39066

ST185

 1

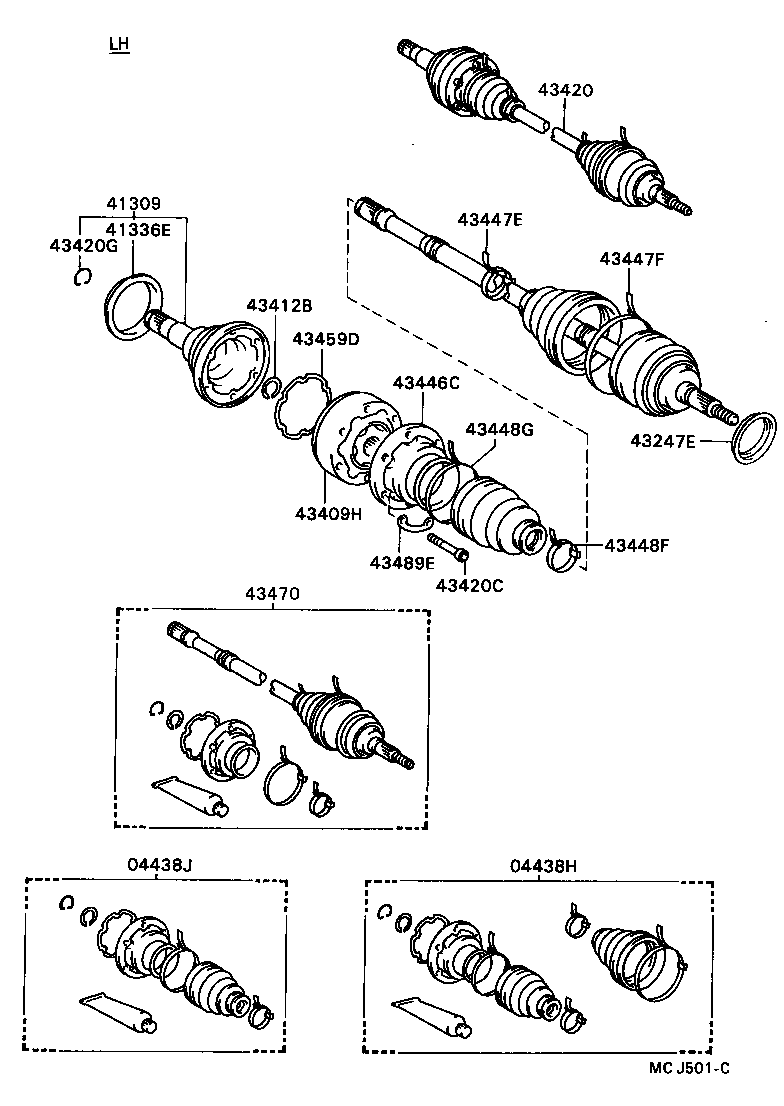

(8910- )ST185

Click highlighted areas on diagram

diagram 04438H 04438J 41309 41336E 43247E 43409H 43412B 43420 43420C 43420G 43446C 43447E 43447F 43448F 43448G 43459D 43470 43489E
Part # Description Qty Price
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04438-20050

ST185

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-20040

ST185

 1
43247E - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 LH
43247-32011

ST182,185

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-20270

ST185

ｱﾘ(*66)

 1
43420-32090

ST185

 1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-14010

ST185;ST182,183..ATM..(SR,ZR)

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-39065

ST185

 1
43470-29216

ST185

ｱﾘ(*66)

 1
43470-29215

ST185

ｱﾘ(*66)

 1
43470-39066

ST185

 1
