ST185-BLMVZ (1989)

Toyota Celica

Production Oct 1989 - Aug 1991
Engine 3SGTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8910- )ST185

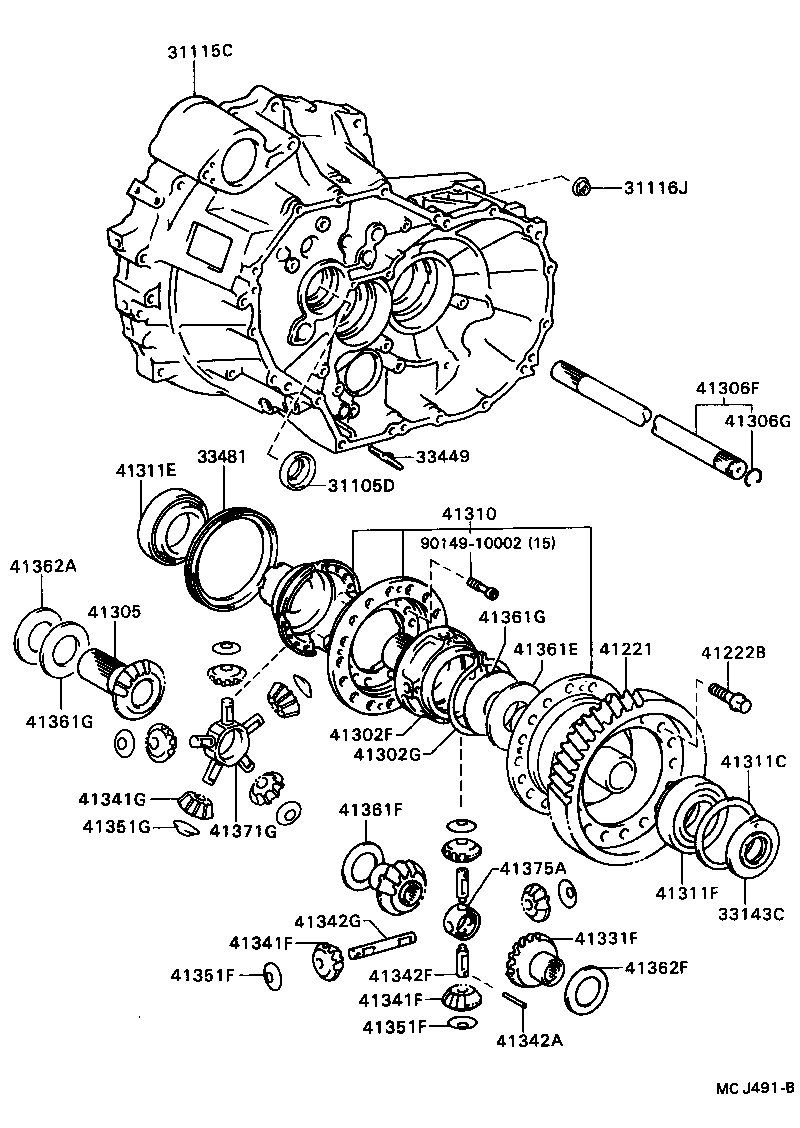

Click highlighted areas on diagram

E150F,E151F,E152F

diagram 31105D 31115C 31116J 33143C 33449 33481 41221 41222B 41302F 41302G 41305 41306F 41306G 41310 41311C 41311E 41311F 41331F 41341F 41341F 41341G 41342A 41342F 41342G 41351F 41351F 41351G 41361E 41361F 41361G 41361G 41362A 41362F 41371G 41375A 9014910002
Part # Description Qty Price
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-30006

ST18#..MTM

 1
31115C - CASE, FRONT TRANSAXLE(MTM)
31115-20020

ST185

 1
Common parts
90149-10002
