ST185-BLMVZ (1989)

Toyota Celica

Production Oct 1989 - Aug 1991
Engine 3SGTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8910- )ST185

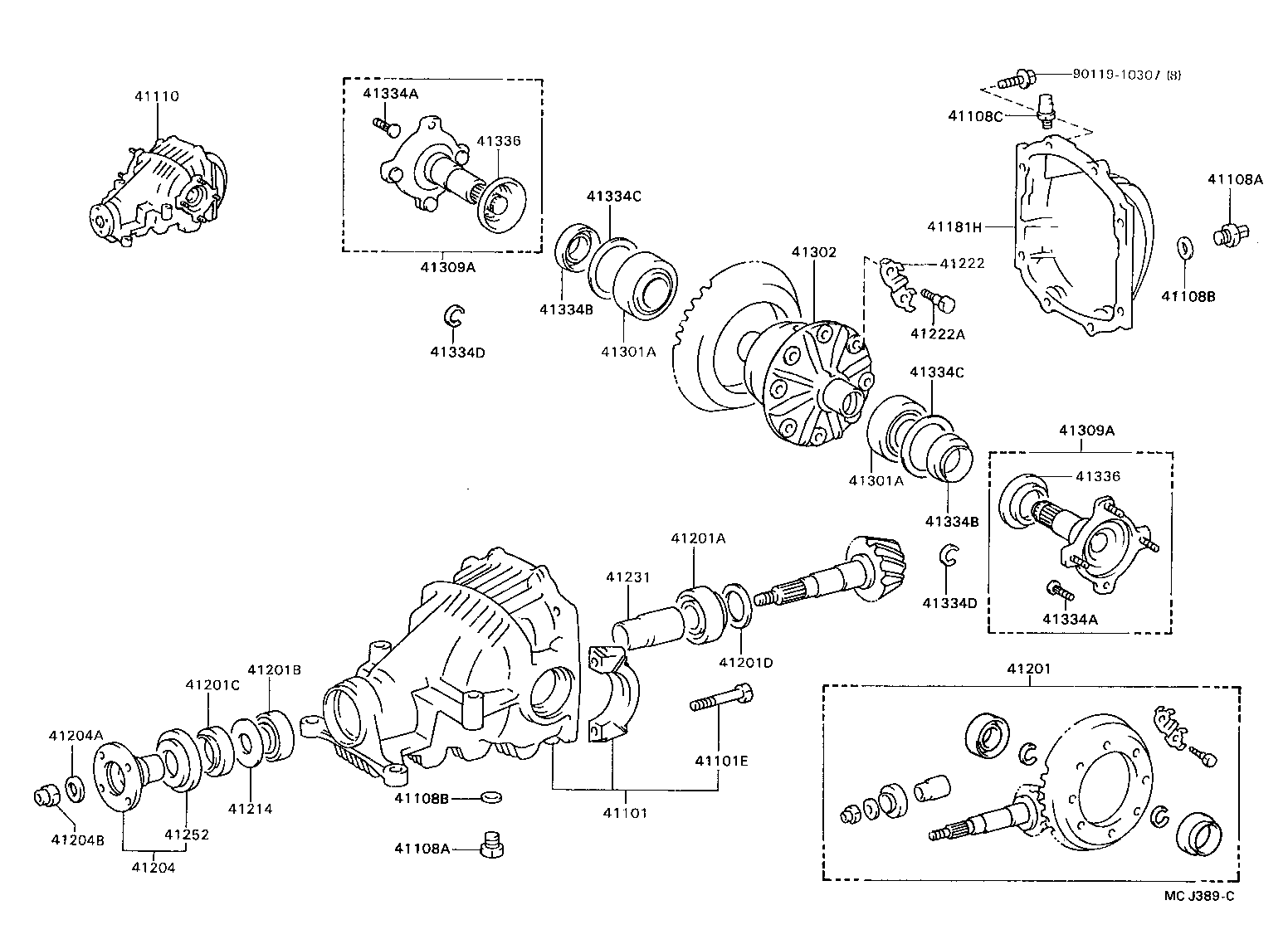

Click highlighted areas on diagram

diagram 41101 41101E 41108A 41108A 41108B 41108B 41108C 41110 41181H 41201 41201A 41201B 41201C 41201D 41204 41204A 41204B 41214 41222 41222A 41231 41252 41301A 41301A 41302 41309A 41309A 41334A 41334A 41334B 41334B 41334C 41334C 41334D 41334D 41336 41336 9011910307
Part # Description Qty Price
41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR
41201-29745

ST185

*FGR=41:14=2.929

 1
Common parts
90119-10307
