ST185-BLMVZ (1989)
Toyota Celica
Production
Oct 1989
-
Aug 1991
Engine
3SGTE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8909-9108)ST185

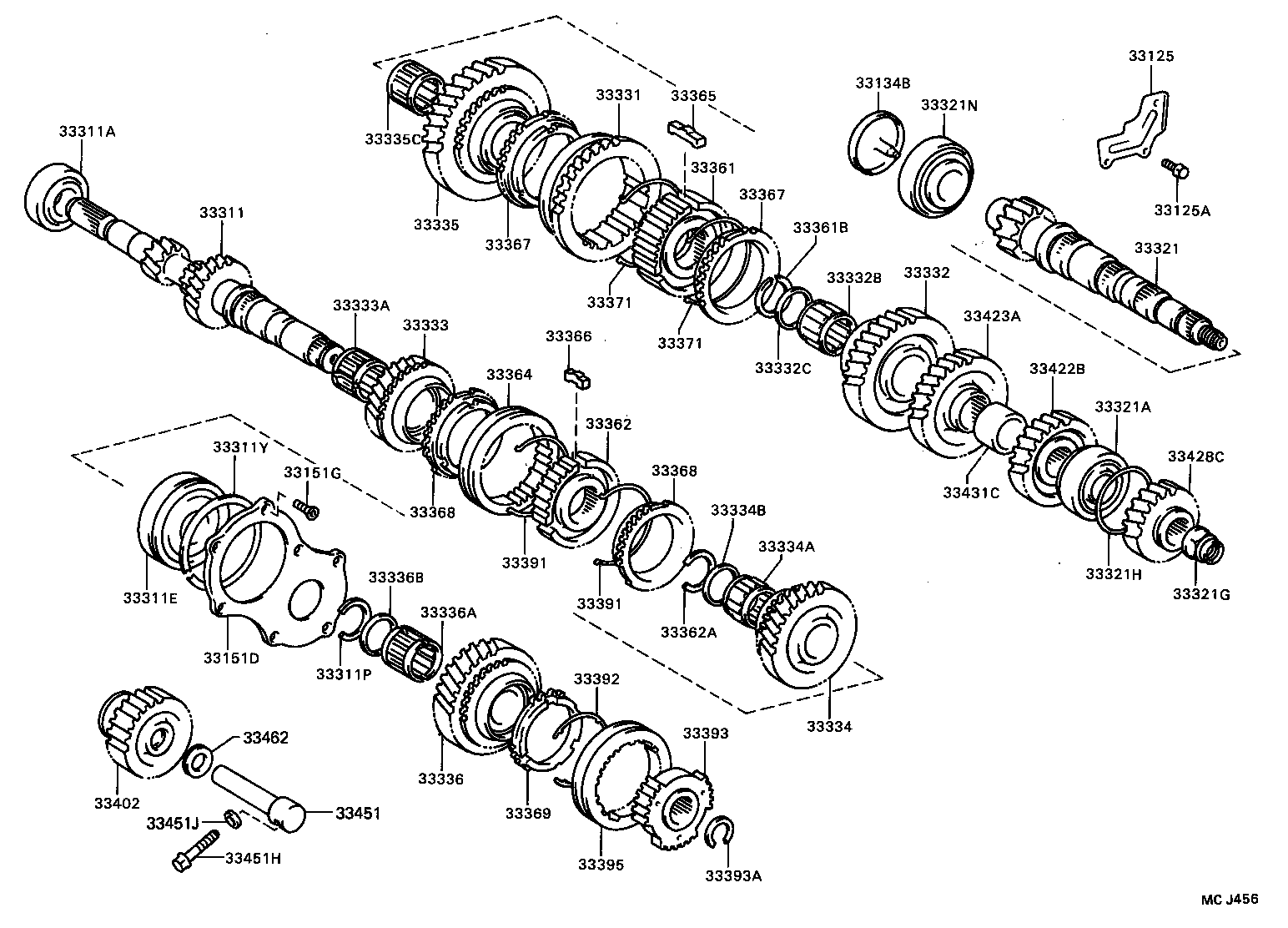

Click highlighted areas on diagram
E150F,E152F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33151D - RETAINER, BEARING, REAR(MTM) | ||||
| 33151-20030 |
ST185 |
1 | ||
| 33151G - SCREW(FOR REAR BEARING RETAINER) | ||||
| 90149-80015 |
ST185 |
7 | ||
| 33311 - SHAFT, INPUT | ||||
| 33311-20120 |
ST185 |
1 | ||
| 33311-20140 |
ST185..GT4 GT-FOUR RALLY |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-20110 |
ST185 |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-20050 |
ST185 |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-20070 |
ST185..GT4 GT-FOUR RALLY |
1 | ||
| 33033-17010 |
ST185 |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-20040 |
ST185 |
1 | ||
| 33034-20051 |
ST185..GT4 GT-FOUR RALLY |
1 | ||
| 33034-20041 |
ST185 |
1 | ||
| 33034-20050 |
ST185..GT4 GT-FOUR RALLY |
1 | ||
| 33334 - GEAR, 4TH | ||||
| 33035-20030 |
ST185 |
1 | ||
| 33035-20031 |
ST185 |
1 | ||
| 33035-20041 |
ST185..GT4 GT-FOUR RALLY |
1 | ||
| 33035-20040 |
ST185..GT4 GT-FOUR RALLY |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-20080 |
ST185..GT4 GT-FOUR RALLY |
1 | ||
| 33032-20070 |
ST185 |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33036-20050 |
ST185 |
1 | ||
| 33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR) | ||||
| 90364-33004 |
ST185 |
1 | ||
| 33336B - SPACER (FOR 5TH GEAR BEARING) | ||||
| 90560-33004 |
ST185 |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-20040 |
ST185 |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-20021 |
ST185 |
1 | ||
| 33362-20020 |
ST185 |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-20024 |
ST185 |
1 | ||
| 33364-20023 |
ST185 |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-20050 |
ST185 |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-20021 |
ST185 |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-20050 |
ST185 2ND GEAR SIDE |
1 | ||
| 33367-20040 |
ST185 1ST GEAR SIDE |
1 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-20050 |
ST185 2ND GEAR SIDE |
1 | ||
| 33367-20040 |
ST185 1ST GEAR SIDE |
1 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20030 |
ST185 |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20030 |
ST185 |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33369-20010 |
ST185 |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-20020 |
ST185 |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-20020 |
ST185 |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-20010 |
ST185 |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-20010 |
ST185 |
2 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33392-20010 |
ST185 |
1 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-20020 |
ST185 |
1 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-20020 |
ST185 |
1 | ||
| 33422B - GEAR, 4TH DRIVEN | ||||
| 33422-20040 |
ST185..GT4 GT-FOUR RALLY |
1 | ||
| 33423A - GEAR, 3RD DRIVEN | ||||
| 33423-20030 |
ST185..GT4 GT-FOUR RALLY |
1 | ||
| 33451J - GASKET (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90430-08010 |
ST18#..MTM |
1 | ||
