ST185-BLMVZ (1989)

Toyota Celica

Production Oct 1989 - Aug 1991
Engine 3SGTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

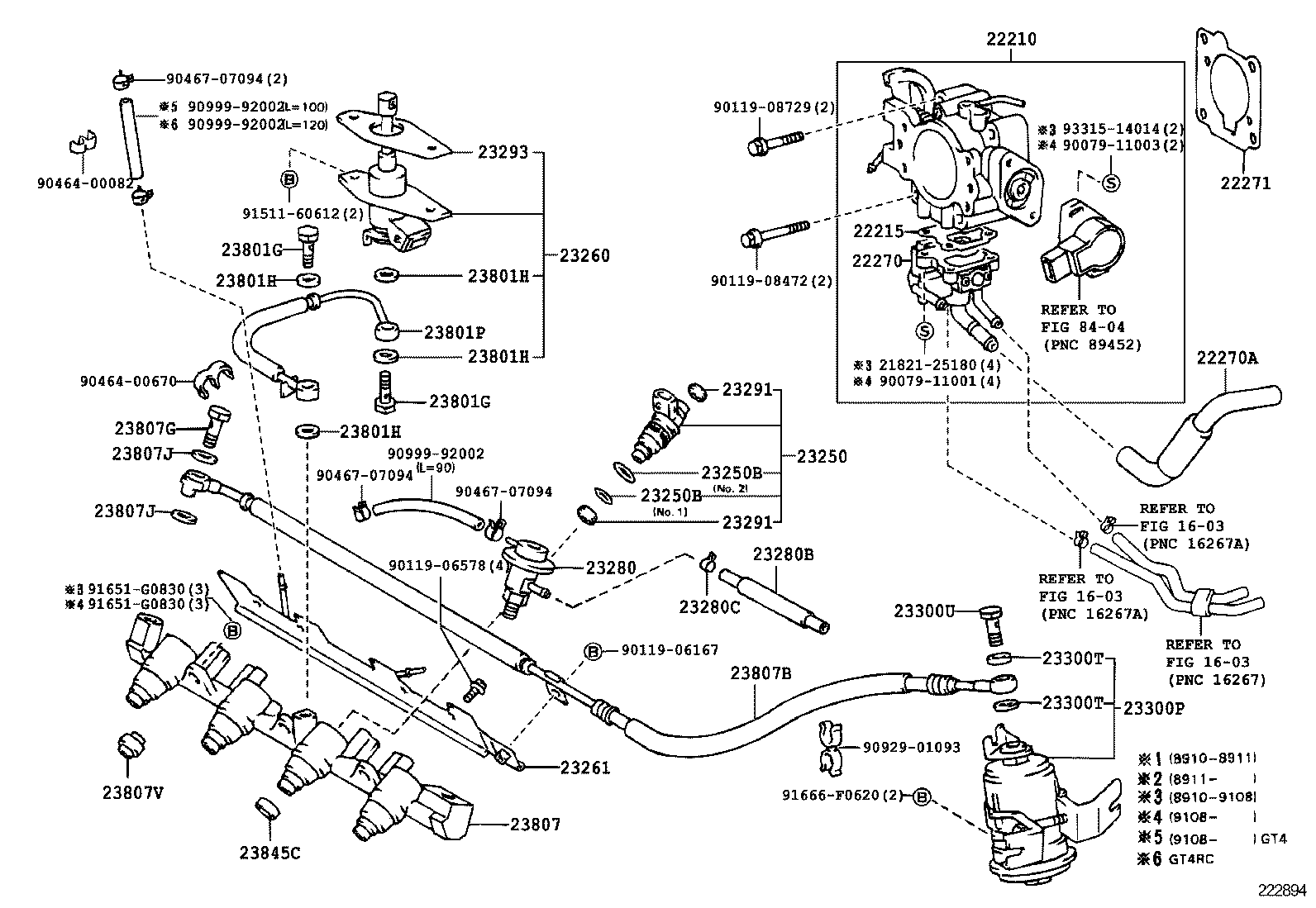

ILLUST NO. 1 OF 2(8910- )3SGTE

Click highlighted areas on diagram

diagram 1603 1603 1603 2182125180 22210 22215 22270 22270A 22271 23250 23250B 23250B 23260 23261 23280 23280B 23280C 23291 23291 23293 23300P 23300T 23300T 23300U 23801G 23801G 23801H 23801H 23801H 23801H 23801P 23807 23807B 23807G 23807J 23807J 23807V 23845C 8404 9007911001 9007911003 9011906167 9011906578 9011908472 9011908729 9046400082 9046400670 9046707094 9046707094 9046707094 9092901093 9099992002 9099992002 9099992002 9151160612 91651G0830 91651G0830 91666F0620 9331514014
Part # Description Qty Price
22210 - BODY ASSY, THROTTLE
22210-74480

3SGTE..ST185

 1
22215 - GASKET, THROTTLE BODY COVER
22215-74380

3SG#..ST18#

 1
23300P - FILTER, FUEL(FOR EFI)
23300-79235

3SFE,3SG#..ST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR

 1
23300T - GASKET(FOR FUEL FILTER)
90430-12005

3SFE,3SG#..ST18#

 2
23300T - GASKET(FOR FUEL FILTER)
90430-12005

3SFE,3SG#..ST18#

 2
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097

3SFE,3SG#..ST18#

 1
23801H - GASKET(FOR FUEL PIPE)
90430-08005

3SGTE..ST185

 4
23801H - GASKET(FOR FUEL PIPE)
90430-08005

3SGTE..ST185

 4
23801H - GASKET(FOR FUEL PIPE)
90430-08005

3SGTE..ST185

 4
23801H - GASKET(FOR FUEL PIPE)
90430-08005

3SGTE..ST185

 4
23807G - BOLT, UNION PIPE FUEL DELIVARY INLET
90401-12097

3SG#..ST18#

 1
23807J - GASKET, PIPE FUEL DELIVARY INLET
90430-12026

3SGTE..ST185

 2
90430-12005

3SG#..ST18#

 2
23807J - GASKET, PIPE FUEL DELIVARY INLET
90430-12026

3SGTE..ST185

 2
90430-12005

3SG#..ST18#

 2
Common parts
21821-25180
90079-11001
90079-11003
90119-06167
90119-06578
90119-08472
90119-08729
90464-00082
90464-00670
90467-07094
90929-01093
90999-92002
91511-60612
91651-G0830
91666-F0620
93315-14014
Linked diagrams
1603
8404

ILLUST NO. 2 OF 2(8910- )3SGTE

Click highlighted areas on diagram

diagram 23091 23206A 23206B 23217A 23220P 23229 23233 23233B 23233B 23249 9015950219 9098004047 9098004061 9411540400 9411540500 9451100400 9451100500
Part # Description Qty Price
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010

3SFE,3SG#..ST18#

 1
23233 - HOSE, FUEL PUMP
23239-63010

3SFE,3SG#..ST18#

 1
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-74150

3SFE,3SG#..ST18#

 1
Common parts
90159-50219
90980-04047
90980-04061
94115-40400
94115-40500
94511-00400
94511-00500
