ST185-BLMVZ (1989)
Toyota Celica
Production
Oct 1989
-
Aug 1991
Engine
3SGTE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8910- )3SGTE

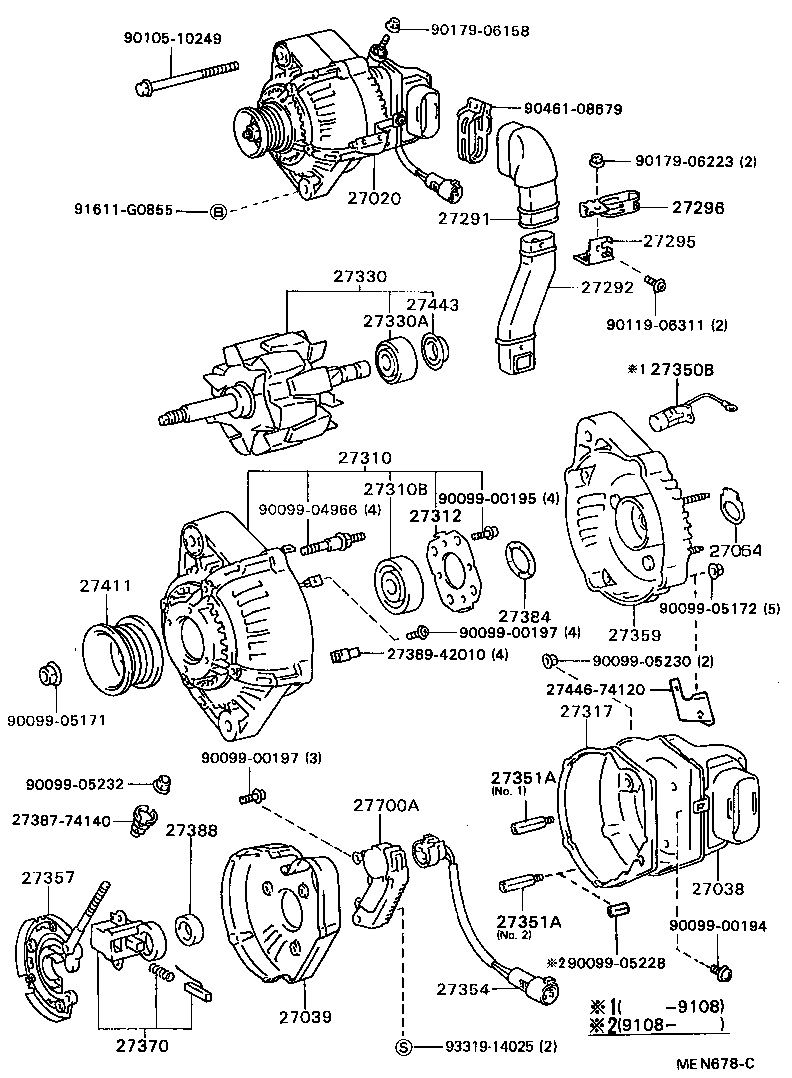

Click highlighted areas on diagram
12V 70A,80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-74130 |
3SGTE..ST185 12V 70A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-74140 |
3SFE,3SG#..ST18# |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
3SFE,3SG#..ST18# |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-74120 |
3SGTE..ST185 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10192 |
3SG#..ST18# |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
3SFE,3SG#..ST18# |
1 | ||
| 27317 - PACKING, COVER, REAR END | ||||
| 27317-74120 |
3SGTE..ST185 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-42010 |
3SFE,3SG#..ST18# |
1 | ||
| 27330-42010 |
3SG#..ST18# |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
3SFE,3SG#..ST18# |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52111 |
3SGTE..ST185 |
1 | ||
| 27351A - COLLAR, ADJUSTING ALTERNATOR | ||||
| 27351-74120 |
3SGTE..ST185 NO.1 |
2 | ||
| 27351-74130 |
3SGTE..ST185 NO.2 |
1 | ||
| 27351A - COLLAR, ADJUSTING ALTERNATOR | ||||
| 27351-74120 |
3SGTE..ST185 NO.1 |
2 | ||
| 27351-74130 |
3SGTE..ST185 NO.2 |
1 | ||
| 27354 - WIRE SUB-ASSY, ALTERNATOR LEAD | ||||
| 27037-74120 |
3SGTE..ST185 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-42010 |
3SFE,3SG#..ST18# |
1 | ||
| 27384 - WASHER | ||||
| 27384-42010 |
3SFE,3SG#..ST18# |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
3SFE,3SG#..ST18# |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-74050 |
3SFE,3SG#..ST18# |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
3SFE,3SG#..ST18# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-16010 |
3SG#..ST18# |
1 | ||
| 27700-16010 |
3SFE,3SG#..ST18# |
1 | ||
| Common parts | ||||
| 27387-74140 | ||||
| 27389-42010 | ||||
| 27446-74120 | ||||
| 90099-00194 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-04966 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05228 | ||||
| 90099-05230 | ||||
| 90099-05232 | ||||
| 90105-10249 | ||||
| 90119-06311 | ||||
| 90179-06158 | ||||
| 90179-06223 | ||||
| 90461-08679 | ||||
| 91611-G0855 | ||||
| 93319-14025 | ||||
