ST185-BLMVZ (1989)

Toyota Celica

Production Oct 1989 - Aug 1991
Engine 3SGTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8910-9108)3SGTE ; (9108-9309)3SGTE..GT4

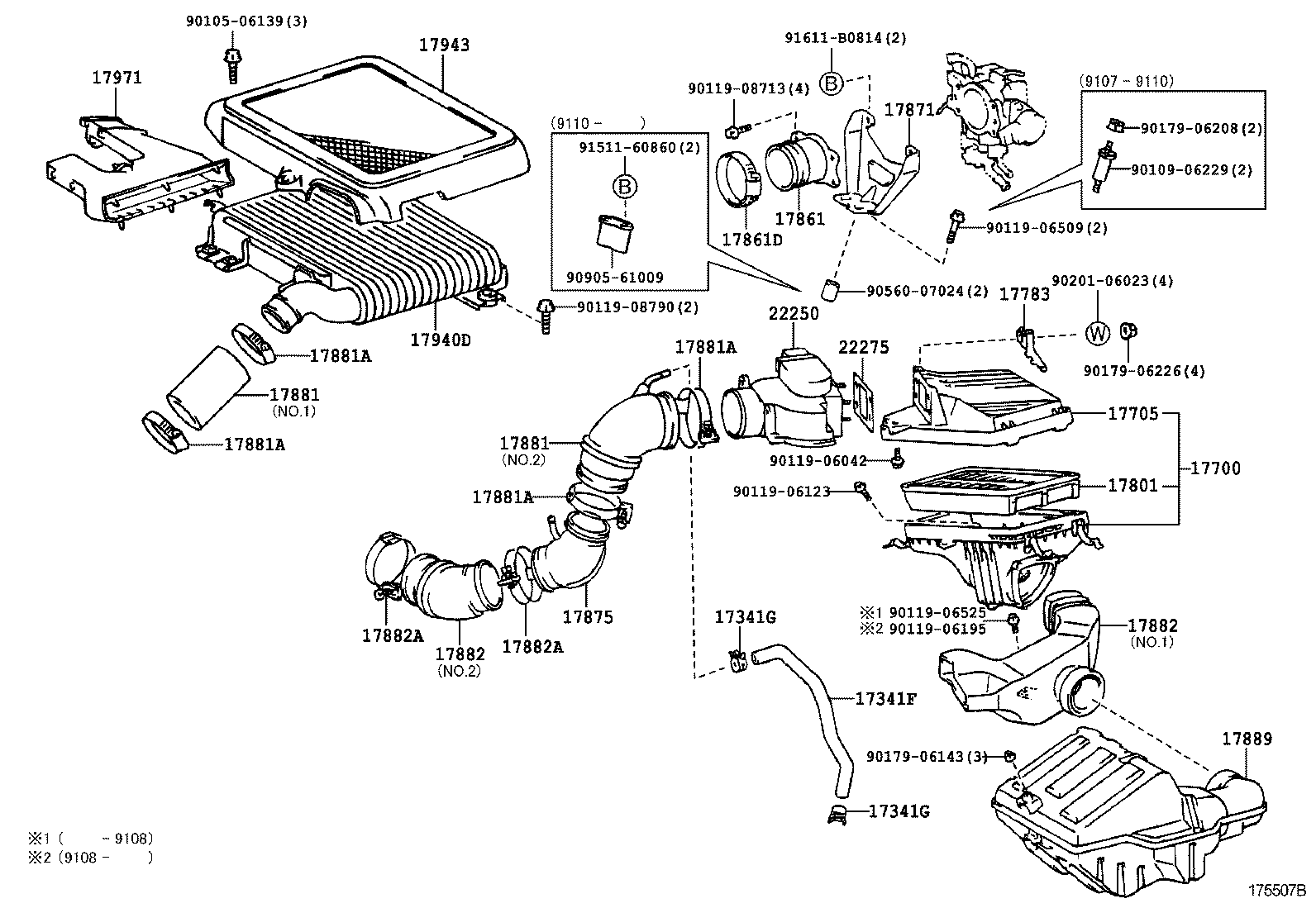

Click highlighted areas on diagram

diagram 17341F 17341G 17341G 17700 17705 17783 17801 17861 17861D 17871 17875 17881 17881 17881A 17881A 17881A 17881A 17882 17882 17882A 17882A 17889 17940D 17943 17971 22250 22275 9010506139 9010906229 9011906042 9011906123 9011906195 9011906509 9011906525 9011908713 9011908790 9017906143 9017906208 9017906226 9020106023 9056007024 9090561009 9151160860 91611B0814
Part # Description Qty Price
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-74020

3SG#..ST18#

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-74170

3SFE,3SG#..ST18#

NO.1

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-74170

3SFE,3SG#..ST18#

NO.1

 1
17889 - BOX, AIR CLEANER HOSE, NO.2
17889-74040

3SFE,3SG#..ST18#

 1
Common parts
90105-06139
90109-06229
90119-06042
90119-06123
90119-06195
90119-06509
90119-06525
90119-08713
90119-08790
90179-06143
90179-06208
90179-06226
90201-06023
90560-07024
90905-61009
91511-60860
91611-B0814
