ST185-BLMVZ (1989)
Toyota Celica
Production
Oct 1989
-
Aug 1991
Engine
3SGTE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

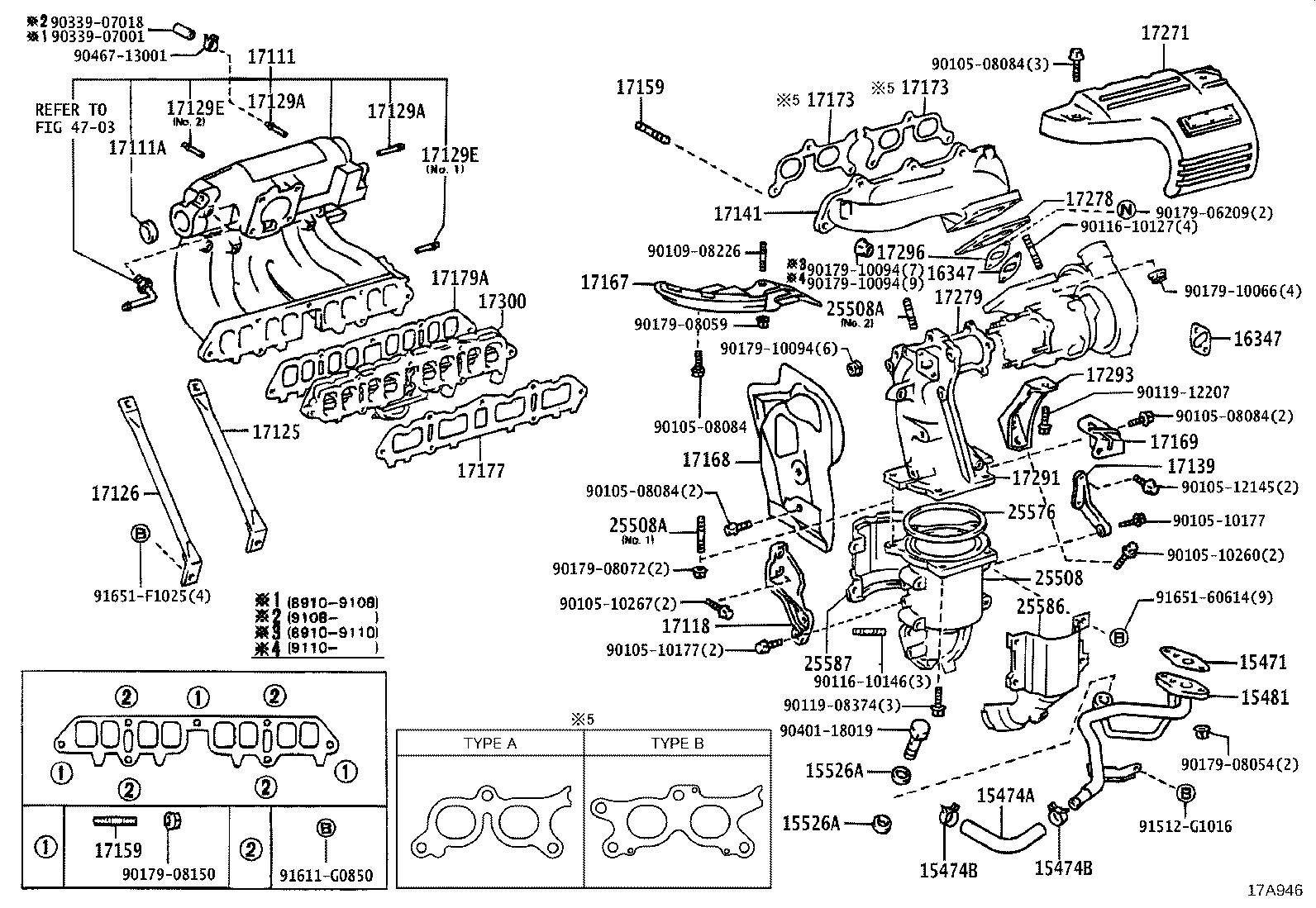

ILLUST NO. 1 OF 2(8910- )3SGTE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17129E - UNION, NO.3 | ||||
| 90405-06005 |
3SGTE..ST185 NO.2 |
1 | ||
| 17129E - UNION, NO.3 | ||||
| 90405-06005 |
3SGTE..ST185 NO.2 |
1 | ||
| 25508 - CONVERTER SUB-ASSY, MANIFOLD | ||||
| 25051-74010 |
3SGTE..ST185 |
1 | ||
| 25508A - BOLT, STUD(FOR MANIFOLD CONVERTER) | ||||
| 90116-08171 |
3SGTE..ST185 NO.1 |
2 | ||
| 25508A - BOLT, STUD(FOR MANIFOLD CONVERTER) | ||||
| 90116-08171 |
3SGTE..ST185 NO.1 |
2 | ||
| 25576 - GASKET, MANIFOLD CONVERTER | ||||
| 25576-74020 |
3SFE,3SGTE..ST18# |
1 | ||
| Common parts | ||||
| 90105-08084 | ||||
| 90105-10177 | ||||
| 90105-10260 | ||||
| 90105-10267 | ||||
| 90105-12145 | ||||
| 90109-08226 | ||||
| 90116-10127 | ||||
| 90116-10146 | ||||
| 90119-08374 | ||||
| 90119-12207 | ||||
| 90179-06209 | ||||
| 90179-08054 | ||||
| 90179-08059 | ||||
| 90179-08072 | ||||
| 90179-08150 | ||||
| 90179-10066 | ||||
| 90179-10094 | ||||
| 90339-07001 | ||||
| 90339-07018 | ||||
| 90401-18019 | ||||
| 90467-13001 | ||||
| 91512-G1016 | ||||
| 91611-G0850 | ||||
| 91651-60614 | ||||
| 91651-F1025 | ||||
| Linked diagrams | ||||
| 4703 | ||||

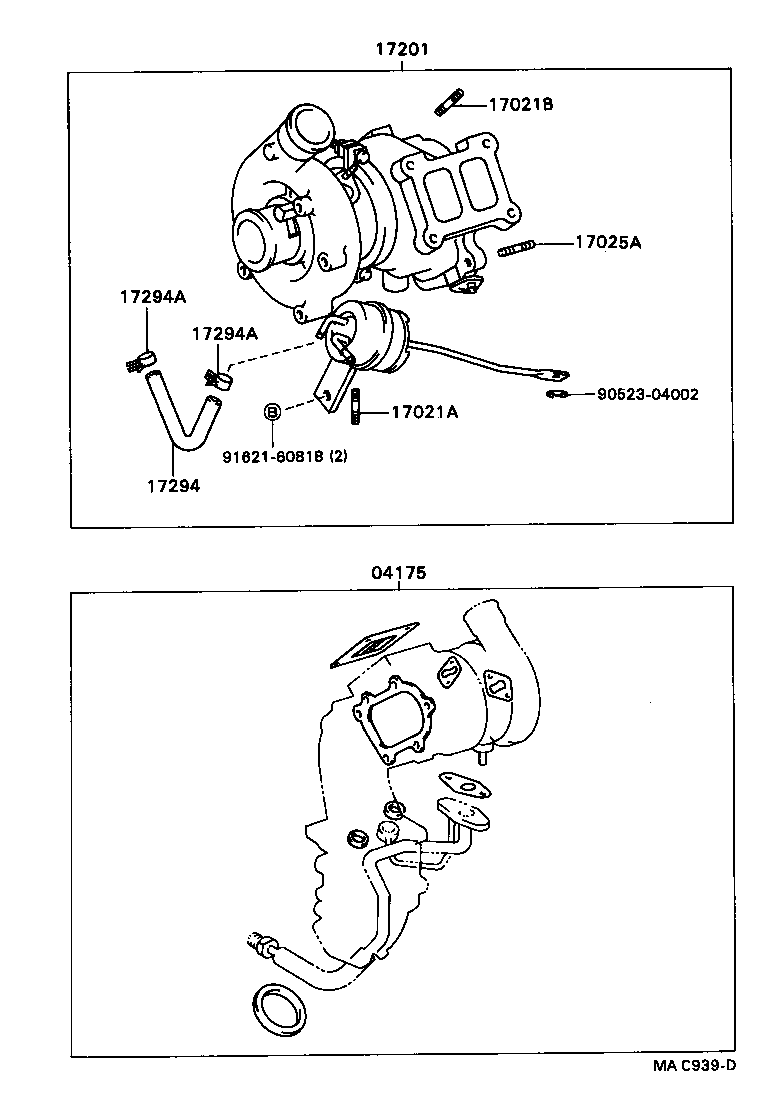

ILLUST NO. 2 OF 2(8910- )3SGTE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17025A - BOLT, STUD(FOR TURBINE HOUSING) | ||||
| 90116-10125 |
3SGTE..ST185 |
6 | ||
| 17294 - HOSE, ACTUATOR | ||||
| 17294-28010 |
3SGTE..ST185 |
1 | ||
| Common parts | ||||
| 90523-04002 | ||||
| 91621-60818 | ||||
