ST185-BLMVZ (1989)

Toyota Celica

Production Oct 1989 - Aug 1991
Engine 3SGTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

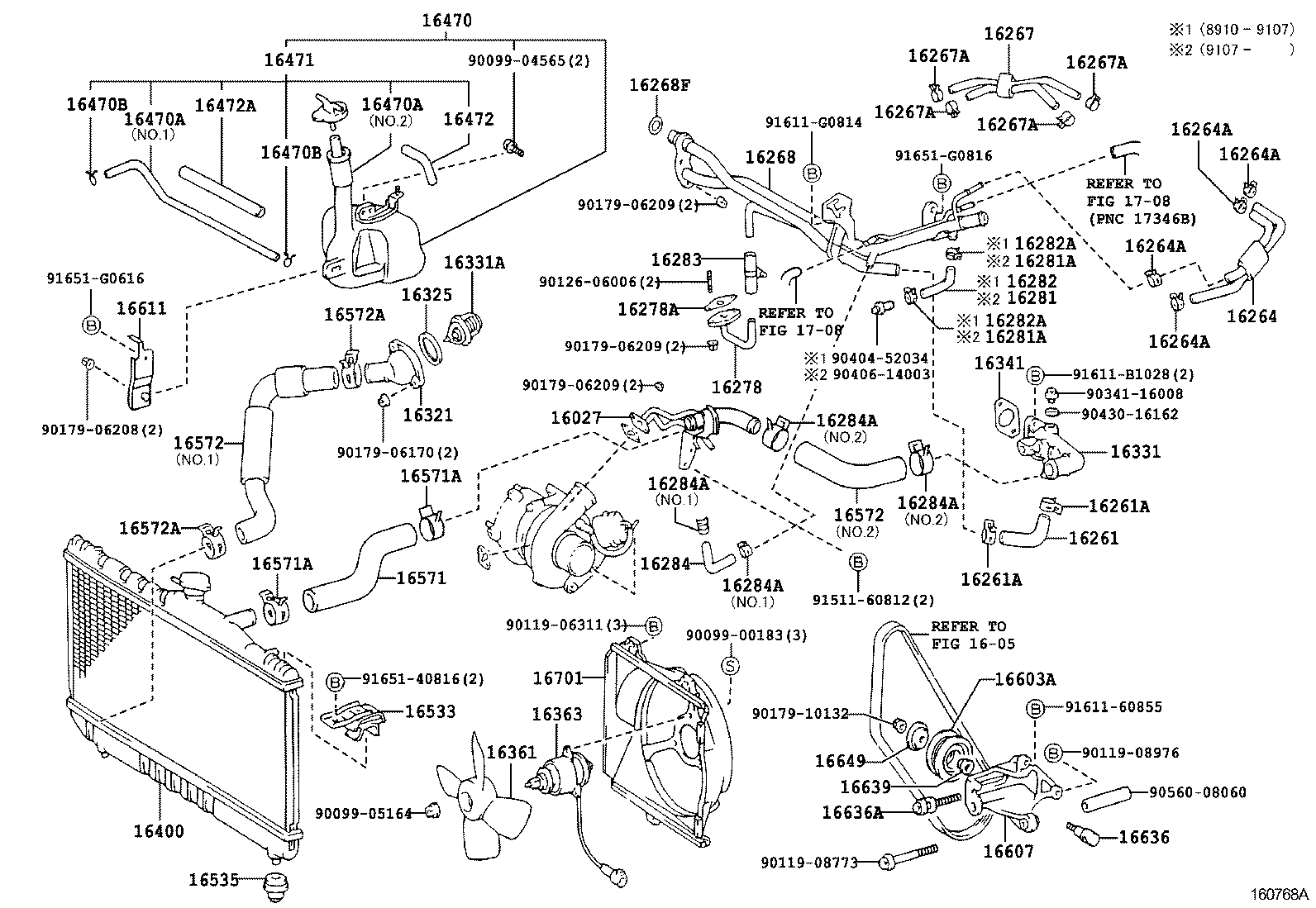

ILLUST NO. 1 OF 2(8910-9108)3SGTE

Click highlighted areas on diagram

diagram 16027 1605 16261 16261A 16261A 16264 16264A 16264A 16264A 16264A 16267 16267A 16267A 16267A 16267A 16268 16268F 16278 16278A 16281 16281A 16281A 16282 16282A 16282A 16283 16284 16284A 16284A 16284A 16284A 16321 16325 16331 16331A 16341 16361 16363 16400 16470 16470A 16470A 16470B 16470B 16471 16472 16472A 16533 16535 16571 16571A 16571A 16572 16572 16572A 16572A 16603A 16607 16611 16636 16636A 16639 16649 16701 1708 1708 9009900183 9009904565 9009905164 9011906311 9011908773 9011908976 9012606006 9017906170 9017906208 9017906209 9017906209 9017906209 9017910132 9034116008 9040452034 9040614003 9043016162 9056008060 9151160812 9161160855 91611B1028 91611G0814 9165140816 91651G0616 91651G0816
Part # Description Qty Price
16027 - PIPE SUB-ASSY, TURBO WATER, NO.1
16027-88381

3SGTE..ST185

 1
16261 - HOSE, WATER BY-PASS
16261-88380

3SGTE..ST185

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-22003

3SFE,3SG#..ST18#

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-22003

3SFE,3SG#..ST18#

 2
16268 - PIPE, WATER BY-PASS, NO.1
16268-88382

3SGTE..ST185

 1
16268F - RING, O(FOR WATER BY-PASS PIPE)
96761-24017

3SFE,3SG#..ST18#

 1
16278 - PIPE, WATER BY-PASS, NO.2
16278-88380

3SGTE..ST185

 1
16278A - GASKET, WATER BY-PASS
16258-88382

3SGTE..ST185

 1
16282 - HOSE, WATER BY-PASS, NO.5
16282-88380

3SGTE..ST185

 1
16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
90467-17005

3SGTE..ST185

 2
16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
90467-17005

3SGTE..ST185

 2
16284A - CLIP(FOR TURBO WATER HOSE NO.1)
90467-34003

3SGTE..ST185

NO.2

 2
16284A - CLIP(FOR TURBO WATER HOSE NO.1)
90467-34003

3SGTE..ST185

NO.2

 2
16284A - CLIP(FOR TURBO WATER HOSE NO.1)
90467-34003

3SGTE..ST185

NO.2

 2
16284A - CLIP(FOR TURBO WATER HOSE NO.1)
90467-34003

3SGTE..ST185

NO.2

 2
16321 - INLET, WATER
16321-88381

3SFE,3SG#..ST18#

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-62010

3SFE,3SG#..ST18#

 1
16331A - THERMOSTAT
90916-03075

3SFE,3SG#..ST18#

*WAX 82−95

 1
16341 - GASKET, WATER OUTLET
16341-88380

3SGTE..ST185

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12006

3SGTE..ST185

NO.2

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12006

3SGTE..ST185

NO.2

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

3SFE,3SG#..ST18#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

3SFE,3SG#..ST18#

 2
16472 - HOSE, BREATHER
85338-74040

3SFE,3SG#..ST18#

 1
16533 - SUPPORT, RADIATOR, UPPER
16533-74130

3SFE..ST182,183..ATM;3SG#..ST183,185..ACT,GT4

 2
16535 - SUPPORT, RADIATOR, LOWER
16535-74100

3SFE..ST182,183..ATM;3SG#..ST183,185..ACT,GT4

 2
16535-74100

3SGTE..ST185

 2
16535-74101

3SGTE..ST185

 2
16535-74101

3SFE..ST182,183..ATM;3SG#..ST183,185..ACT,GT4

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-33003

3SFE,3SG#..ST18#

 2
90467-33003

3SFE,3SG#..ST18#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-33003

3SFE,3SG#..ST18#

 2
90467-33003

3SFE,3SG#..ST18#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-88380

3SGTE..ST185

NO.2

 1
16572 - HOSE, RADIATOR, OUTLET
16572-88380

3SGTE..ST185

NO.2

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-33002

3SG#..ST18#

 2
90467-33002

3SFE,3SG#..ST18#

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-33002

3SG#..ST18#

 2
90467-33002

3SFE,3SG#..ST18#

 2
16603A - PULLEY SUB-ASSY, IDLER, NO.1
16603-88360

3SG#..ST18#..CV,GT4,GT4A,GTR

 1
16607 - BRACKET SUB-ASSY, IDLER PULLEY, NO.1
16631-74030

3SG#..ST18#

 1
16611 - BRACKET, RADIATOR RESERVE TANK
16611-74070

3SFE,3SG#..ST18#..CV,GT4,GT4A,GTR,SR,ZR

 1
16636 - SHAFT, IDLER PULLY, NO.1
16636-74020

3SG#..ST18#

 1
16636A - BOLT(FOR IDLER PULLY TENSION)
90109-08182

3SGTE..ST185

 1
90109-08191

3SG#..ST18#

 1
16639 - SPACER, IDLER PULLEY
16639-88361

3SG#..ST18#..CV,GT4,GT4A,GTR

 1
16649 - PLATE, IDLER PULLEY COVER
16649-88380

3SGTE..ST185

 1
Common parts
90099-00183
90099-04565
90099-05164
90119-06311
90119-08773
90119-08976
90126-06006
90179-06170
90179-06208
90179-06209
90179-10132
90341-16008
90404-52034
90406-14003
90430-16162
90560-08060
91511-60812
91611-60855
91611-B1028
91611-G0814
91651-40816
91651-G0616
91651-G0816
Linked diagrams
1605
1708
