ST185-BLMVZ (1989)
Toyota Celica
(8910- )3SGTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13502 - IDLER SUB-ASSY, TIMING BELT, NO.2 | ||||
| 13503-63011 |
3SFE,3SG#..ST18# |
1 | ||
| 13505 - IDLER SUB-ASSY, TIMING BELT, NO.1 | ||||
| 13505-88382 |
3SGTE..ST185 |
1 | ||
| 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) | ||||
| 90250-05021 |
3SG#..ST18# 長さ=13.8,外径=5.0 |
2 | ||
| 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) | ||||
| 90250-05021 |
3SG#..ST18# 長さ=13.8,外径=5.0 |
2 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-88381 |
3SGTE..ST185 |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-88360 |
3SG#..ST18# |
2 | ||
| 13523-88301 |
3SGTE..ST185 |
2 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-88360 |
3SG#..ST18# |
2 | ||
| 13523-88301 |
3SGTE..ST185 |
2 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-88381 |
3SGTE..ST185 |
1 | ||
| 13568 - BELT, TIMING | ||||
| 13568-88382 |
3SG#..ST18# |
1 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02066 |
3SFE,3SG#..ST18# EXHAUST SIDE |
8 | ||
| 90913-02062 |
3SG#..ST18# INTAKE SIDE |
8 | ||
| 90913-02062 |
3SFE,3SG#..ST18# INTAKE SIDE |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02066 |
3SFE,3SG#..ST18# EXHAUST SIDE |
8 | ||
| 90913-02062 |
3SG#..ST18# INTAKE SIDE |
8 | ||
| 90913-02062 |
3SFE,3SG#..ST18# INTAKE SIDE |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-35006 |
3SG#..ST18# |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-35006 |
3SG#..ST18# |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-88361 |
3SG#..ST18# |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-88361 |
3SG#..ST18# |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-88361 |
3SG#..ST18# |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-88361 |
3SG#..ST18# |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03021 |
3SFE,3SG#..ST18# |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03021 |
3SFE,3SG#..ST18# |
32 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-74010 |
3SG#..ST18# 厚さ=2.50 |
1 | ||
| 13753-74050 |
3SG#..ST18# 厚さ=2.60 |
1 | ||
| 13753-74030 |
3SG#..ST18# 厚さ=2.55 |
1 | ||
| 13753-74110 |
3SG#..ST18# 厚さ=2.75 |
1 | ||
| 13753-74130 |
3SG#..ST18# 厚さ=2.80 |
1 | ||
| 13753-74210 |
3SG#..ST18# 厚さ=3.00 |
1 | ||
| 13753-74250 |
3SG#..ST18# 厚さ=3.10 |
1 | ||
| 13753-74270 |
3SG#..ST18# 厚さ=3.15 |
1 | ||
| 13753-74090 |
3SG#..ST18# 厚さ=2.70 |
1 | ||
| 13753-74330 |
3SG#..ST18# 厚さ=3.30 |
1 | ||
| 13753-74310 |
3SG#..ST18# 厚さ=3.25 |
1 | ||
| 13753-74070 |
3SG#..ST18# 厚さ=2.65 |
1 | ||
| 13753-74230 |
3SG#..ST18# 厚さ=3.05 |
1 | ||
| 13753-74190 |
3SG#..ST18# 厚さ=2.95 |
1 | ||
| 13753-74150 |
3SG#..ST18# 厚さ=2.85 |
1 | ||
| 13753-74170 |
3SG#..ST18# 厚さ=2.90 |
1 | ||
| 13753-74290 |
3SG#..ST18# 厚さ=3.20 |
1 | ||
| 13753-74030 |
3SGTE..ST185 厚さ=2.55 |
1 | ||
| 13753-74070 |
3SGTE..ST185 厚さ=2.65 |
1 | ||
| 13753-74230 |
3SGTE..ST185 厚さ=3.05 |
1 | ||
| 13753-74110 |
3SGTE..ST185 厚さ=2.75 |
1 | ||
| 13753-74190 |
3SGTE..ST185 厚さ=2.95 |
1 | ||
| 13753-74290 |
3SGTE..ST185 厚さ=3.20 |
1 | ||
| 13753-74210 |
3SGTE..ST185 厚さ=3.00 |
1 | ||
| 13753-74310 |
3SGTE..ST185 厚さ=3.25 |
1 | ||
| 13753-74010 |
3SGTE..ST185 厚さ=2.50 |
1 | ||
| 13753-74150 |
3SGTE..ST185 厚さ=2.85 |
1 | ||
| 13753-74090 |
3SGTE..ST185 厚さ=2.70 |
1 | ||
| 13753-74130 |
3SGTE..ST185 厚さ=2.80 |
1 | ||
| 13753-74270 |
3SGTE..ST185 厚さ=3.15 |
1 | ||
| 13753-74050 |
3SGTE..ST185 厚さ=2.60 |
1 | ||
| 13753-74170 |
3SGTE..ST185 厚さ=2.90 |
1 | ||
| 13753-74250 |
3SGTE..ST185 厚さ=3.10 |
1 | ||
| 13753-74330 |
3SGTE..ST185 厚さ=3.30 |
1 | ||
| 13753-74190 |
3SFE,3SGTE..ST18# 厚さ=2.95 |
1 | ||
| 13753-74110 |
3SFE,3SGTE..ST18# 厚さ=2.75 |
1 | ||
| 13753-74070 |
3SFE,3SGTE..ST18# 厚さ=2.65 |
1 | ||
| 13753-74050 |
3SFE,3SGTE..ST18# 厚さ=2.60 |
1 | ||
| 13753-74170 |
3SFE,3SGTE..ST18# 厚さ=2.90 |
1 | ||
| 13753-74090 |
3SFE,3SGTE..ST18# 厚さ=2.70 |
1 | ||
| 13753-74030 |
3SFE,3SGTE..ST18# 厚さ=2.55 |
1 | ||
| 13753-74130 |
3SFE,3SGTE..ST18# 厚さ=2.80 |
1 | ||
| 13753-74250 |
3SFE,3SGTE..ST18# 厚さ=3.10 |
1 | ||
| 13753-74270 |
3SFE,3SGTE..ST18# 厚さ=3.15 |
1 | ||
| 13753-74290 |
3SFE,3SGTE..ST18# 厚さ=3.20 |
1 | ||
| 13753-74210 |
3SFE,3SGTE..ST18# 厚さ=3.00 |
1 | ||
| 13753-74230 |
3SFE,3SGTE..ST18# 厚さ=3.05 |
1 | ||
| 13753-74010 |
3SFE,3SGTE..ST18# 厚さ=2.50 |
1 | ||
| 13753-74150 |
3SFE,3SGTE..ST18# 厚さ=2.85 |
1 | ||
| 13753-74310 |
3SFE,3SGTE..ST18# 厚さ=3.25 |
1 | ||
| 13753-74330 |
3SFE,3SGTE..ST18# 厚さ=3.30 |
1 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-74010 |
3SG#..ST18# 厚さ=2.50 |
1 | ||
| 13753-74050 |
3SG#..ST18# 厚さ=2.60 |
1 | ||
| 13753-74030 |
3SG#..ST18# 厚さ=2.55 |
1 | ||
| 13753-74110 |
3SG#..ST18# 厚さ=2.75 |
1 | ||
| 13753-74130 |
3SG#..ST18# 厚さ=2.80 |
1 | ||
| 13753-74210 |
3SG#..ST18# 厚さ=3.00 |
1 | ||
| 13753-74250 |
3SG#..ST18# 厚さ=3.10 |
1 | ||
| 13753-74270 |
3SG#..ST18# 厚さ=3.15 |
1 | ||
| 13753-74090 |
3SG#..ST18# 厚さ=2.70 |
1 | ||
| 13753-74330 |
3SG#..ST18# 厚さ=3.30 |
1 | ||
| 13753-74310 |
3SG#..ST18# 厚さ=3.25 |
1 | ||
| 13753-74070 |
3SG#..ST18# 厚さ=2.65 |
1 | ||
| 13753-74230 |
3SG#..ST18# 厚さ=3.05 |
1 | ||
| 13753-74190 |
3SG#..ST18# 厚さ=2.95 |
1 | ||
| 13753-74150 |
3SG#..ST18# 厚さ=2.85 |
1 | ||
| 13753-74170 |
3SG#..ST18# 厚さ=2.90 |
1 | ||
| 13753-74290 |
3SG#..ST18# 厚さ=3.20 |
1 | ||
| 13753-74030 |
3SGTE..ST185 厚さ=2.55 |
1 | ||
| 13753-74070 |
3SGTE..ST185 厚さ=2.65 |
1 | ||
| 13753-74230 |
3SGTE..ST185 厚さ=3.05 |
1 | ||
| 13753-74110 |
3SGTE..ST185 厚さ=2.75 |
1 | ||
| 13753-74190 |
3SGTE..ST185 厚さ=2.95 |
1 | ||
| 13753-74290 |
3SGTE..ST185 厚さ=3.20 |
1 | ||
| 13753-74210 |
3SGTE..ST185 厚さ=3.00 |
1 | ||
| 13753-74310 |
3SGTE..ST185 厚さ=3.25 |
1 | ||
| 13753-74010 |
3SGTE..ST185 厚さ=2.50 |
1 | ||
| 13753-74150 |
3SGTE..ST185 厚さ=2.85 |
1 | ||
| 13753-74090 |
3SGTE..ST185 厚さ=2.70 |
1 | ||
| 13753-74130 |
3SGTE..ST185 厚さ=2.80 |
1 | ||
| 13753-74270 |
3SGTE..ST185 厚さ=3.15 |
1 | ||
| 13753-74050 |
3SGTE..ST185 厚さ=2.60 |
1 | ||
| 13753-74170 |
3SGTE..ST185 厚さ=2.90 |
1 | ||
| 13753-74250 |
3SGTE..ST185 厚さ=3.10 |
1 | ||
| 13753-74330 |
3SGTE..ST185 厚さ=3.30 |
1 | ||
| 13753-74190 |
3SFE,3SGTE..ST18# 厚さ=2.95 |
1 | ||
| 13753-74110 |
3SFE,3SGTE..ST18# 厚さ=2.75 |
1 | ||
| 13753-74070 |
3SFE,3SGTE..ST18# 厚さ=2.65 |
1 | ||
| 13753-74050 |
3SFE,3SGTE..ST18# 厚さ=2.60 |
1 | ||
| 13753-74170 |
3SFE,3SGTE..ST18# 厚さ=2.90 |
1 | ||
| 13753-74090 |
3SFE,3SGTE..ST18# 厚さ=2.70 |
1 | ||
| 13753-74030 |
3SFE,3SGTE..ST18# 厚さ=2.55 |
1 | ||
| 13753-74130 |
3SFE,3SGTE..ST18# 厚さ=2.80 |
1 | ||
| 13753-74250 |
3SFE,3SGTE..ST18# 厚さ=3.10 |
1 | ||
| 13753-74270 |
3SFE,3SGTE..ST18# 厚さ=3.15 |
1 | ||
| 13753-74290 |
3SFE,3SGTE..ST18# 厚さ=3.20 |
1 | ||
| 13753-74210 |
3SFE,3SGTE..ST18# 厚さ=3.00 |
1 | ||
| 13753-74230 |
3SFE,3SGTE..ST18# 厚さ=3.05 |
1 | ||
| 13753-74010 |
3SFE,3SGTE..ST18# 厚さ=2.50 |
1 | ||
| 13753-74150 |
3SFE,3SGTE..ST18# 厚さ=2.85 |
1 | ||
| 13753-74310 |
3SFE,3SGTE..ST18# 厚さ=3.25 |
1 | ||
| 13753-74330 |
3SFE,3SGTE..ST18# 厚さ=3.30 |
1 | ||
| Common parts | ||||
| 90105-10032 | ||||
| 90119-10430 | ||||
| 91513-80835 | ||||
| Linked diagrams | ||||

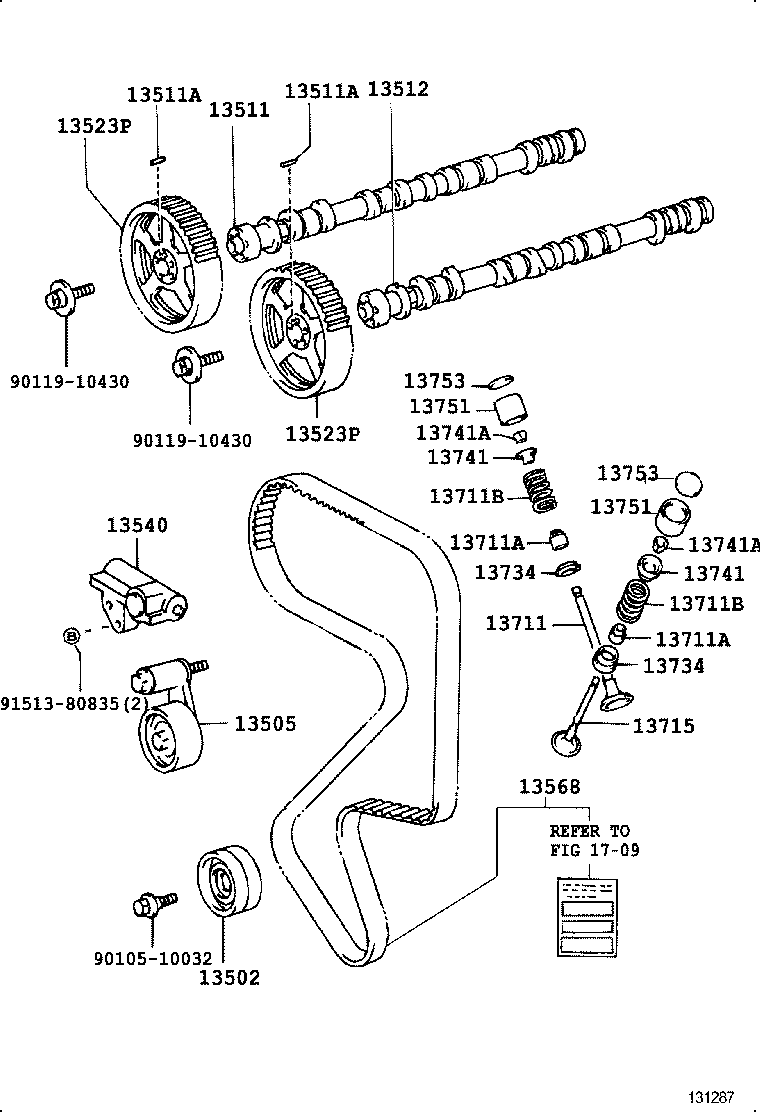

| 1709 | ||||
