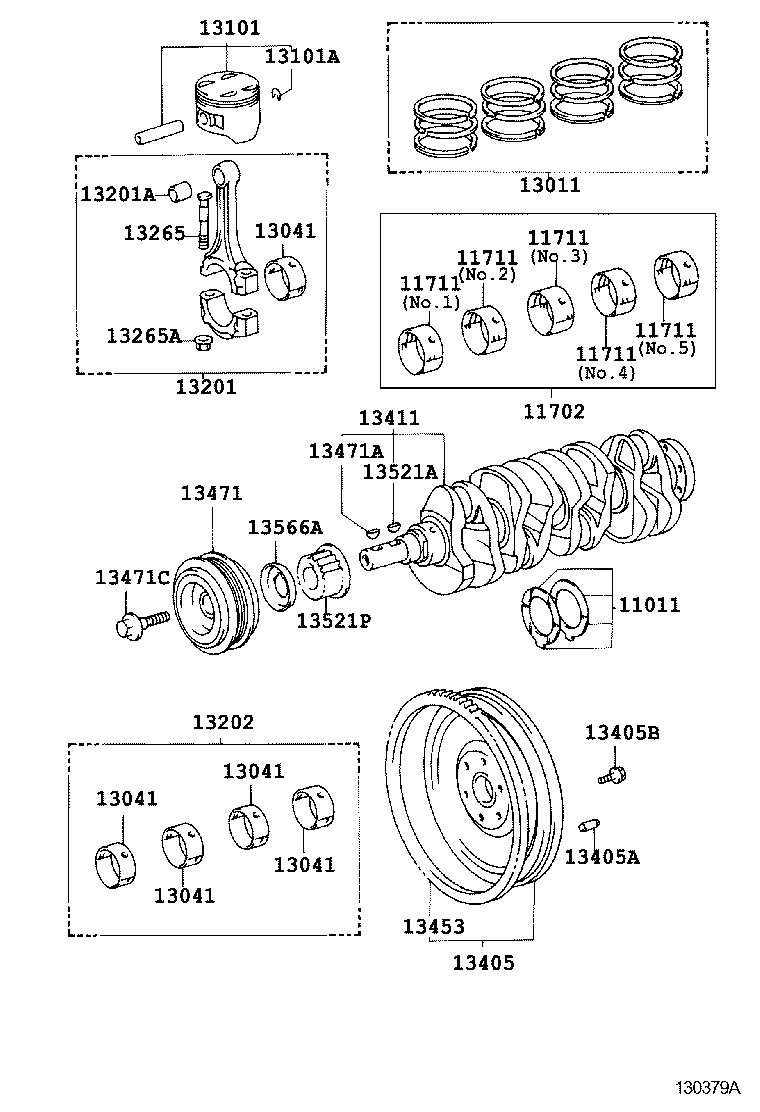

Toyota Celica ST185 CRANKSHAFT & PISTON

Part #	Description	Period	Qty
11011 - WASHER SET, CRANKSHAFT THRUST
11011-25010	3SFE,3SG#..ST18# STD	09/1989 - 06/1991	1
11702 - BEARING SET, CRANKSHAFT
11704-88360	3SG#..ST18# U/S 0.25	09/1989 - 12/1989	1
11711 - BEARING, CRANKSHAFT
11071-8836004	3SGTE..ST185 MARK 4,NO.3	09/1989 - 09/1993	1
11071-8836002	3SGTE..ST185 MARK 2,NO.3	09/1989 - 09/1993	1
11071-8836005	3SGTE..ST185 MARK 5,NO.3	09/1989 - 09/1993	1
11071-8836003	3SGTE..ST185 MARK 3,NO.3	09/1989 - 09/1993	1
11071-8836001	3SGTE..ST185 MARK 1,NO.3	09/1989 - 09/1993	1
11711 - BEARING, CRANKSHAFT
11071-8836004	3SGTE..ST185 MARK 4,NO.3	09/1989 - 09/1993	1
11071-8836002	3SGTE..ST185 MARK 2,NO.3	09/1989 - 09/1993	1
11071-8836005	3SGTE..ST185 MARK 5,NO.3	09/1989 - 09/1993	1
11071-8836003	3SGTE..ST185 MARK 3,NO.3	09/1989 - 09/1993	1
11071-8836001	3SGTE..ST185 MARK 1,NO.3	09/1989 - 09/1993	1
11711 - BEARING, CRANKSHAFT
11071-8836004	3SGTE..ST185 MARK 4,NO.3	09/1989 - 09/1993	1
11071-8836002	3SGTE..ST185 MARK 2,NO.3	09/1989 - 09/1993	1
11071-8836005	3SGTE..ST185 MARK 5,NO.3	09/1989 - 09/1993	1
11071-8836003	3SGTE..ST185 MARK 3,NO.3	09/1989 - 09/1993	1
11071-8836001	3SGTE..ST185 MARK 1,NO.3	09/1989 - 09/1993	1
11711 - BEARING, CRANKSHAFT
11071-8836004	3SGTE..ST185 MARK 4,NO.3	09/1989 - 09/1993	1
11071-8836002	3SGTE..ST185 MARK 2,NO.3	09/1989 - 09/1993	1
11071-8836005	3SGTE..ST185 MARK 5,NO.3	09/1989 - 09/1993	1
11071-8836003	3SGTE..ST185 MARK 3,NO.3	09/1989 - 09/1993	1
11071-8836001	3SGTE..ST185 MARK 1,NO.3	09/1989 - 09/1993	1
11711 - BEARING, CRANKSHAFT
11071-8836004	3SGTE..ST185 MARK 4,NO.3	09/1989 - 09/1993	1
11071-8836002	3SGTE..ST185 MARK 2,NO.3	09/1989 - 09/1993	1
11071-8836005	3SGTE..ST185 MARK 5,NO.3	09/1989 - 09/1993	1
11071-8836003	3SGTE..ST185 MARK 3,NO.3	09/1989 - 09/1993	1
11071-8836001	3SGTE..ST185 MARK 1,NO.3	09/1989 - 09/1993	1
13041 - BEARING, CONNECTING ROD
13041-8836002	3SG#..ST18# MARK 2	09/1989 - 09/1993	4
13041-8836003	3SG#..ST18# MARK 3	09/1989 - 09/1993	4
13041-8836001	3SG#..ST18# MARK 1	09/1989 - 09/1993	4
13041 - BEARING, CONNECTING ROD
13041-8836002	3SG#..ST18# MARK 2	09/1989 - 09/1993	4
13041-8836003	3SG#..ST18# MARK 3	09/1989 - 09/1993	4
13041-8836001	3SG#..ST18# MARK 1	09/1989 - 09/1993	4
13041 - BEARING, CONNECTING ROD
13041-8836002	3SG#..ST18# MARK 2	09/1989 - 09/1993	4
13041-8836003	3SG#..ST18# MARK 3	09/1989 - 09/1993	4
13041-8836001	3SG#..ST18# MARK 1	09/1989 - 09/1993	4
13041 - BEARING, CONNECTING ROD
13041-8836002	3SG#..ST18# MARK 2	09/1989 - 09/1993	4
13041-8836003	3SG#..ST18# MARK 3	09/1989 - 09/1993	4
13041-8836001	3SG#..ST18# MARK 1	09/1989 - 09/1993	4
13041 - BEARING, CONNECTING ROD
13041-8836002	3SG#..ST18# MARK 2	09/1989 - 09/1993	4
13041-8836003	3SG#..ST18# MARK 3	09/1989 - 09/1993	4
13041-8836001	3SG#..ST18# MARK 1	09/1989 - 09/1993	4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90521-25004	3SG#..ST18#	09/1989 - 08/1991	8
13201 - ROD SUB-ASSY, CONNECTING
13201-79096	3SG#..ST18#	09/1989 - 08/1991	4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73112	3SG#..ST18#	09/1989 - 08/1990	4
13202 - BEARING SET, CONNECTING ROD
13204-88360	3SG#..ST18# U/S 0.25	09/1989 - 08/1991	1
13265 - BOLT, CONNECTING ROD
13265-74010	3SG#..ST18#	09/1989 - 09/1993	8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90179-10107	3SG#..ST18#	09/1989 - 09/1993	8
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-08054	3SFE,3SG#..ST18#..MTM 長さ=23,外径=8	09/1989 - 09/1993	3
13405B - BOLT, FLYWHEEL SETTING
90105-12187	3SG#..ST18#..MTM	09/1989 - 09/1993	8
13411 - CRANKSHAFT
13411-74903	3SG#..ST18#	09/1989 - 09/1993	1
13453 - GEAR, FLYWHEEL RING
13453-74011	3SFE,3SG#..ST18#..MTM	09/1989 - 09/1993	1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
95161-20519	3SFE,3SG#..ST18#	09/1989 - 10/1991	1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90105-14011	3SG#..ST18#	09/1989 - 08/1993	1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
95161-20519	3SFE,3SG#..ST18#	09/1989 - 10/1991	1
13521P - PULLEY, CRANKSHAFT TIMING
13521-88360	3SG#..ST18#	09/1989 - 09/1993	1
13566A - GUIDE, TIMING BELT
13566-88360	3SG#..ST18#	09/1989 - 09/1993	1

ST185-BLMVZ (1989)

(8909-9309)3SG#
