ST185-BLMVZ (1989)

Toyota Celica

Production Oct 1989 - Aug 1991
Engine 3SGTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8910- )3SGTE

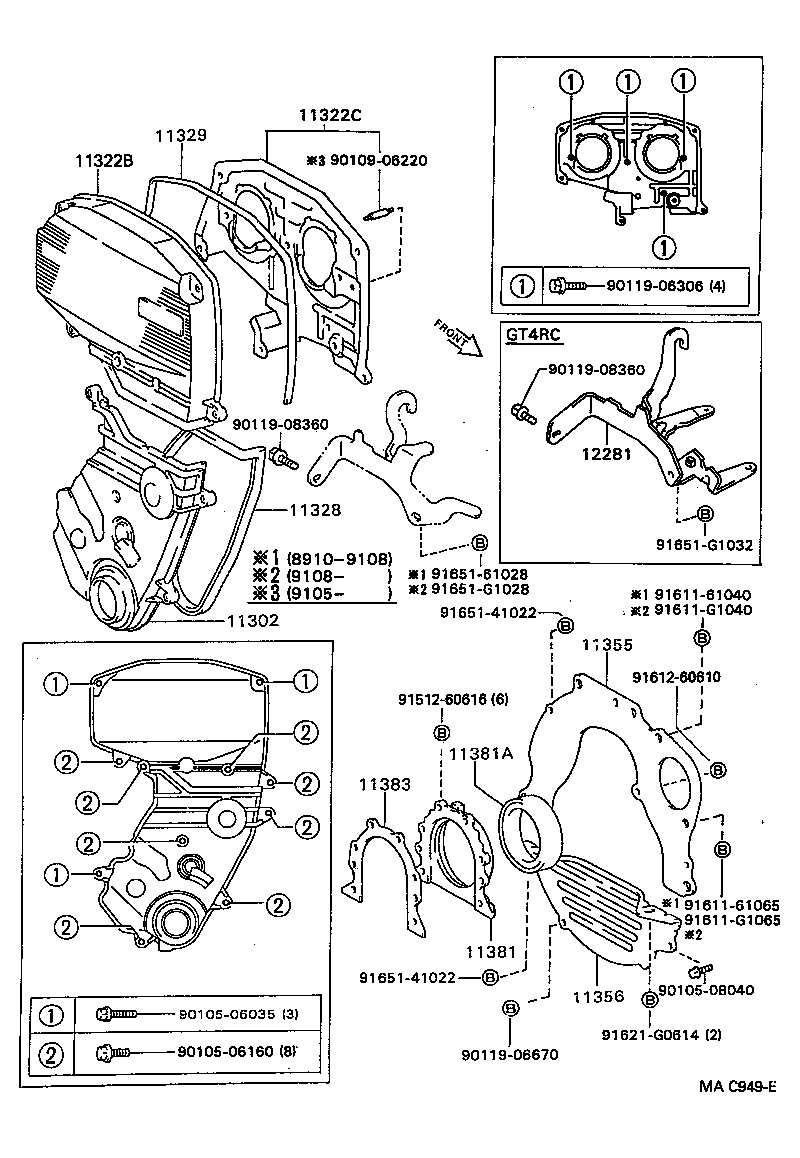

Click highlighted areas on diagram

diagram 11302 11322B 11322C 11328 11329 11355 11356 11381 11381A 11383 12281 9010506035 9010506160 9010508040 9010906220 9011906306 9011906670 9011908360 9011908360 9151260616 9161161040 9161161065 91611G1040 91611G1065 9161260610 91621G0614 9165141022 9165141022 9165161028 91651G1028 91651G1032
Part # Description Qty Price
11322C - COVER, TIMING BELT, NO.3
11323-88381

3SGTE..ST185

 1
11356 - PLATE, REAR END, NO.2
11356-63031

3SFE,3SG#..ST18#

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-63012

3SFE,3SG#..ST18#

 1
11381A - SEAL, ENGINE REAR OIL
90311-89001

3SG#..ST18#

 1
Common parts
90105-06035
90105-06160
90105-08040
90109-06220
90119-06306
90119-06670
90119-08360
91512-60616
91611-61040
91611-61065
91611-G1040
91611-G1065
91612-60610
91621-G0614
91651-41022
91651-61028
91651-G1028
91651-G1032
