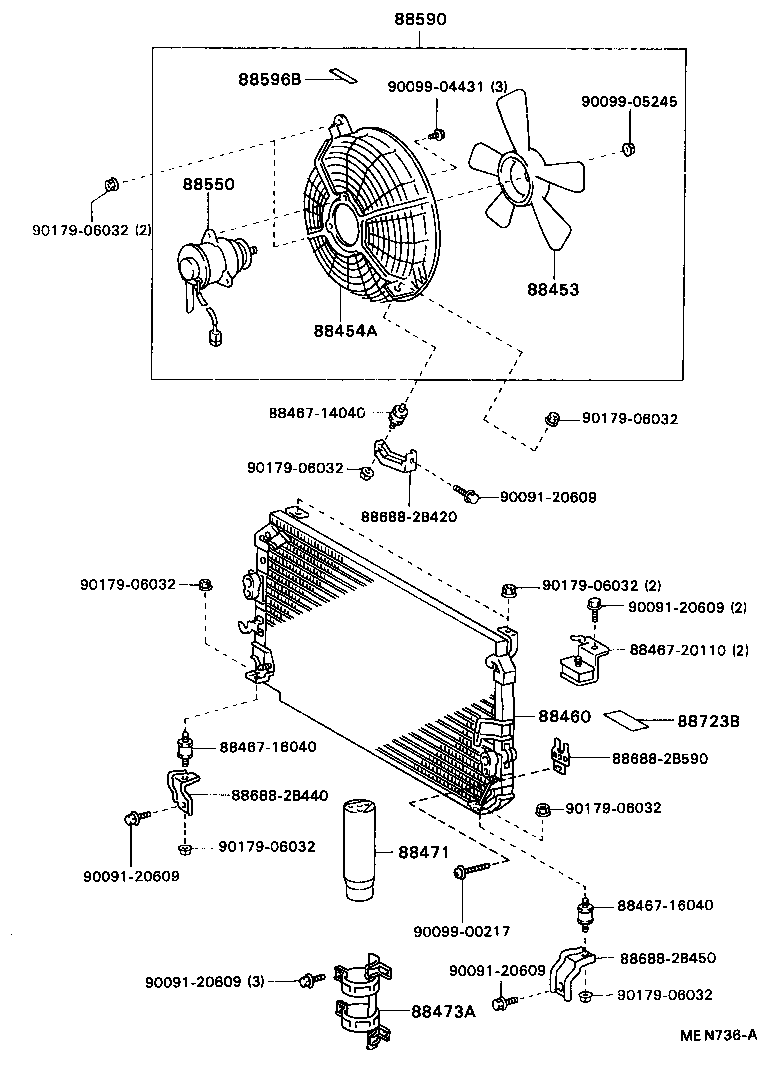

ST183C-BKMVF (1990)
Toyota Celica
(8909-9108)CV,GT4,GT4A,GTR,SR,ZR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-20060 |
ST183,185..ACT,CV,GT4A |
1 | ||
| 88453-20060 |
ST18# |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-20100 |
ST18#..CV,GT4,GTR,SR,ZR |
1 | ||
| 88454-20100 |
ST183,185..ACT,CV,GT4A |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-20330 |
ST183,185..CV,GT4A |
1 | ||
| 88460-20301 |
ST18#..CV,GT4,GTR,SR,ZR |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-16040 |
ST18#..CV,GT4,GTR,SR,ZR |
1 | ||
| 88471-16040 |
ST183,185..ACT,CV,GT4A |
1 | ||
| 88473A - HOLDER, RECEIVER | ||||
| 88473-20080 |
ST183..CV |
1 | ||
| 88473-20080 |
ST18#..CV,GT4,GTR,SR,ZR |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-20070 |
ST183,185..ACT,CV,GT4A |
1 | ||
| 88550-20070 |
ST18#..CV,GT4,GTR,SR,ZR |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-20240 |
ST183,185..CV,GT4A |
1 | ||
| 88590-20230 |
ST18#..CV,GT4,GTR,SR,ZR |
1 | ||
| 88596B - PLATE, CAUTION, NO.1 | ||||
| 88596-24010 |
ST18#..CV,GT4,GTR,SR,ZR |
1 | ||
| 88596-24010 |
ST183,185..ACT,CV,GT4A |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20010 |
ST183..CV |
1 | ||
| 88723-20010 |
ST18# |
1 | ||
| Common parts | ||||
| 88467-14040 | ||||
| 88467-16040 | ||||
| 88467-20110 | ||||
| 88688-2B420 | ||||
| 88688-2B440 | ||||
| 88688-2B450 | ||||
| 88688-2B590 | ||||
| 90091-20609 | ||||
| 90099-00217 | ||||
| 90099-04431 | ||||
| 90099-05245 | ||||
| 90179-06032 | ||||

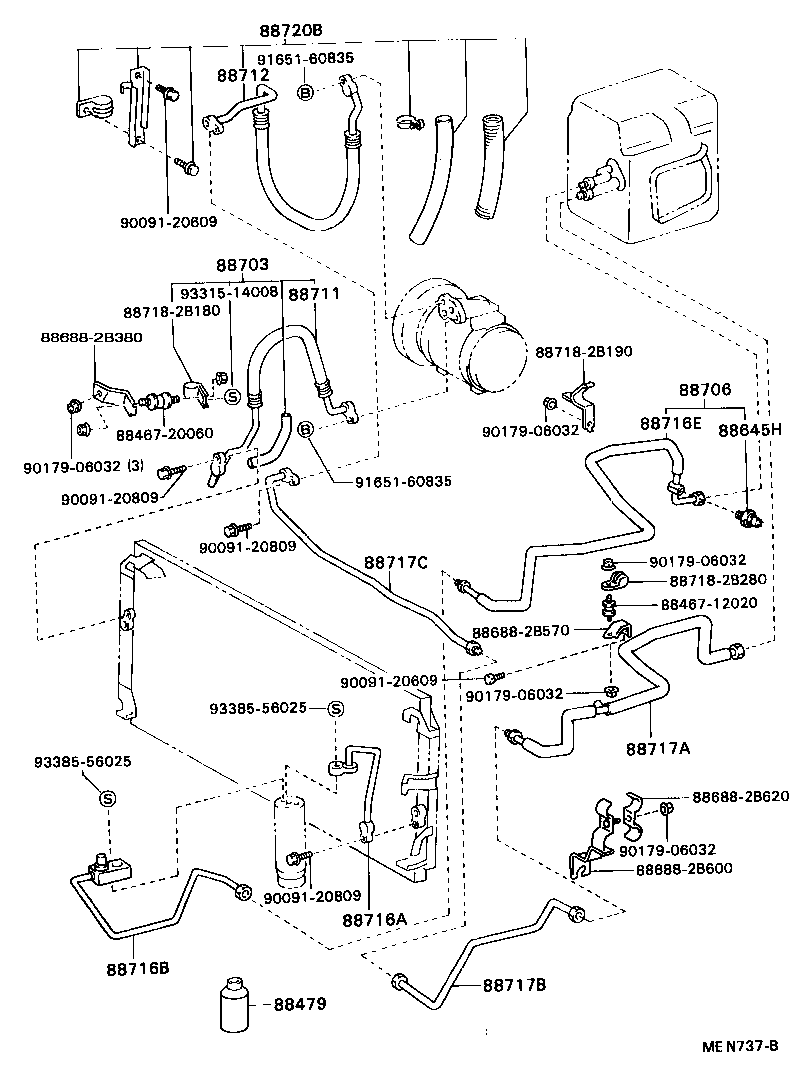

(8909-9108)CV,GT4,GT4A,GTR,SR,ZR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02004 |
ST183,185..CV,GT4A 250G |
3 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-20040 |
ST183,185..CV,GT4A |
1 | ||
| 88645-20040 |
ST183,185..ACT,CV,GT4A |
1 | ||
| 88645-20040 |
ST18# |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-20061 |
ST182,183 |
1 | ||
| 88703-20060 |
ST183..ACT,CV |
1 | ||
| 88703-20060 |
ST182,183 |
1 | ||
| 88706 - PIPE SUB-ASSY, LIQUID | ||||
| 88706-20091 |
ST18#..CV,GT4,GTR,SR,ZR |
1 | ||
| 88706-20070 |
ST183,185..ACT,CV,GT4A |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-20710 |
ST183..ACT,CV |
1 | ||
| 88711-20710 |
ST182,183 |
1 | ||
| 88711-20790 |
ST182,183 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-2B121 |
ST183,185..CV,GT4A |
1 | ||
| 88712-2B180 |
ST18# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-2B760 |
ST183,185..CV,GT4A |
1 | ||
| 88716-2B760 |
ST18#..CV,GT4,GTR,SR,ZR |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2B850 |
ST183,185..CV,GT4A |
1 | ||
| 88716-2B870 |
ST18#..CV,GT4,GTR,SR,ZR |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-2D021 |
ST18#..CV,GT4,GTR,SR,ZR |
1 | ||
| 88716-2B860 |
ST183,185..CV,GT4A |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-2B150 |
ST18#..CV,GT4,GTR,SR,ZR |
1 | ||
| 88717-2B050 |
ST183,185..CV,GT4A |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-2B080 |
ST183,185..CV,GT4A |
1 | ||
| 88717-2B131 |
ST18#..CV,GT4,GTR,SR,ZR |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-2B140 |
ST18#..CV,GT4,GTR,SR,ZR |
1 | ||
| 88717-2B090 |
ST183,185..CV,GT4A |
1 | ||
| 88720B - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-20391 |
ST183,185..CV,GT4A |
1 | ||
| Common parts | ||||
| 88467-12020 | ||||
| 88467-20060 | ||||
| 88688-2B380 | ||||
| 88688-2B570 | ||||
| 88688-2B600 | ||||
| 88688-2B620 | ||||
| 88718-2B180 | ||||
| 88718-2B190 | ||||
| 88718-2B280 | ||||
| 90091-20609 | ||||
| 90091-20809 | ||||
| 90179-06032 | ||||
| 91651-60835 | ||||
| 93315-14008 | ||||
| 93385-56025 | ||||

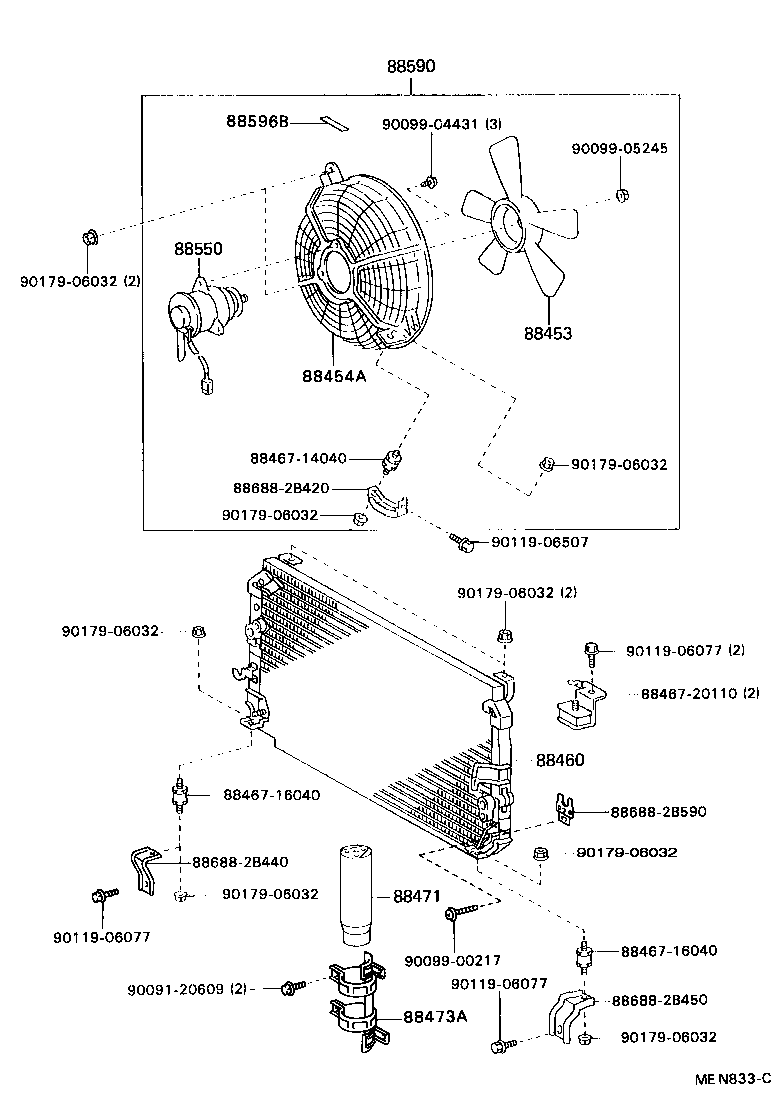

(9108- )CV,GT4,GTR,SR,ZR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-20060 |
ST183,185..ACT,CV,GT4A |
1 | ||
| 88453-20060 |
ST18# |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-20100 |
ST18#..CV,GT4,GTR,SR,ZR |
1 | ||
| 88454-20100 |
ST183,185..ACT,CV,GT4A |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-20330 |
ST183,185..CV,GT4A |
1 | ||
| 88460-20301 |
ST18#..CV,GT4,GTR,SR,ZR |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-16040 |
ST18#..CV,GT4,GTR,SR,ZR |
1 | ||
| 88471-16040 |
ST183,185..ACT,CV,GT4A |
1 | ||
| 88473A - HOLDER, RECEIVER | ||||
| 88473-20080 |
ST183..CV |
1 | ||
| 88473-20080 |
ST18#..CV,GT4,GTR,SR,ZR |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-20070 |
ST183,185..ACT,CV,GT4A |
1 | ||
| 88550-20070 |
ST18#..CV,GT4,GTR,SR,ZR |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-20240 |
ST183,185..CV,GT4A |
1 | ||
| 88590-20230 |
ST18#..CV,GT4,GTR,SR,ZR |
1 | ||
| 88596B - PLATE, CAUTION, NO.1 | ||||
| 88596-24010 |
ST18#..CV,GT4,GTR,SR,ZR |
1 | ||
| 88596-24010 |
ST183,185..ACT,CV,GT4A |
1 | ||
| Common parts | ||||
| 88467-14040 | ||||
| 88467-16040 | ||||
| 88467-20110 | ||||
| 88688-2B420 | ||||
| 88688-2B440 | ||||
| 88688-2B450 | ||||
| 88688-2B590 | ||||
| 90091-20609 | ||||
| 90099-00217 | ||||
| 90099-04431 | ||||
| 90099-05245 | ||||
| 90119-06077 | ||||
| 90119-06507 | ||||
| 90179-06032 | ||||

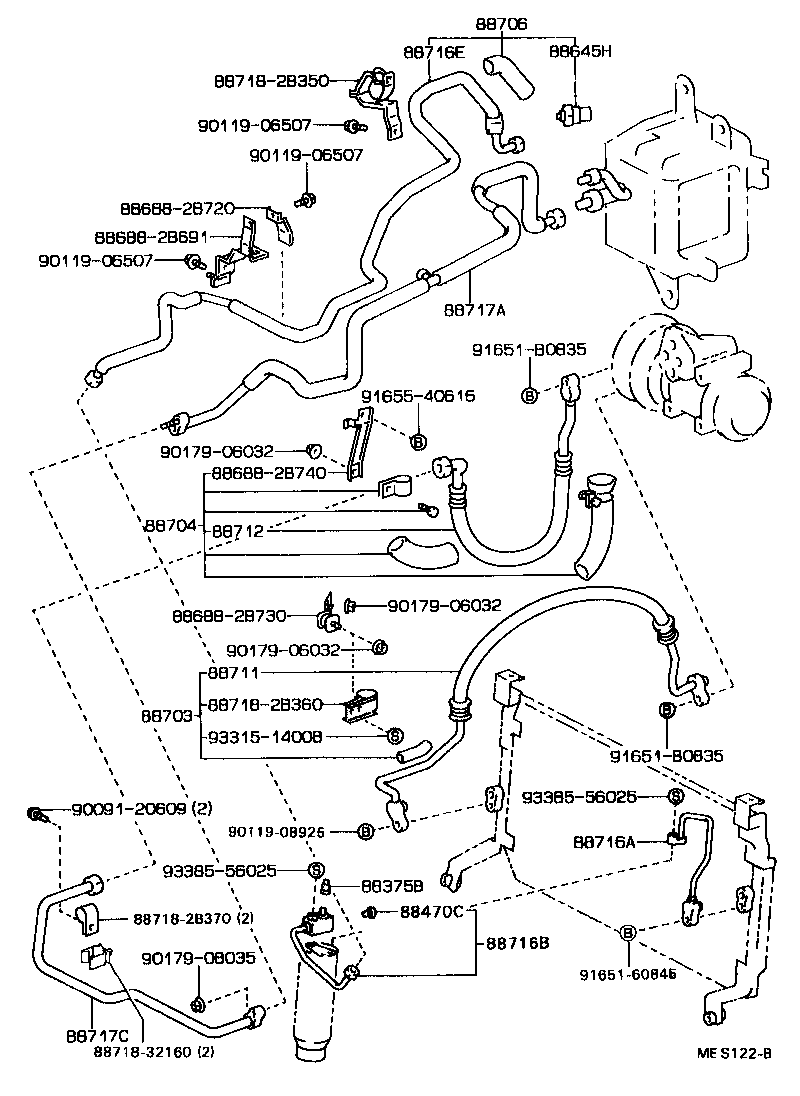

(9108- )CV,GT4,GTR,SR,ZR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-20010 |
ST18#..CV,GT4,GTR,SR,ZR |
1 | ||
| 88470C - BOLT, FUSE | ||||
| 88475-12020 |
ST18#..CV,GT4,GTR,SR,ZR |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-20040 |
ST183,185..CV,GT4A |
1 | ||
| 88645-20040 |
ST183,185..ACT,CV,GT4A |
1 | ||
| 88645-20040 |
ST18# |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-20061 |
ST182,183 |
1 | ||
| 88703-20060 |
ST183..ACT,CV |
1 | ||
| 88703-20060 |
ST182,183 |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-20111 |
ST18# |
1 | ||
| 88706 - PIPE SUB-ASSY, LIQUID | ||||
| 88706-20091 |
ST18#..CV,GT4,GTR,SR,ZR |
1 | ||
| 88706-20070 |
ST183,185..ACT,CV,GT4A |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-20710 |
ST183..ACT,CV |
1 | ||
| 88711-20710 |
ST182,183 |
1 | ||
| 88711-20790 |
ST182,183 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-2B121 |
ST183,185..CV,GT4A |
1 | ||
| 88712-2B180 |
ST18# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-2B760 |
ST183,185..CV,GT4A |
1 | ||
| 88716-2B760 |
ST18#..CV,GT4,GTR,SR,ZR |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2B850 |
ST183,185..CV,GT4A |
1 | ||
| 88716-2B870 |
ST18#..CV,GT4,GTR,SR,ZR |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-2D021 |
ST18#..CV,GT4,GTR,SR,ZR |
1 | ||
| 88716-2B860 |
ST183,185..CV,GT4A |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-2B150 |
ST18#..CV,GT4,GTR,SR,ZR |
1 | ||
| 88717-2B050 |
ST183,185..CV,GT4A |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-2B140 |
ST18#..CV,GT4,GTR,SR,ZR |
1 | ||
| 88717-2B090 |
ST183,185..CV,GT4A |
1 | ||
| Common parts | ||||
| 88688-2B691 | ||||
| 88688-2B720 | ||||
| 88688-2B730 | ||||
| 88688-2B740 | ||||
| 88718-2B350 | ||||
| 88718-2B360 | ||||
| 88718-2B370 | ||||
| 88718-32160 | ||||
| 90091-20609 | ||||
| 90119-06507 | ||||
| 90119-08925 | ||||
| 90179-06032 | ||||
| 90179-08035 | ||||
| 91651-60845 | ||||
| 91651-B0835 | ||||
| 91655-40616 | ||||
| 93315-14008 | ||||
| 93385-56025 | ||||
