Toyota Celica ST183 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
JP
CELICA
ST183C-BKMVF (1990)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

ST183C-BKMVF (1990)

Toyota Celica

Production Sep 1990 - Sep 1993

Engine 3SGE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

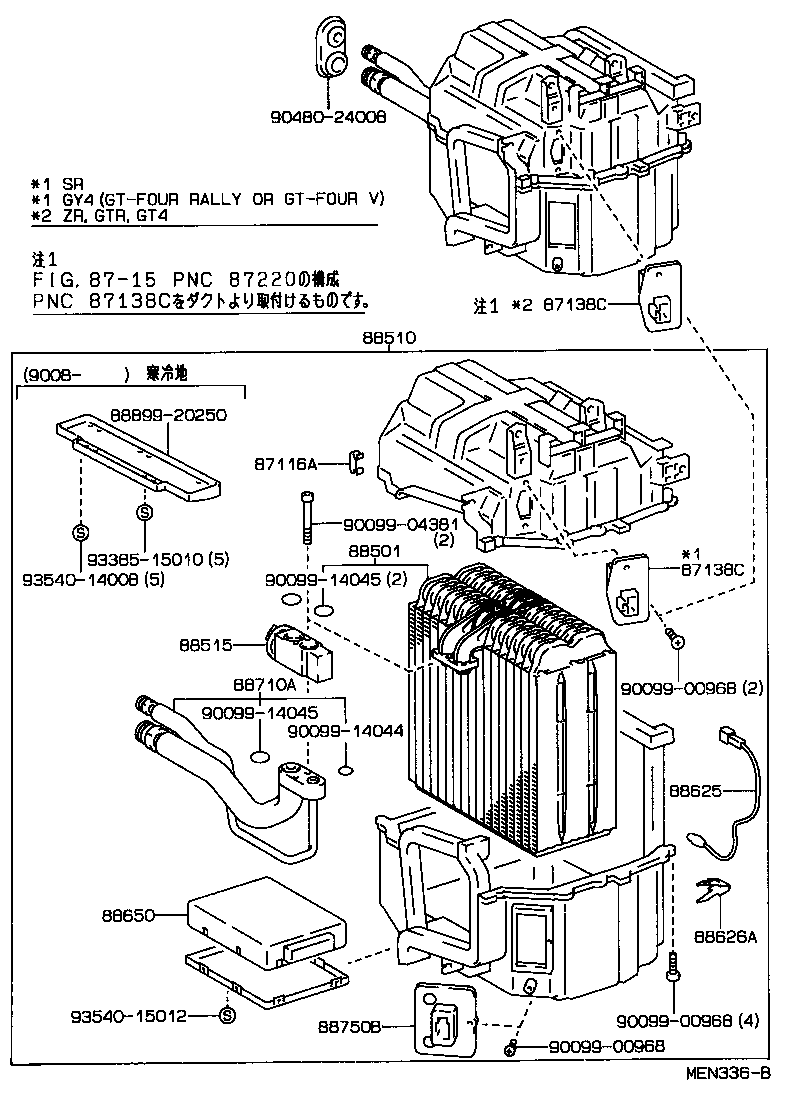

ILLUST NO. 1 OF 2(8909-9108)CV,GT4,GT4A,GTR,SR,ZR

Click highlighted areas on diagram

MANUAL

Part #	Description	Period	Qty
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010	ST182,183	09/1989 - 09/1990	4
87116-14010	ST18#	08/1991 - 09/1993	4
87116-14010	ST183..ACT,CV	09/1990 - 08/1991	4
87138C - RESISTOR, BLOWER
87138-20190	ST183..CV ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)	09/1990 - 09/1991	1
87138-20200	ST18#	10/1991 - 09/1993	1
87138-20180	ST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR	09/1989 - 10/1991	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-20280	ST183..CV	09/1990 - 09/1991	1
88501-20260	ST18#	09/1991 - 09/1993	1
88510 - UNIT ASSY, COOLER
88510-2B190	ST183..CV ｵ-ﾄ	09/1990 - 09/1991	1
88510-2B220	ST18#	09/1991 - 09/1993	1
88510-2B200	ST183..CV ﾏﾆﾕｱﾙ	09/1990 - 09/1991	1
88515 - VALVE, COOLER EXPANSION
88515-14060	ST182,183	09/1989 - 09/1993	1
88625 - THERMISTOR, COOLER, NO.1
88625-60060	ST183..CV ｵ-ﾄ	09/1990 - 09/1991	1
88625-20350	ST18#	09/1991 - 09/1993	1
88625-60050	ST183..CV ﾏﾆﾕｱﾙ	09/1990 - 09/1991	1
88626A - HOLDER, THERMISTOR
88626-28010	ST18#	09/1991 - 09/1993	2
88626-28010	ST183,185..ACT,CV,GT4A	09/1990 - 09/1991	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-20660	ST18#	09/1989 - 09/1990	1
88650-2B140	ST18#	09/1991 - 09/1993	1
88650-20660	ST18#..CV,GT4,GT4A,GTR,SR,ZR	09/1990 - 03/1991	1
88650-2B070	ST183..CV	03/1991 - 09/1991	1
88650-2B070	ST18# ｶﾝﾚｲﾁｼﾖｳ	09/1990 - 03/1991	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-20270	ST18#	08/1991 - 09/1993	1
Common parts
88899-20250
90099-00968
90099-04381
90099-14044
90099-14045
90480-24008
93385-15010
93540-14008
93540-15012

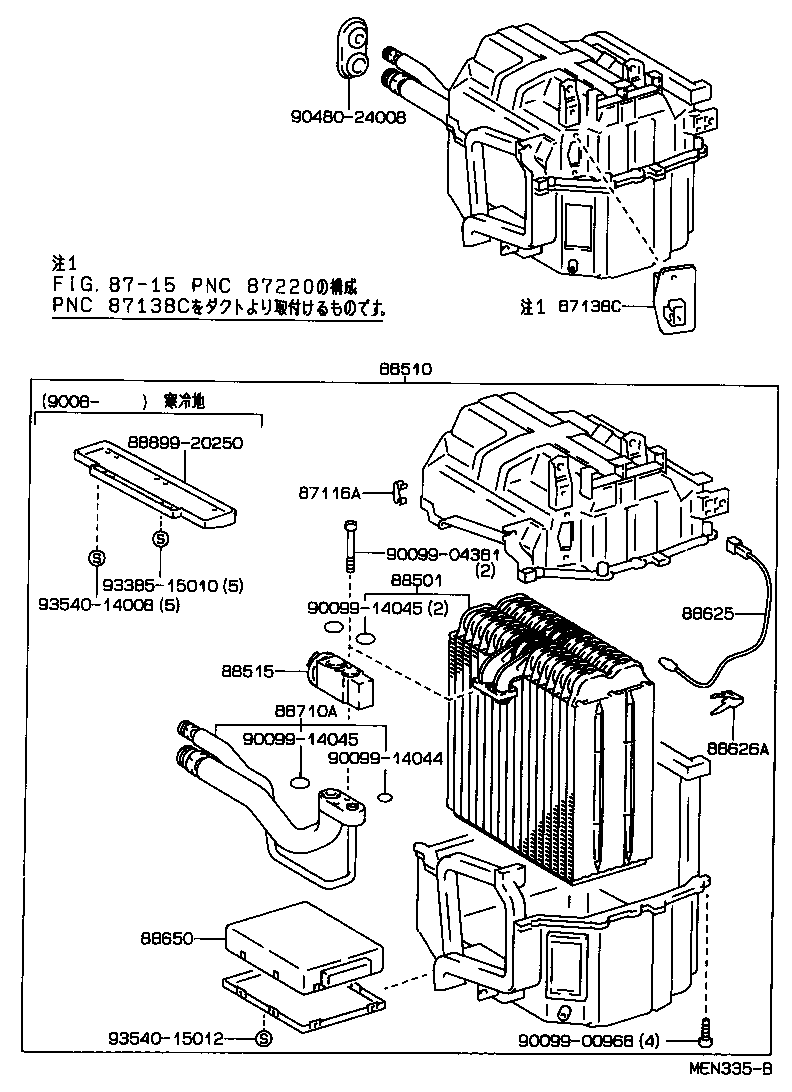

ILLUST NO. 1 OF 2(8909-9108)CV,GT4,GT4A,GTR,SR,ZR

Click highlighted areas on diagram

AUTO

Part #	Description	Period	Qty
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010	ST182,183	09/1989 - 09/1990	4
87116-14010	ST18#	08/1991 - 09/1993	4
87116-14010	ST183..ACT,CV	09/1990 - 08/1991	4
87138C - RESISTOR, BLOWER
87138-20190	ST183..CV ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)	09/1990 - 09/1991	1
87138-20200	ST18#	10/1991 - 09/1993	1
87138-20180	ST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR	09/1989 - 10/1991	1
87138C - RESISTOR, BLOWER
87138-20190	ST183..CV ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)	09/1990 - 09/1991	1
87138-20200	ST18#	10/1991 - 09/1993	1
87138-20180	ST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR	09/1989 - 10/1991	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-20280	ST183..CV	09/1990 - 09/1991	1
88501-20260	ST18#	09/1991 - 09/1993	1
88510 - UNIT ASSY, COOLER
88510-2B190	ST183..CV ｵ-ﾄ	09/1990 - 09/1991	1
88510-2B220	ST18#	09/1991 - 09/1993	1
88510-2B200	ST183..CV ﾏﾆﾕｱﾙ	09/1990 - 09/1991	1
88515 - VALVE, COOLER EXPANSION
88515-14060	ST182,183	09/1989 - 09/1993	1
88625 - THERMISTOR, COOLER, NO.1
88625-60060	ST183..CV ｵ-ﾄ	09/1990 - 09/1991	1
88625-20350	ST18#	09/1991 - 09/1993	1
88625-60050	ST183..CV ﾏﾆﾕｱﾙ	09/1990 - 09/1991	1
88626A - HOLDER, THERMISTOR
88626-28010	ST18#	09/1991 - 09/1993	2
88626-28010	ST183,185..ACT,CV,GT4A	09/1990 - 09/1991	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-20660	ST18#	09/1989 - 09/1990	1
88650-2B140	ST18#	09/1991 - 09/1993	1
88650-20660	ST18#..CV,GT4,GT4A,GTR,SR,ZR	09/1990 - 03/1991	1
88650-2B070	ST183..CV	03/1991 - 09/1991	1
88650-2B070	ST18# ｶﾝﾚｲﾁｼﾖｳ	09/1990 - 03/1991	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-20270	ST18#	08/1991 - 09/1993	1
88750B - TRANSISTOR ASSY, BLOWER RESISTOR
88750-20010	ST18#	08/1991 - 09/1993	1
88750-20010	ST183,185..CV,GT4A	09/1990 - 08/1991	1
Common parts
88899-20250
90099-00968
90099-04381
90099-14044
90099-14045
90480-24008
93385-15010
93540-14008
93540-15012

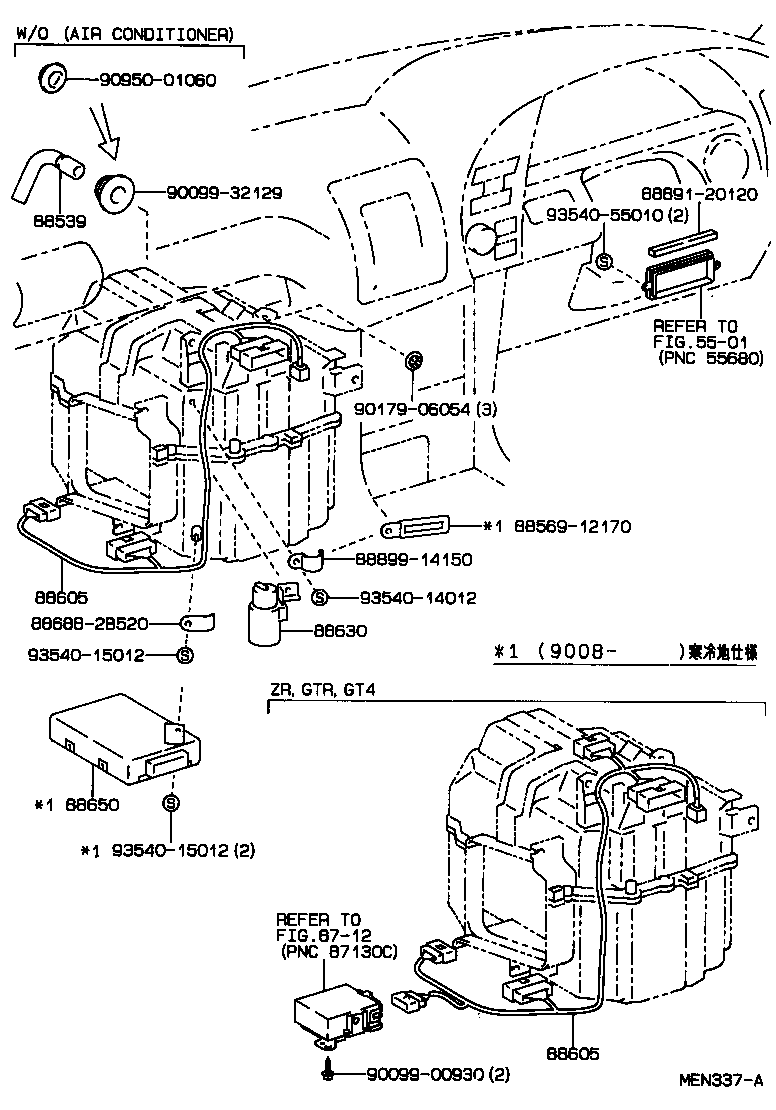

ILLUST NO. 2 OF 2(8909-9108)CV,GT4,GT4A,GTR,SR,ZR

Click highlighted areas on diagram

Part #	Description	Period	Qty
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-22110	ST18#	08/1991 - 09/1993	1
88539-22110	ST183,185..ACT,CV,GT4A	09/1990 - 08/1991	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-2D070	ST183..CV ﾏﾆﾕｱﾙ	09/1990 - 09/1991	1
88605-2D061	ST18#	09/1991 - 09/1993	1
88605-2D060	ST183..CV ｵ-ﾄ	09/1990 - 09/1991	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-2D070	ST183..CV ﾏﾆﾕｱﾙ	09/1990 - 09/1991	1
88605-2D061	ST18#	09/1991 - 09/1993	1
88605-2D060	ST183..CV ｵ-ﾄ	09/1990 - 09/1991	1
88630 - RELAY ASSY, COOLER
88630-20230	ST18#	09/1991 - 09/1993	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-20660	ST18#	09/1989 - 09/1990	1
88650-2B140	ST18#	09/1991 - 09/1993	1
88650-20660	ST18#..CV,GT4,GT4A,GTR,SR,ZR	09/1990 - 03/1991	1
88650-2B070	ST183..CV	03/1991 - 09/1991	1
88650-2B070	ST18# ｶﾝﾚｲﾁｼﾖｳ	09/1990 - 03/1991	1
Common parts
88569-12170
88688-2B520
88891-20120
88899-14150
90099-00930
90099-32129
90179-06054
90950-01060
93540-14012
93540-15012
93540-55010
Linked diagrams
5501
8712

(9108- )

Click highlighted areas on diagram

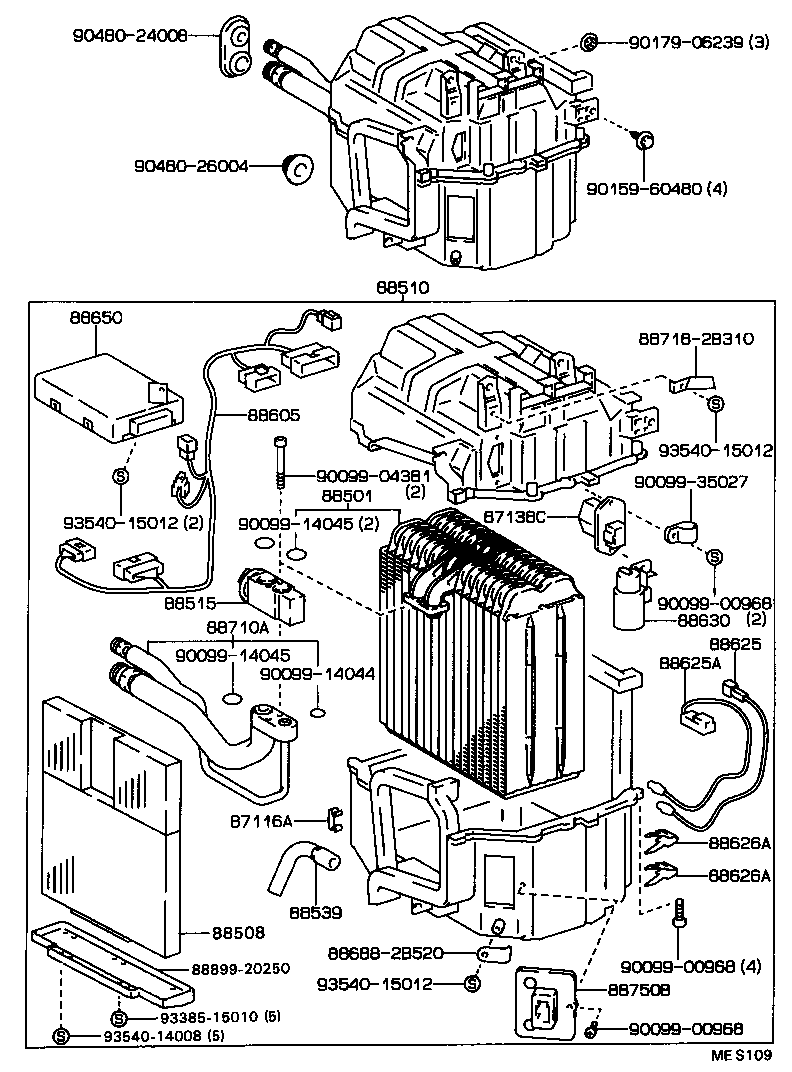

Part #	Description	Period	Qty
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010	ST182,183	09/1989 - 09/1990	4
87116-14010	ST18#	08/1991 - 09/1993	4
87116-14010	ST183..ACT,CV	09/1990 - 08/1991	4
87138C - RESISTOR, BLOWER
87138-20190	ST183..CV ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)	09/1990 - 09/1991	1
87138-20200	ST18#	10/1991 - 09/1993	1
87138-20180	ST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR	09/1989 - 10/1991	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-20280	ST183..CV	09/1990 - 09/1991	1
88501-20260	ST18#	09/1991 - 09/1993	1
88510 - UNIT ASSY, COOLER
88510-2B190	ST183..CV ｵ-ﾄ	09/1990 - 09/1991	1
88510-2B220	ST18#	09/1991 - 09/1993	1
88510-2B200	ST183..CV ﾏﾆﾕｱﾙ	09/1990 - 09/1991	1
88515 - VALVE, COOLER EXPANSION
88515-14060	ST182,183	09/1989 - 09/1993	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-22110	ST18#	08/1991 - 09/1993	1
88539-22110	ST183,185..ACT,CV,GT4A	09/1990 - 08/1991	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-2D070	ST183..CV ﾏﾆﾕｱﾙ	09/1990 - 09/1991	1
88605-2D061	ST18#	09/1991 - 09/1993	1
88605-2D060	ST183..CV ｵ-ﾄ	09/1990 - 09/1991	1
88625 - THERMISTOR, COOLER, NO.1
88625-60060	ST183..CV ｵ-ﾄ	09/1990 - 09/1991	1
88625-20350	ST18#	09/1991 - 09/1993	1
88625-60050	ST183..CV ﾏﾆﾕｱﾙ	09/1990 - 09/1991	1
88625A - THERMISTOR, COOLER NO.2
88625-20340	ST18#	09/1991 - 09/1993	1
88626A - HOLDER, THERMISTOR
88626-28010	ST18#	09/1991 - 09/1993	2
88626-28010	ST183,185..ACT,CV,GT4A	09/1990 - 09/1991	1
88626A - HOLDER, THERMISTOR
88626-28010	ST18#	09/1991 - 09/1993	2
88626-28010	ST183,185..ACT,CV,GT4A	09/1990 - 09/1991	1
88630 - RELAY ASSY, COOLER
88630-20230	ST18#	09/1991 - 09/1993	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-20660	ST18#	09/1989 - 09/1990	1
88650-2B140	ST18#	09/1991 - 09/1993	1
88650-20660	ST18#..CV,GT4,GT4A,GTR,SR,ZR	09/1990 - 03/1991	1
88650-2B070	ST183..CV	03/1991 - 09/1991	1
88650-2B070	ST18# ｶﾝﾚｲﾁｼﾖｳ	09/1990 - 03/1991	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-20270	ST18#	08/1991 - 09/1993	1
88750B - TRANSISTOR ASSY, BLOWER RESISTOR
88750-20010	ST18#	08/1991 - 09/1993	1
88750-20010	ST183,185..CV,GT4A	09/1990 - 08/1991	1
Common parts
88688-2B520
88718-2B310
90099-00968
90099-04381
90099-14044
90099-14045
90099-35027
90159-60480
90179-06239
90480-24008
90480-26004
93540-15012

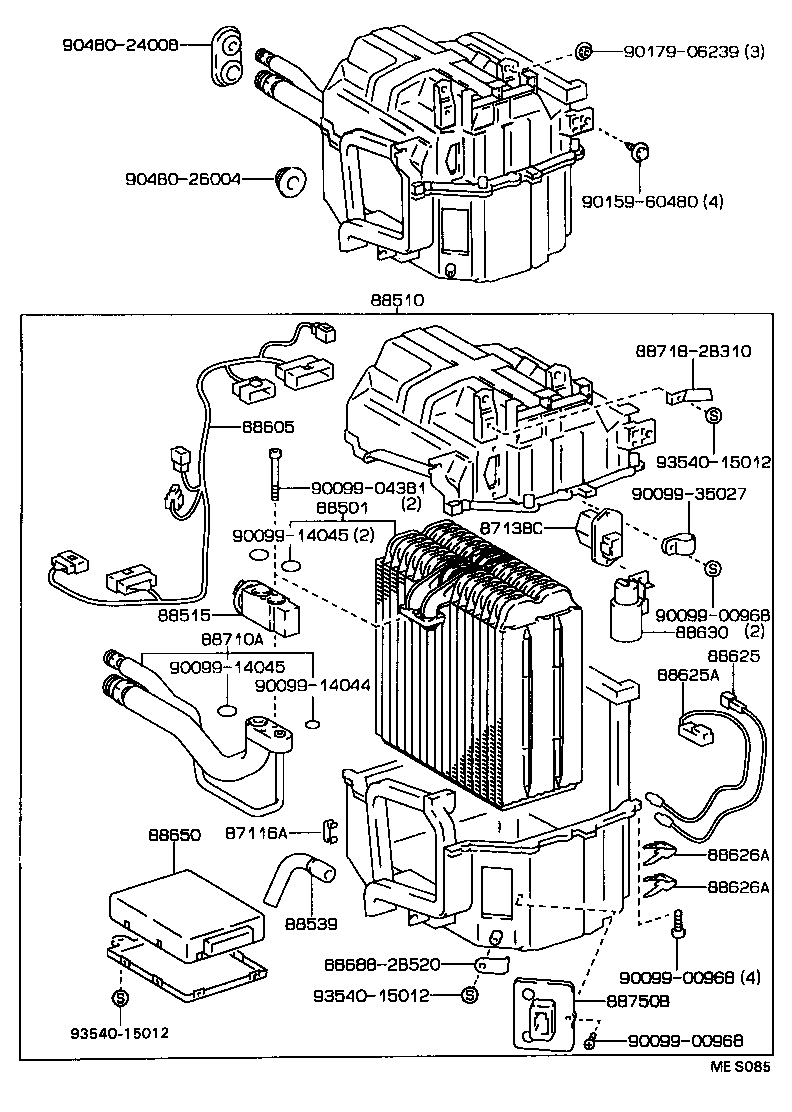

(9108- )

Click highlighted areas on diagram

ｶﾝﾚｲﾁ(ｸﾞﾘ-ﾝｴｱﾌｲﾙﾀﾂｷ)

Part #	Description	Period	Qty
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010	ST182,183	09/1989 - 09/1990	4
87116-14010	ST18#	08/1991 - 09/1993	4
87116-14010	ST183..ACT,CV	09/1990 - 08/1991	4
87138C - RESISTOR, BLOWER
87138-20190	ST183..CV ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ)	09/1990 - 09/1991	1
87138-20200	ST18#	10/1991 - 09/1993	1
87138-20180	ST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR	09/1989 - 10/1991	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-20280	ST183..CV	09/1990 - 09/1991	1
88501-20260	ST18#	09/1991 - 09/1993	1
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-20010	ST183..CV	08/1991 - 09/1991	1
88510 - UNIT ASSY, COOLER
88510-2B190	ST183..CV ｵ-ﾄ	09/1990 - 09/1991	1
88510-2B220	ST18#	09/1991 - 09/1993	1
88510-2B200	ST183..CV ﾏﾆﾕｱﾙ	09/1990 - 09/1991	1
88515 - VALVE, COOLER EXPANSION
88515-14060	ST182,183	09/1989 - 09/1993	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-22110	ST18#	08/1991 - 09/1993	1
88539-22110	ST183,185..ACT,CV,GT4A	09/1990 - 08/1991	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-2D070	ST183..CV ﾏﾆﾕｱﾙ	09/1990 - 09/1991	1
88605-2D061	ST18#	09/1991 - 09/1993	1
88605-2D060	ST183..CV ｵ-ﾄ	09/1990 - 09/1991	1
88625 - THERMISTOR, COOLER, NO.1
88625-60060	ST183..CV ｵ-ﾄ	09/1990 - 09/1991	1
88625-20350	ST18#	09/1991 - 09/1993	1
88625-60050	ST183..CV ﾏﾆﾕｱﾙ	09/1990 - 09/1991	1
88625A - THERMISTOR, COOLER NO.2
88625-20340	ST18#	09/1991 - 09/1993	1
88626A - HOLDER, THERMISTOR
88626-28010	ST18#	09/1991 - 09/1993	2
88626-28010	ST183,185..ACT,CV,GT4A	09/1990 - 09/1991	1
88626A - HOLDER, THERMISTOR
88626-28010	ST18#	09/1991 - 09/1993	2
88626-28010	ST183,185..ACT,CV,GT4A	09/1990 - 09/1991	1
88630 - RELAY ASSY, COOLER
88630-20230	ST18#	09/1991 - 09/1993	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-20660	ST18#	09/1989 - 09/1990	1
88650-2B140	ST18#	09/1991 - 09/1993	1
88650-20660	ST18#..CV,GT4,GT4A,GTR,SR,ZR	09/1990 - 03/1991	1
88650-2B070	ST183..CV	03/1991 - 09/1991	1
88650-2B070	ST18# ｶﾝﾚｲﾁｼﾖｳ	09/1990 - 03/1991	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-20270	ST18#	08/1991 - 09/1993	1
88750B - TRANSISTOR ASSY, BLOWER RESISTOR
88750-20010	ST18#	08/1991 - 09/1993	1
88750-20010	ST183,185..CV,GT4A	09/1990 - 08/1991	1
Common parts
88688-2B520
88718-2B310
88899-20250
90099-00968
90099-04381
90099-14044
90099-14045
90099-35027
90159-60480
90179-06239
90480-24008
90480-26004
93385-15010
93540-14008
93540-15012

ST183C-BKMVF (1990)

ILLUST NO. 1 OF 2(8909-9108)CV,GT4,GT4A,GTR,SR,ZR

ILLUST NO. 1 OF 2(8909-9108)CV,GT4,GT4A,GTR,SR,ZR

ILLUST NO. 2 OF 2(8909-9108)CV,GT4,GT4A,GTR,SR,ZR

(9108- )

(9108- )

Part Price Details
