ST183-BLPSK (1989)

Toyota Celica

Production Sep 1989 - Aug 1991
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

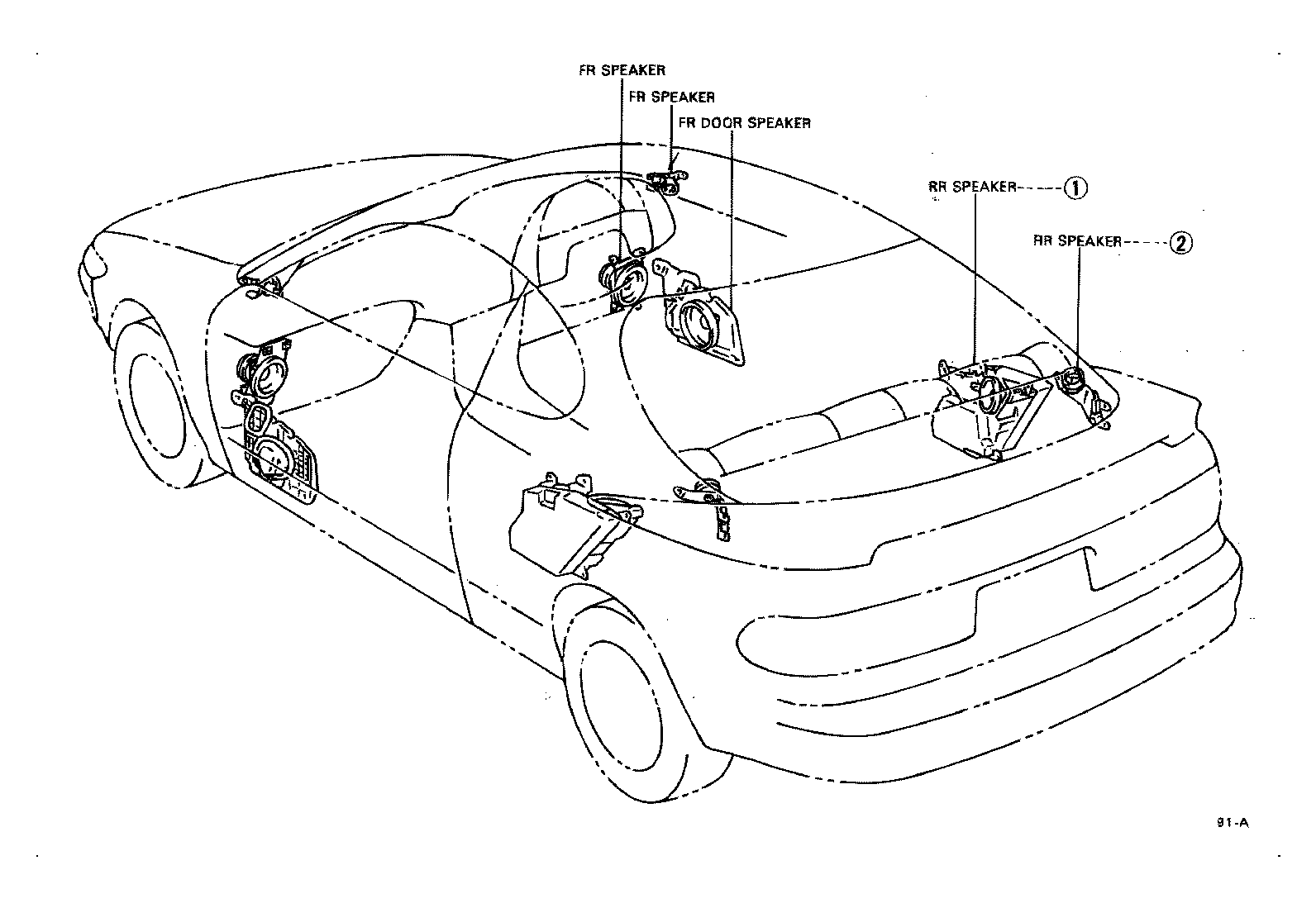

ILLUST NO. 1 OF 4(8909- )

Click highlighted areas on diagram

diagram
Part # Description Qty Price

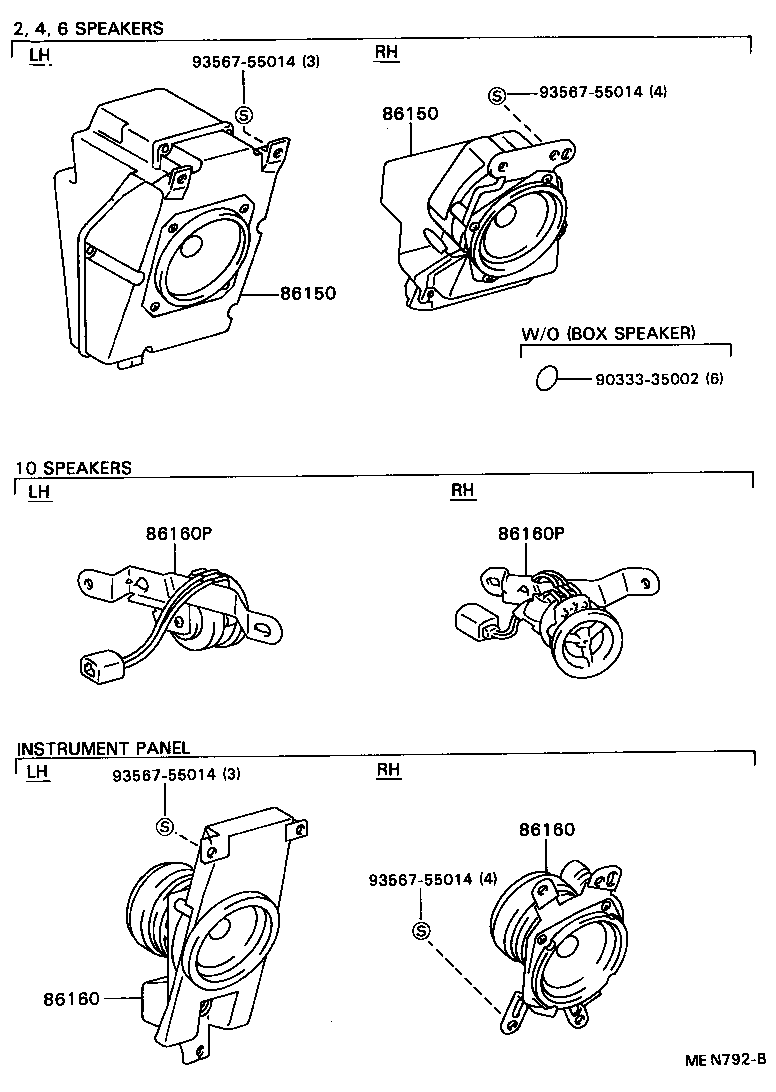

ILLUST NO. 2 OF 4(8909- )

Click highlighted areas on diagram

FR SPEAKER

diagram 86150 86150 86160 86160 86160P 86160P 9033335002 9356755014 9356755014 9356755014 9356755014
Part # Description Qty Price
86150 - SPEAKER ASSY, W/BOX, NO.1
86150-20190

ST18#..GT4,GT4RC,GTR,SR,ZR

左側

 1
86150-20180

ST18#..GT4,GT4RC,GTR,SR,ZR

右側

 1
86150 - SPEAKER ASSY, W/BOX, NO.1
86150-20190

ST18#..GT4,GT4RC,GTR,SR,ZR

左側

 1
86150-20180

ST18#..GT4,GT4RC,GTR,SR,ZR

右側

 1
86160P - SPEAKER ASSY, FRONT NO.2
86160-20780

ST18#

左側

 1
86160-20770

ST18#

右側

 1
86160P - SPEAKER ASSY, FRONT NO.2
86160-20780

ST18#

左側

 1
86160-20770

ST18#

右側

 1
Common parts
90333-35002
93567-55014

ILLUST NO. 3 OF 4(8909- )

Click highlighted areas on diagram

FR DOOR SPEAKER

diagram 86160 86160 86167 86167 86217 86217 9017906015 9017906015 9033335002 9166560616 9166560616
Part # Description Qty Price
Common parts
90179-06015
90333-35002
91665-60616

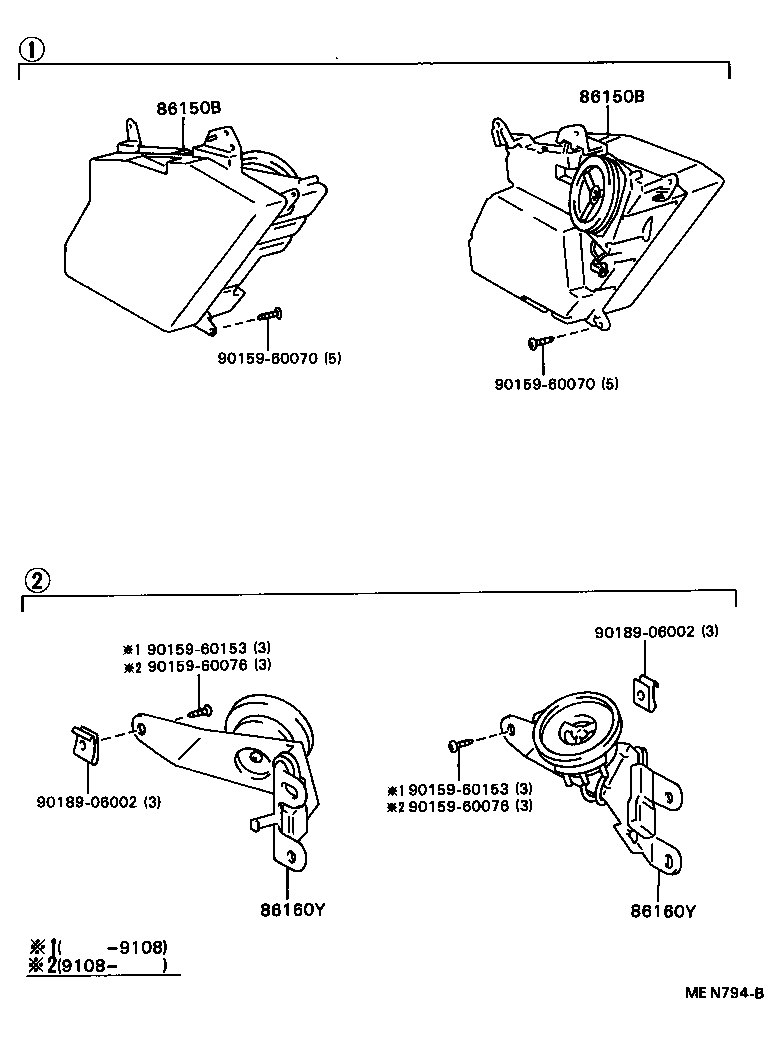

ILLUST NO. 4 OF 4(8909- )LB

Click highlighted areas on diagram

RR SPEAKER

diagram 86150B 86150B 86160Y 86160Y 9015960070 9015960070 9015960076 9015960076 9015960153 9015960153 9018906002 9018906002
Part # Description Qty Price
86150B - SPEAKER ASSY, W/BOX, NO.2
86150-20250

ST18#..LB

右側

 1
86150-20260

ST18#..LB

左側

 1
86150B - SPEAKER ASSY, W/BOX, NO.2
86150-20250

ST18#..LB

右側

 1
86150-20260

ST18#..LB

左側

 1
Common parts
90159-60070
90159-60076
90159-60153
90189-06002
