ST183-BLPSK (1989)

Toyota Celica

Production Sep 1989 - Aug 1991
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8909- )

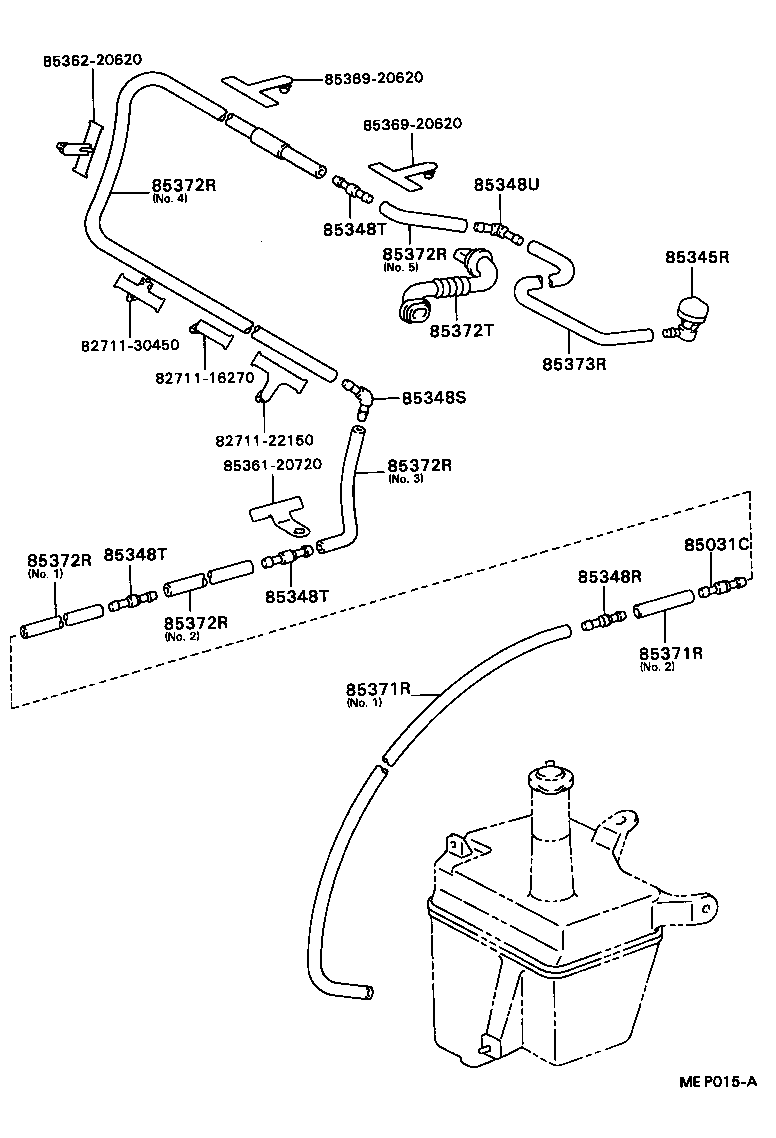

Click highlighted areas on diagram

diagram 8271116270 8271122150 8271130450 85031C 85345R 85348R 85348S 85348T 85348T 85348T 85348U 8536120720 8536220620 8536920620 8536920620 85371R 85371R 85372R 85372R 85372R 85372R 85372R 85372T 85373R
Part # Description Qty Price
85031C - VALVE SUB-ASSY, WASHER
85031-12250

ST18#..LB

 1
85345R - NOZZLE, REAR WASHER
85341-20220

ST18#..LB

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

ST18#..LB

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-20200

ST18#..LB

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

ST18#..LB

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

ST18#..LB

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

ST18#..LB

 1
85348U - JOINT, REAR WASHER HOSE, NO.3
85355-32020

ST18#..LB

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90099-33131

ST18#..ACT,GT4,GT4A,GTR,SR,ZR

*H,L=50,NO.2

 1
90099-33616

ST18#..LB

*H,L=650,NO.1

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90099-33131

ST18#..ACT,GT4,GT4A,GTR,SR,ZR

*H,L=50,NO.2

 1
90099-33616

ST18#..LB

*H,L=650,NO.1

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90446-07001

ST18#

*H,L=2450,NO.1,NO.3,NO.2

 1
90099-33299

ST18#..LB

長さ=120,NO.5

 1
90099-33410

ST18#

*H,L=1100,NO.4

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90446-07001

ST18#

*H,L=2450,NO.1,NO.3,NO.2

 1
90099-33299

ST18#..LB

長さ=120,NO.5

 1
90099-33410

ST18#

*H,L=1100,NO.4

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33410

ST18#

*H,L=1100,NO.4

 1
90446-07001

ST18#

*H,L=2450,NO.1,NO.3,NO.2

 1
90099-33299

ST18#..LB

長さ=120,NO.5

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90446-07001

ST18#

*H,L=2450,NO.1,NO.3,NO.2

 1
90099-33299

ST18#..LB

長さ=120,NO.5

 1
90099-33410

ST18#

*H,L=1100,NO.4

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33410

ST18#

*H,L=1100,NO.4

 1
90446-07001

ST18#

*H,L=2450,NO.1,NO.3,NO.2

 1
90099-33299

ST18#..LB

長さ=120,NO.5

 1
85372T - GROMMET, WASHER
85372-20060

ST18#..LB

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33080

ST18#..LB

L=1450

 1
Common parts
82711-16270
82711-22150
82711-30450
85361-20720
85362-20620
85369-20620
