ST183-BLPSK (1989)

Toyota Celica

Production Sep 1989 - Aug 1991
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9009- )

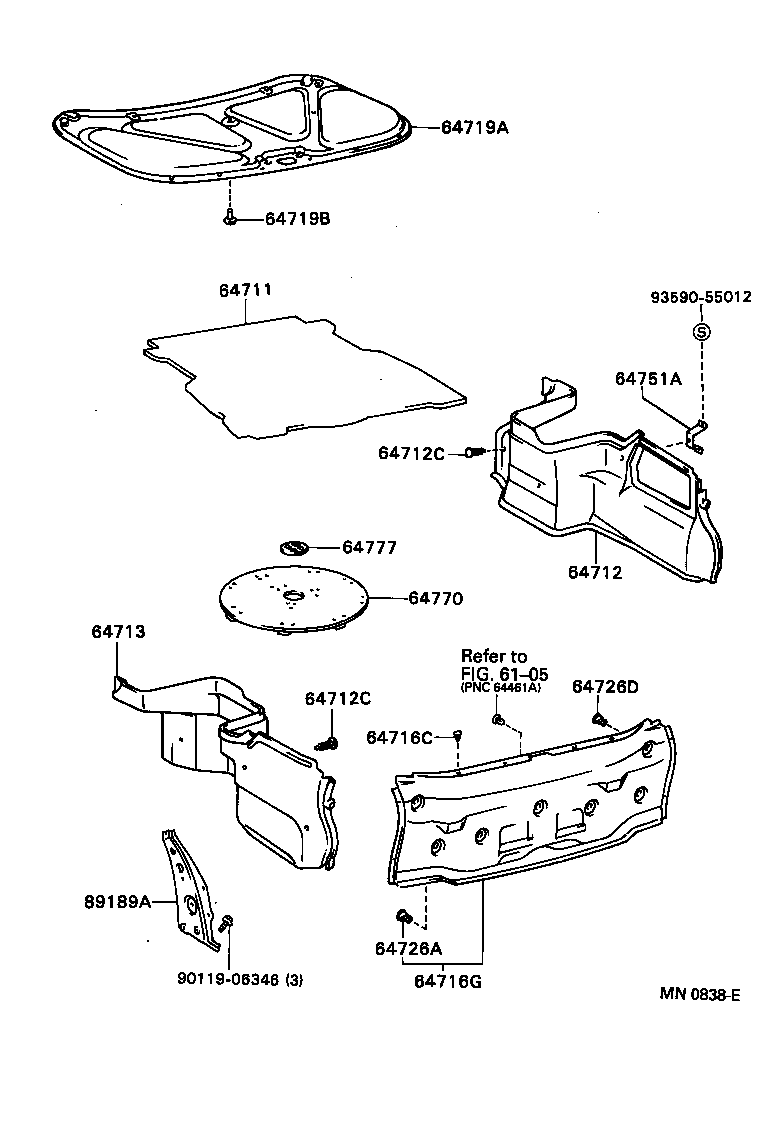

Click highlighted areas on diagram

diagram 6105 64711 64712 64712C 64712C 64713 64716C 64716G 64719A 64719B 64726A 64726D 64751A 64770 64777 89189A 9011906346 9359055012
Part # Description Qty Price
Common parts
90119-06346
93590-55012
Linked diagrams
6105
