ST183-BLMZF (1990)

Toyota Celica

Production Apr 1990 - Aug 1991
Engine 3SGE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9004- )ACT,GT4RC

Click highlighted areas on diagram

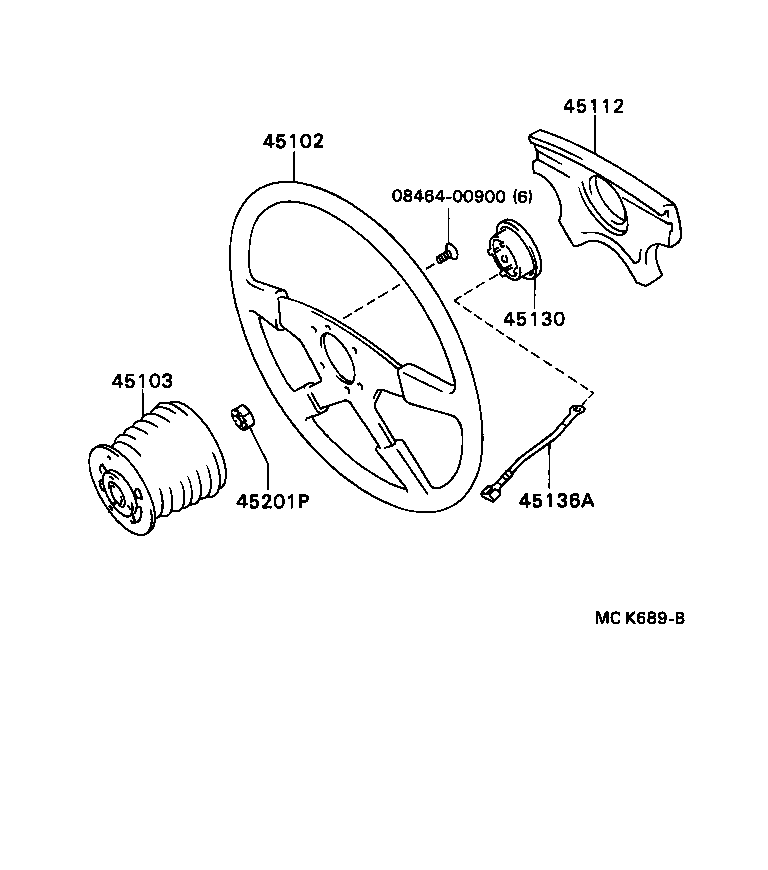

diagram 0846400900 45102 45103 45112 45130 45136A 45201P
Part # Description Qty Price
45103 - HUB SUB-ASSY, STEERING WHEEL
08464-00126

ST183..ACT

 1
45130 - BUTTON ASSY, HORN
45130-2085003

ST183..ACT

ｱﾘ(*80),GRAY,SHADOW GRAY,TRIM1#

 1
45130-3231013

ST183..ACT

ｱﾘ(*80),GRAY,TRIM1#

 1
45136A - CORD(FOR HORN CONTACT RING)
08464-00800

ST183..ACT

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

ST18#

 1
Common parts
08464-00900
