ST183-BLMVF (1989)
Toyota Celica
Production
Sep 1989
-
Sep 1993
Engine
3SGE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8909- )

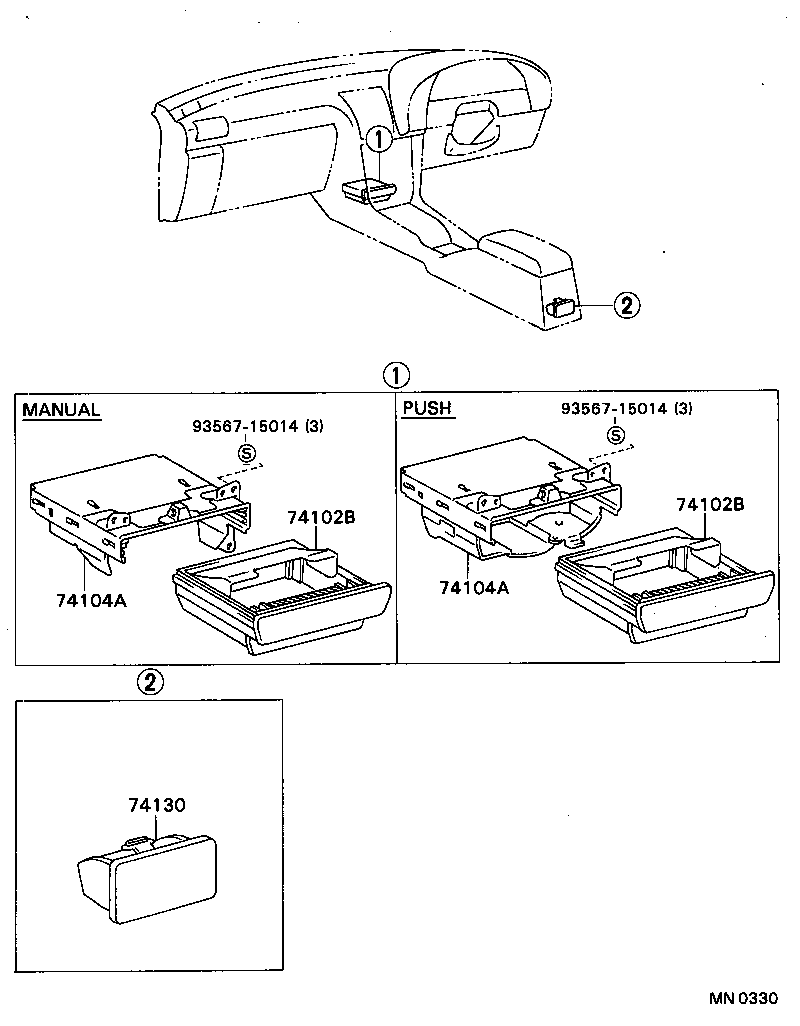

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE | ||||
| 74102-20210 |
ST18# |
1 | ||
| 74102-20210 |
ST18#..ACT,GT4,GTR,ZR |
1 | ||
| 74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE | ||||
| 74102-20210 |
ST18# |
1 | ||
| 74102-20210 |
ST18#..ACT,GT4,GTR,ZR |
1 | ||
| 74104A - RETAINER SUB-ASSY, FRONT ASH RECEPTACLE | ||||
| 74104-20250 |
ST18#..ACT,GT4,GTR,ZR |
1 | ||
| 74104-20250 |
ST18# ﾌﾟﾂｼﾕ ﾀｲﾌﾟ |
1 | ||
| 74104A - RETAINER SUB-ASSY, FRONT ASH RECEPTACLE | ||||
| 74104-20250 |
ST18#..ACT,GT4,GTR,ZR |
1 | ||
| 74104-20250 |
ST18# ﾌﾟﾂｼﾕ ﾀｲﾌﾟ |
1 | ||
| 74130 - RECEPTACLE ASSY, REAR ASH | ||||
| 74109-2008004 |
ST182,183..GTR,SR,ZR BLUE,TRIM8# |
1 | ||
| 74109-2008003 |
ST18# GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 93567-15014 | ||||
