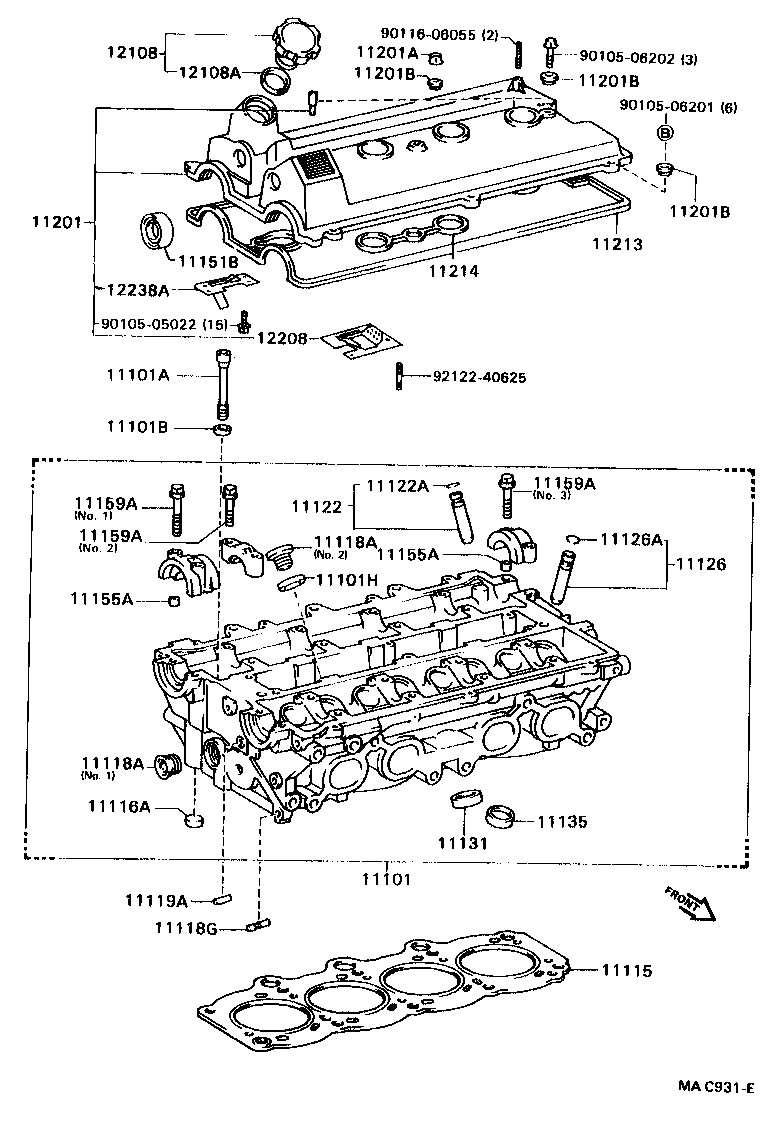

Toyota Celica ST183 CYLINDER HEAD

Part #	Description	Period	Qty
11101 - HEAD SUB-ASSY, CYLINDER
11101-74120	3SGE..ST182,183	09/1989 - 11/1989	1
11101-74121	3SGE..ST182,183	11/1989 - 09/1993	1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02094	3SG#..ST18#	09/1989 - 09/1993	10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-11026	3SFE,3SGE..ST182,183	09/1989 - 09/1993	10
11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-27005	3SGE..ST182,183	08/1990 - 09/1993	2
90430-27004	3SGE..ST182,183	11/1989 - 08/1990	2
11115 - GASKET, CYLINDER HEAD
11115-74090	3SGE..ST182,183	09/1989 - 09/1993	1
11116A - PLUG, TIGHT, NO.1
96411-41800	3SGE..ST182,183	09/1989 - 09/1993	4
11118A - PLUG, STRAIGHT, NO.1
90341-27006	3SGE..ST182,183 OD=36,NO.2	08/1990 - 09/1990	2
90341-27003	3SGE..ST182,183 OD=30,NO.2	09/1989 - 11/1989	2
90341-27005	3SGE..ST182,183 OD=36,NO.2	11/1989 - 08/1990	2
90341-27006	3SGE..ST182,183 OD=30,NO.2	09/1990 - 08/1991	2
90341-32031	3SGE..ST182,183 OD=36,NO.1	09/1989 - 08/1991	1
90341-27006	3SGE..ST182,183..GTR OD=30,NO.2	08/1991 - 09/1991	2
90341-32031	3SGE..ST182,183 OD=36,NO.1	09/1991 - 09/1993	1
90341-32031	3SGE..ST182,183..GTR OD=36,NO.1	08/1991 - 09/1991	1
90341-27006	3SGE..ST182,183 OD=30,NO.2	09/1991 - 09/1993	2
11118A - PLUG, STRAIGHT, NO.1
90341-27006	3SGE..ST182,183 OD=36,NO.2	08/1990 - 09/1990	2
90341-27003	3SGE..ST182,183 OD=30,NO.2	09/1989 - 11/1989	2
90341-27005	3SGE..ST182,183 OD=36,NO.2	11/1989 - 08/1990	2
90341-27006	3SGE..ST182,183 OD=30,NO.2	09/1990 - 08/1991	2
90341-32031	3SGE..ST182,183 OD=36,NO.1	09/1989 - 08/1991	1
90341-27006	3SGE..ST182,183..GTR OD=30,NO.2	08/1991 - 09/1991	2
90341-32031	3SGE..ST182,183 OD=36,NO.1	09/1991 - 09/1993	1
90341-32031	3SGE..ST182,183..GTR OD=36,NO.1	08/1991 - 09/1991	1
90341-27006	3SGE..ST182,183 OD=30,NO.2	09/1991 - 09/1993	2
11118G - PIN, SLOTTED SPRING, NO.1
90249-06052	3SGE..ST182,183	09/1989 - 09/1993	1
11119A - PIN, STRAIGHT, NO.1
90250-06003	3SFE,3SGE..ST182,183;3SGTE..ST185..WIB..(GT4,GT4RC) 長さ=14,外径=6	09/1989 - 09/1993	1
11122 - BUSH, INTAKE VALVE GUIDE
11123-88320	3SG#..ST18# O/S 0.05	09/1989 - 09/1993	8
11122-88320	3SG#..ST18# STD	09/1989 - 09/1993	8
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-10004	3SGE..ST182,183	09/1989 - 09/1993	8
11126 - BUSH, EXHAUST VALVE GUIDE
11122-88320	3SG#..ST18# STD	09/1989 - 09/1993	8
11123-88320	3SG#..ST18# O/S 0.05	09/1989 - 09/1993	8
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-10004	3SGE..ST182,183	09/1989 - 09/1993	8
11131 - SEAT, INTAKE VALVE
11132-74010	3SG#..ST18# O/S 0.03	09/1989 - 09/1993	8
11131-74010	3SG#..ST18# STD	09/1989 - 09/1993	8
11135 - SEAT, EXHAUST VALVE
11135-74010	3SG#..ST18# STD	09/1989 - 09/1993	8
11136-74010	3SG#..ST18# O/S 0.03	09/1989 - 09/1993	8
11151B - SEAL, OIL(FOR CAMSHAFT SETTING)
90311-35022	3SGE..ST182,183	09/1989 - 04/1990	2
90311-35022	3SG#..ST18#	04/1990 - 09/1993	2
11155A - PIN, RING W/HEAD
90253-10004	3SFE,3SG#..ST18#	09/1989 - 09/1993	6
11155A - PIN, RING W/HEAD
90253-10004	3SFE,3SG#..ST18#	09/1989 - 09/1993	6
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-07002	3SG#..ST18# NO.2	09/1989 - 09/1993	16
90119-07001	3SG#..ST18# NO.1	09/1989 - 09/1993	4
90119-07003	3SG#..ST18# NO.3	09/1989 - 09/1993	2
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-07002	3SG#..ST18# NO.2	09/1989 - 09/1993	16
90119-07001	3SG#..ST18# NO.1	09/1989 - 09/1993	4
90119-07003	3SG#..ST18# NO.3	09/1989 - 09/1993	2
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-07002	3SG#..ST18# NO.2	09/1989 - 09/1993	16
90119-07001	3SG#..ST18# NO.1	09/1989 - 09/1993	4
90119-07003	3SG#..ST18# NO.3	09/1989 - 09/1993	2
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-74040	3SGE..ST182,183	09/1989 - 10/1990	1
11201-74042	3SGE..ST182,183	12/1990 - 09/1993	1
11201-74041	3SGE..ST182,183	10/1990 - 12/1990	1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90179-06026	3SGE..ST182,183	09/1989 - 09/1993	1
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-07001	3SG#..ST18#	09/1989 - 09/1993	10
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-07001	3SG#..ST18#	09/1989 - 09/1993	10
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-07001	3SG#..ST18#	09/1989 - 09/1993	10
11213 - GASKET, CYLINDER HEAD COVER
11213-74040	3SGE..ST182,183	09/1989 - 09/1993	1
11214 - GASKET, CYLINDER HEAD COVER, NO.2
11214-74020	3SGE..ST182,183	09/1989 - 09/1993	1
12108 - CAP SUB-ASSY, OIL FILLER
12180-13030	3SFE,3SG#..ST18#	09/1989 - 08/1990	1
12180-13030	3SFE,3SG#..ST18#	08/1991 - 09/1991	1
12180-13030	3SG#..ST18#	09/1991 - 12/2999	1
12180-13030	3SG#..ST18#	08/1990 - 09/1990	1
12180-13030	3SG#..ST18#	09/1990 - 08/1991	1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140	3SFE,3SG#..ST18#	09/1989 - 09/1993	1
12208 - PLATE SUB-ASSY, VENTILATION BAFFLE
12208-74020	3SGE..ST182,183	09/1989 - 12/1989	1
12208-74030	3SGE..ST182,183	12/1989 - 09/1993	1
12238A - PLATE, VENTILATION BAFFLE
12238-74040	3SGE..ST182,183	12/1989 - 09/1993	1
12238-74020	3SGE..ST182,183	09/1989 - 12/1989	1
Common parts
90105-05022
90105-06201
90105-06202
90116-06055
92122-40625

ST183-BLMVF (1989)

(8909- )3SGE
