ST183-BLMSK (1989)
Toyota Celica

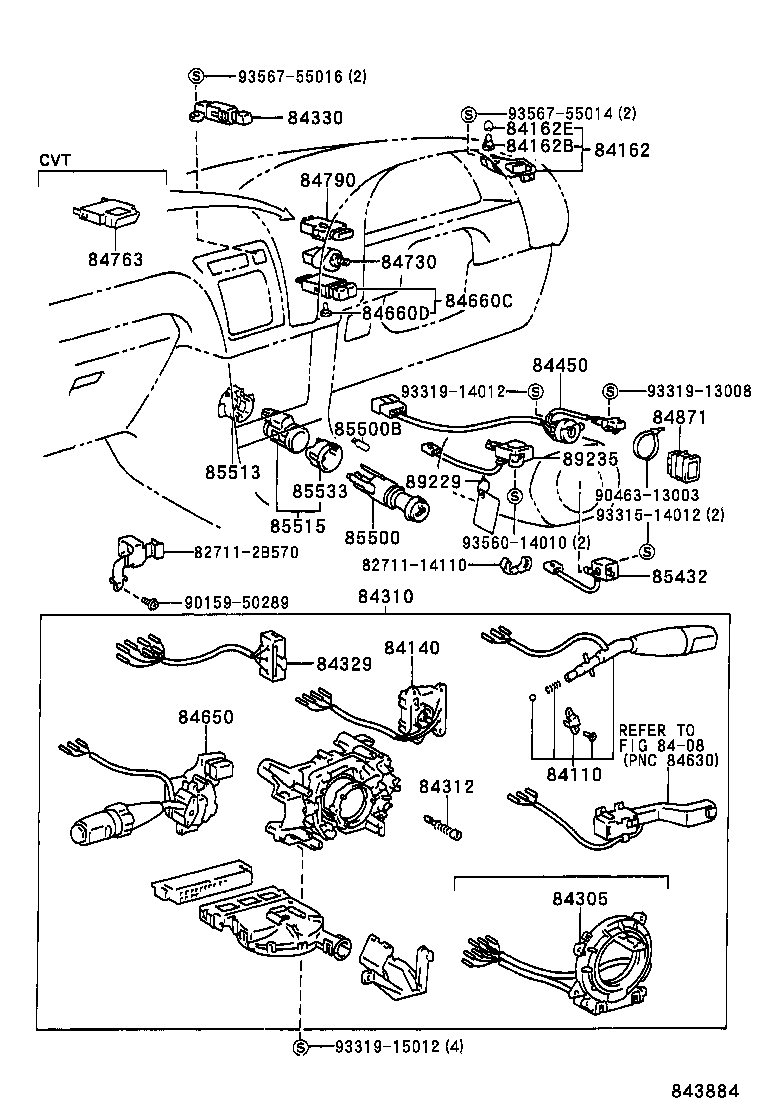

(8909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-20100 |
ST18# |
1 | ||
| 84162B - BULB, FOG LAMP SWITCH | ||||
| 84999-10320 |
ST18# 14V 0.84W |
1 | ||
| 84162E - CAP, FOG LAMP BULB | ||||
| 84998-10270 |
ST18# |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-2G300 |
ST182..SR;ST183..MTM..SR |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-20240 |
ST18# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-20210 |
ST182,183..SR ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ) OR ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 84450-20210 |
ST182,183..SR ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 84450-20200 |
ST182,183..SR |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-2D260 |
ST182..SR;ST183..MTM..SR |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-20160 |
ST18#..CV,GT4,GT4A,GTR,SR,ZR ｱﾘ(ｴｱｺﾝ) |
1 | ||
| 84660-20170 |
ST18#..CV,GT4,GT4A,GTR,SR,ZR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 81850-20250 |
ST18#..CV,GT4,GT4A,GTR,SR,ZR 14V 0.56W,ｸﾞﾘｰﾝ |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-20300 |
ST182,183..SR |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-20290 |
ST18#..LB |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30410 |
ST18# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10250 |
ST18# 14V 1.4W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
ST18# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-20040 |
ST18# |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30020 |
ST18# |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 82711-2B570 | ||||
| 90159-50289 | ||||
| 90463-13003 | ||||
| 93315-14012 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| 93560-14010 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8408 | ||||

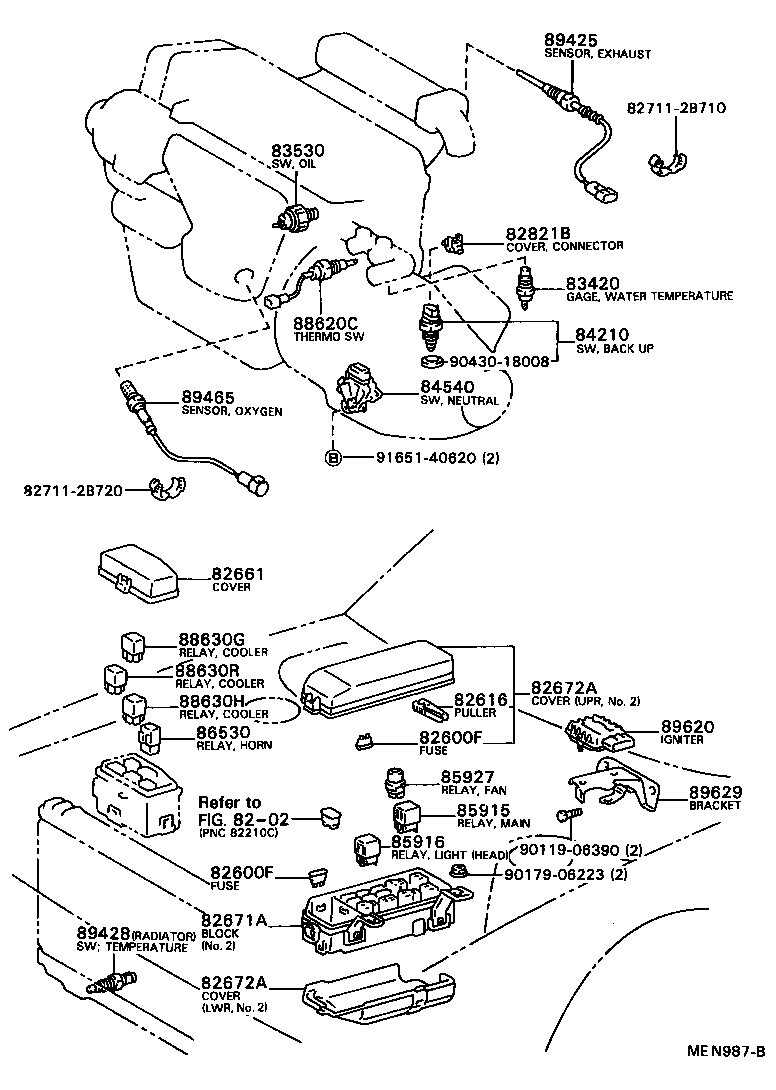

(8909- )SR,ZR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
ST18# 7.5A |
1 | ||
| 90982-07011 |
ST18# 30A,緑 |
1 | ||
| 90982-09003 |
ST18# 15A |
1 | ||
| 90982-09002 |
ST18# 10A |
1 | ||
| 90982-09004 |
ST18# 20A,黄 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
ST18# 7.5A |
1 | ||
| 90982-07011 |
ST18# 30A,緑 |
1 | ||
| 90982-09003 |
ST18# 15A |
1 | ||
| 90982-09002 |
ST18# 10A |
1 | ||
| 90982-09004 |
ST18# 20A,黄 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12020 |
ST18# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-20040 |
ST182,183..CV,GTR,SR,ZR |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-20210 |
ST182,183 NO.2 |
1 | ||
| 82671-20150 |
ST18# NO.1 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20490 |
ST18# NO.1 |
1 | ||
| 82672-20610 |
ST18# NO.3 |
1 | ||
| 82672-20540 |
ST182,183 UPPER,NO.2 |
1 | ||
| 82672-20590 |
ST182,183 LOWER,NO.2 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20490 |
ST18# NO.1 |
1 | ||
| 82672-20610 |
ST18# NO.3 |
1 | ||
| 82672-20540 |
ST182,183 UPPER,NO.2 |
1 | ||
| 82672-20590 |
ST182,183 LOWER,NO.2 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
ST182,183..SR,ZR |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30080 |
ST18# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
ST18#..MTM |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 85925-17010 |
ST18# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02008 |
ST18# TAIL LAMP |
1 | ||
| 90987-02006 |
ST18# HEADLAMP |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03001 |
ST18#..ACT,CV,GT4,GT4A,GTR,SR,ZR |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
ST18# |
1 | ||
| 88620C - THERMO SWITCH ASSY | ||||
| 88625-20290 |
ST182,183..SR,ZR |
1 | ||
| 88625-20290 |
ST182,183..SR,ZR ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-04003 |
ST18#..ACT,GT4A,GTR,SR,ZR |
1 | ||
| 90987-04003 |
ST18#..GT4,GTR,SR,ZR |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02010 |
ST18#..ACT,GT4A,GTR,SR,ZR |
1 | ||
| 90987-02010 |
ST18#..GT4,GTR,SR,ZR |
1 | ||
| 88630R - RELAY ASSY, COOLER, NO.3 | ||||
| 90987-02009 |
ST18#..GT4,GTR,SR,ZR |
1 | ||
| 90987-02009 |
ST18# |
1 | ||
| 90987-02010 |
ST182,183..ACT,SR,ZR |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-12210 |
ST18#..GT4,SR,ZR |
1 | ||
| 89425-29565 |
ST182,183 |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-15030 |
ST18# RADIATOR |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-32060 |
ST182,183..SR,ZR |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-12010 |
ST18# |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-20120 |
ST18# |
1 | ||
| Common parts | ||||
| 82711-2B710 | ||||
| 82711-2B720 | ||||
| 90119-06390 | ||||
| 90179-06223 | ||||
| 90430-18008 | ||||
| 91651-40620 | ||||
| Linked diagrams | ||||
| 8202 | ||||

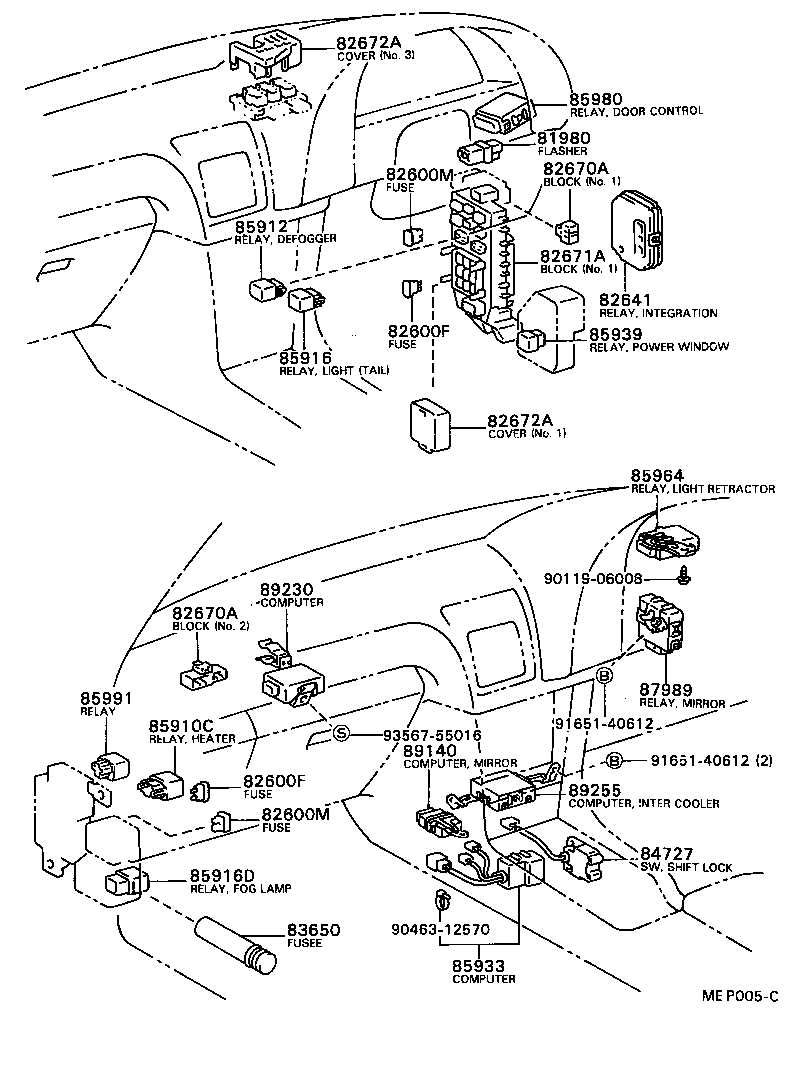

(8909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
ST18# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
ST18# 7.5A |
1 | ||
| 90982-07011 |
ST18# 30A,緑 |
1 | ||
| 90982-09003 |
ST18# 15A |
1 | ||
| 90982-09002 |
ST18# 10A |
1 | ||
| 90982-09004 |
ST18# 20A,黄 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
ST18# 7.5A |
1 | ||
| 90982-07011 |
ST18# 30A,緑 |
1 | ||
| 90982-09003 |
ST18# 15A |
1 | ||
| 90982-09002 |
ST18# 10A |
1 | ||
| 90982-09004 |
ST18# 20A,黄 |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
ST18# 30A,ﾋﾟﾝｸ,30A |
1 | ||
| 90982-10002 |
ST18# 40A,緑,40A |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
ST18# 30A,ﾋﾟﾝｸ,30A |
1 | ||
| 90982-10002 |
ST18# 40A,緑,40A |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-20100 |
ST182,183..SR;ST182,183..MTM..ZR |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-20480 |
ST18# NO.1 |
1 | ||
| 82670-20580 |
ST18# NO.2 |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-20480 |
ST18# NO.1 |
1 | ||
| 82670-20580 |
ST18# NO.2 |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-20210 |
ST182,183 NO.2 |
1 | ||
| 82671-20150 |
ST18# NO.1 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20490 |
ST18# NO.1 |
1 | ||
| 82672-20610 |
ST18# NO.3 |
1 | ||
| 82672-20540 |
ST182,183 UPPER,NO.2 |
1 | ||
| 82672-20590 |
ST182,183 LOWER,NO.2 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-20490 |
ST18# NO.1 |
1 | ||
| 82672-20610 |
ST18# NO.3 |
1 | ||
| 82672-20540 |
ST182,183 UPPER,NO.2 |
1 | ||
| 82672-20590 |
ST182,183 LOWER,NO.2 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
ST18# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
ST18# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02008 |
ST18#..LB |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02008 |
ST18# TAIL LAMP |
1 | ||
| 90987-02006 |
ST18# HEADLAMP |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02009 |
ST18# MARUKO |
1 | ||
| 90987-02010 |
ST18# NIPPONDENSO |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02009 |
ST18# MARUKO |
1 | ||
| 90987-02010 |
ST18# NIPPONDENSO |
1 | ||
| 85964 - RELAY, LIGHT RETRACTOR | ||||
| 85906-20010 |
ST18# |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-20190 |
ST18# |
1 | ||
| Common parts | ||||
| 90119-06008 | ||||
| 90463-12570 | ||||
| 91651-40612 | ||||
| 93567-55016 | ||||

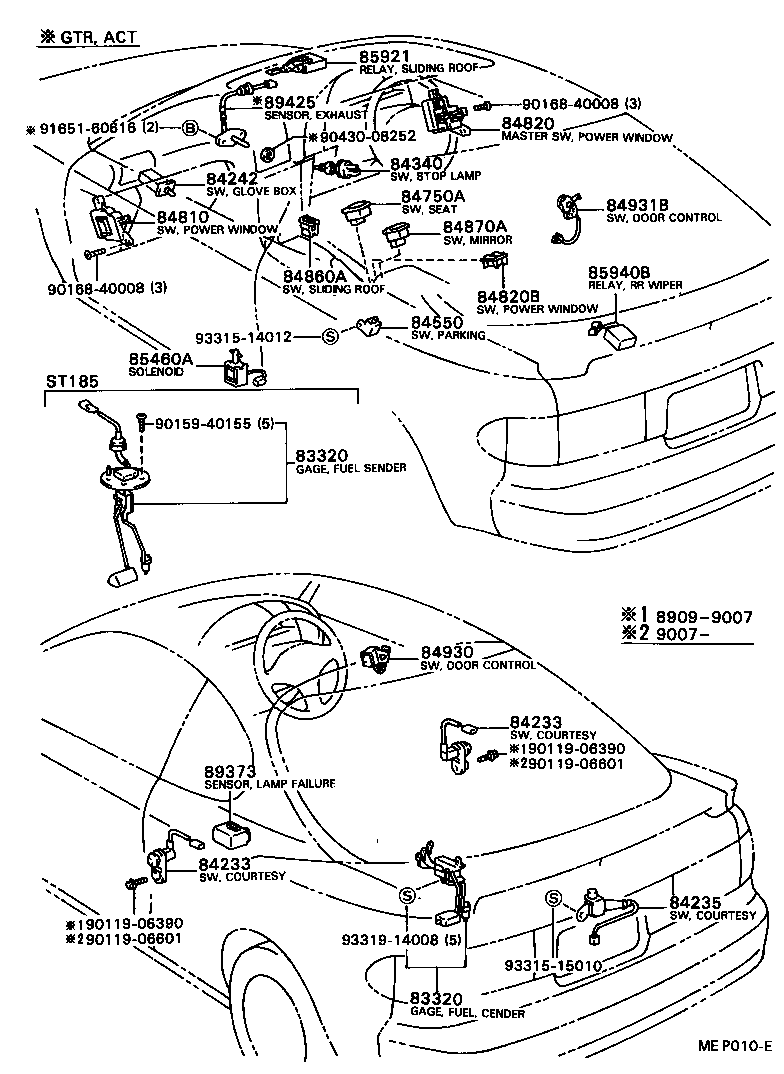

(8909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80139 |
ST182,183 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80139 |
ST182,183 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20210 |
ST18# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20210 |
ST18# |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-20190 |
ST18#..LB |
1 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
ST18# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32030 |
ST18# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-12060 |
ST18# |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-20150 |
ST18# |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-20310 |
ST18#..LB |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-20080 |
ST182,183..SR,ZR |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-20070 |
ST18# |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-20180 |
ST18#..LB 左側 |
1 | ||
| 84931-20130 |
ST18#..LB 右側 |
1 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-20060 |
ST18#..LB |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-20120 |
ST18#..LB |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-20160 |
ST18#..LB |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-12210 |
ST18#..GT4,SR,ZR |
1 | ||
| 89425-29565 |
ST182,183 |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-06601 | ||||
| 90159-40155 | ||||
| 90168-40008 | ||||
| 90430-08252 | ||||
| 91651-60616 | ||||
| 93315-14012 | ||||
| 93315-15010 | ||||
| 93319-14008 | ||||
