ST183-BLMSK (1989)

Toyota Celica

Production Sep 1989 - Aug 1991
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8909- )

Click highlighted areas on diagram

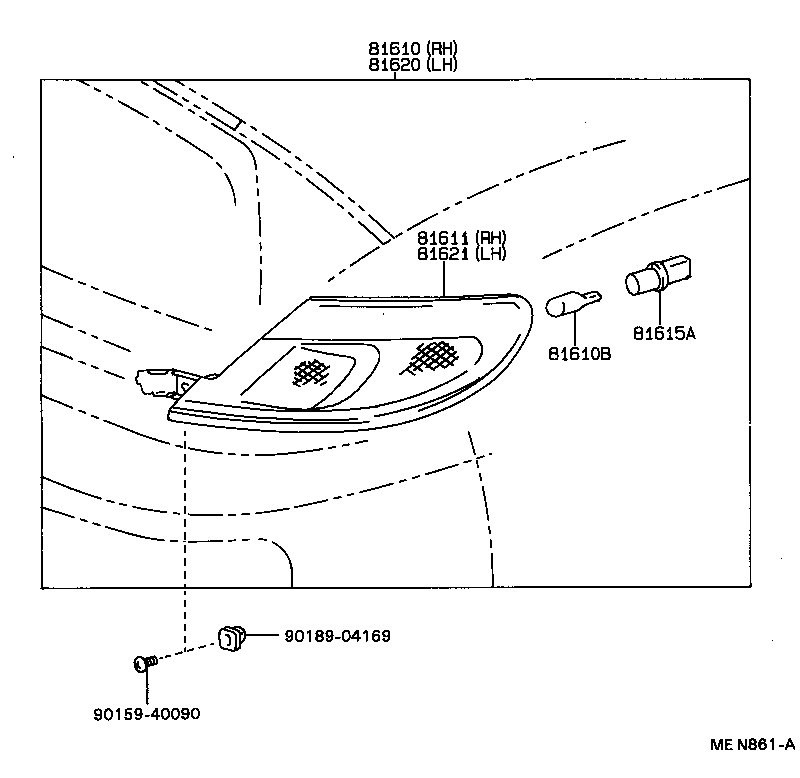

diagram 81610 81610B 81611 81615A 81620 81621 9015940090 9018904169
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-20390

ST18#

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

ST18#

12V 5W

 2
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-20390

ST18#

 1
81615A - SOCKET PLUG, CLEARANCE LAMP
81735-12180

ST18#

 2
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-20390

ST18#

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-20390

ST18#

 1
Common parts
90159-40090
90189-04169
