ST183-BLMSK (1989)

Toyota Celica

Production Sep 1989 - Aug 1991
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8909- )ST183..CV,GTR,SR,ZR

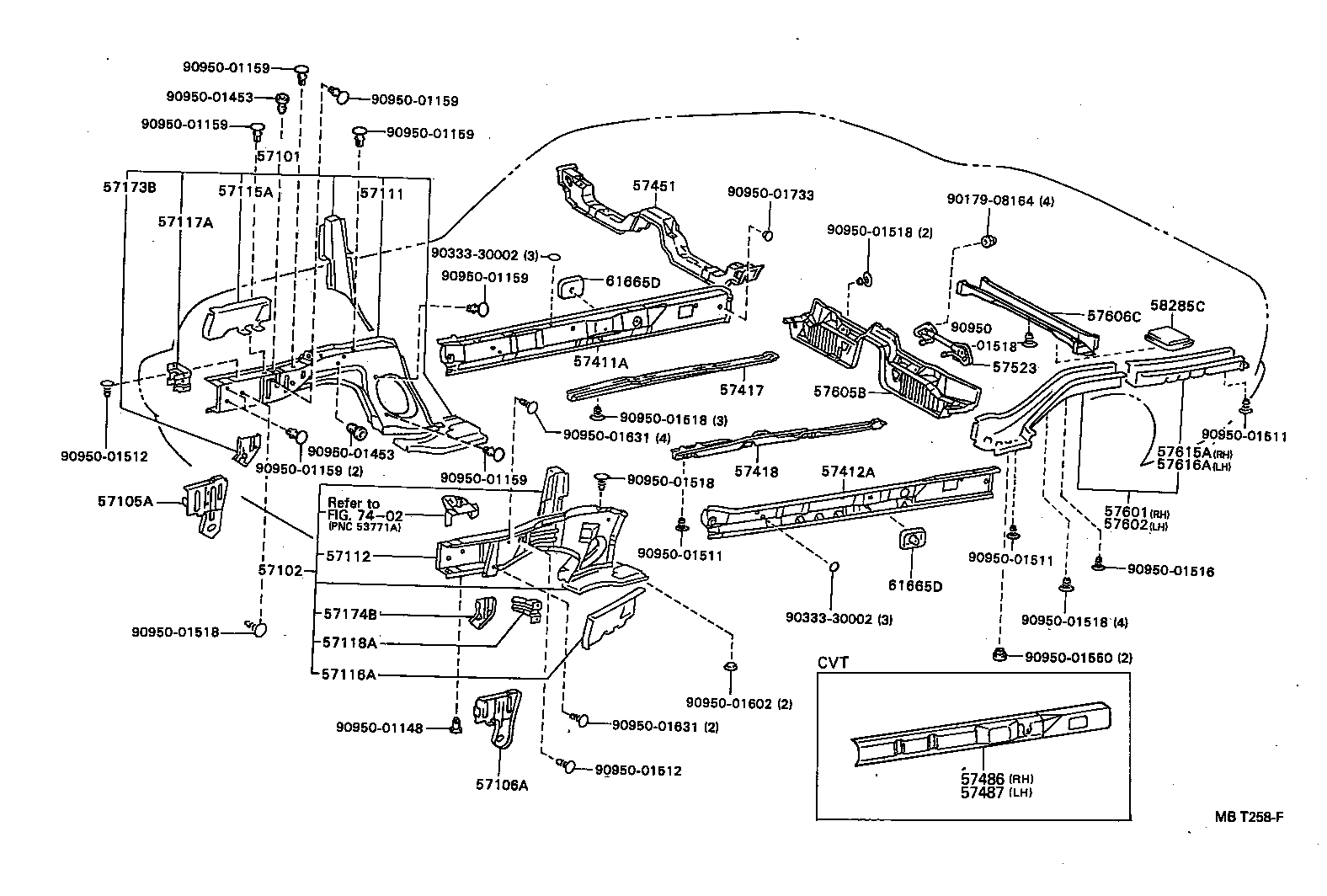

Click highlighted areas on diagram

diagram 57101 57102 57105A 57106A 57111 57112 57115A 57116A 57117A 57118A 57173B 57174B 57411A 57412A 57417 57418 57451 57486 57487 57523 57601 57602 57605B 57606C 57615A 57616A 58285C 61665D 61665D 7402 9017908164 9033330002 9033330002 9095001148 9095001159 9095001159 9095001159 9095001159 9095001159 9095001159 9095001159 9095001453 9095001453 9095001511 9095001511 9095001511 9095001512 9095001512 9095001516 9095001518 9095001518 9095001518 9095001518 9095001518 9095001518 9095001550 9095001602 9095001631 9095001631 9095001733
Part # Description Qty Price
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-20680

ST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-20600

ST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR

 1
57105A - PLATE SUB-ASSY, FRONT SIDE MEMBER, RH
57105-20060

ST18#

 1
57106A - PLATE SUB-ASSY, FRONT SIDE MEMBER, LH
57106-20060

ST18#

 1
57111 - MEMBER, FRONT SIDE, RH
57111-20210

ST18#..CV,GT4,GT4A,GT4RC,GTR,SR,ZR

 1
57112 - MEMBER, FRONT SIDE, LH
57112-20220

ST18#..CV,GT4,GT4A,GTR,SR,ZR

 1
57115A - PLATE, FRONT SIDE MEMBER, OUTER RH
57115-20140

ST18#

 1
57116A - PLATE, FRONT SIDE MEMBER, OUTER LH
57116-20150

ST18#

 1
57117A - REINFORCEMENT, FRONT BUMPER MOUNTING
57117-20070

ST18#

 1
57118A - REINFORCEMENT, FRONT BUMPER MOUNTING, LH
57118-20040

ST18#

 1
57173B - REINFORCEMENT, FRONT BUMPER MOUNTING, RH
57173-20030

ST18#

 1
57174B - REINFORCEMENT, FRONT CROSSMEMBER, NO.3 LH
57174-20030

ST18#

 1
57411A - MEMBER, FLOOR SIDE, INNER RH
57411-20100

ST18#

 1
57412A - MEMBER, FLOOR SIDE, INNER LH
57412-20220

ST18#

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-20060

ST182,183

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57418-20060

ST182,183

 1
57451 - MEMBER, FRONT FLOOR CROSS
57408-20050

ST182,183

 1
57523 - BRACE, CENTER FLOOR CROSSMEMBER
57503-20010

ST182,183

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-20320

ST183..CV,GTR,SR,ZR

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-20310

ST183..CV,GTR,SR,ZR

 1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-20080

ST182,183

 1
57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57606-20120

ST183

 1
57615A - MEMBER, REAR FLOOR SIDE, REAR RH
57615-20907

ST182,183..CV,GTR,SR,ZR

 1
57616A - MEMBER, REAR FLOOR SIDE, REAR LH
57616-20906

ST182,183..CV,GTR,SR,ZR

 1
58285C - COVER, REAR FLOOR HOLE
58285-20020

ST182;ST183..SR,ZR

 2
61665D - PLATE, SAFETY BELT ANCHORAGE
61665-22010

ST18#..LB

 2
61665D - PLATE, SAFETY BELT ANCHORAGE
61665-22010

ST18#..LB

 2
Common parts
90179-08164
90333-30002
90950-01148
90950-01159
90950-01453
90950-01511
90950-01512
90950-01516
90950-01518
90950-01550
90950-01602
90950-01631
90950-01733
Linked diagrams
7402
