ST183-BLMSK (1989)
Toyota Celica
Production
Sep 1989
-
Aug 1991
Engine
3SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

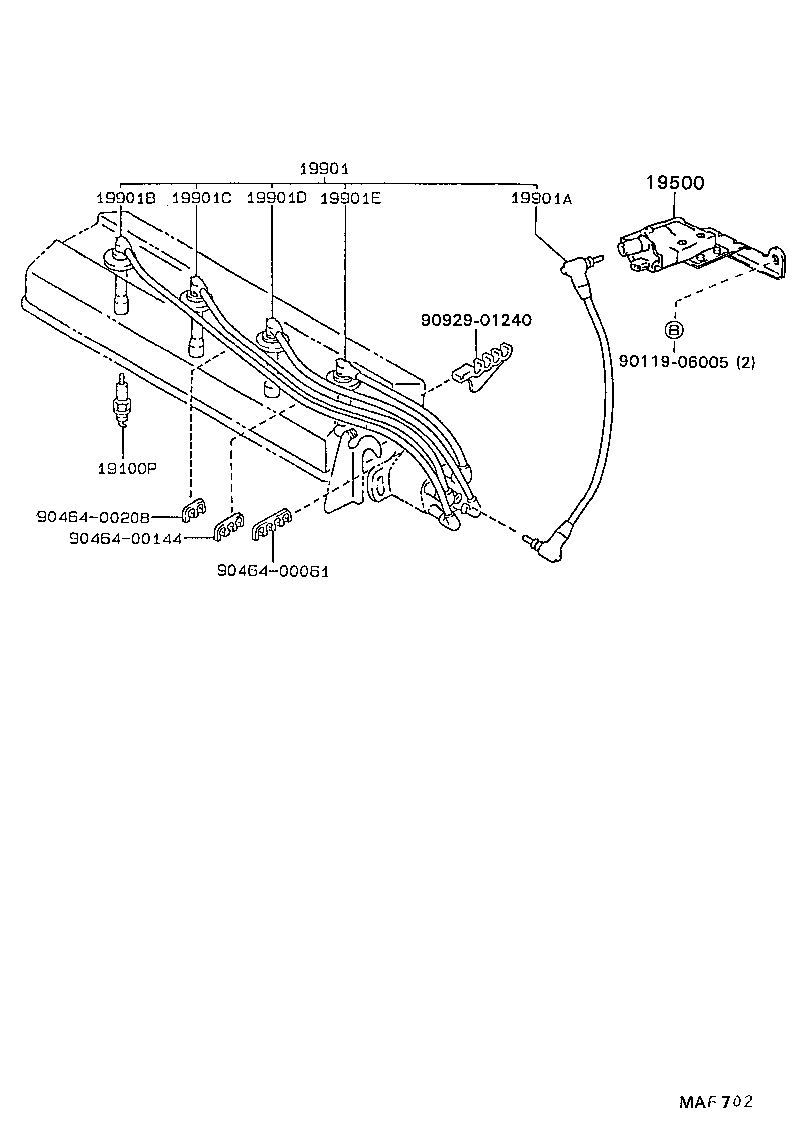

(9008- )3SFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100P - PLUG, SPARK | ||||
| 90919-01129 |
3SFE..ST182,183 Q16R−U11 |
4 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 19500-74020 |
3SFE,3SG#..ST18#..GT4,GTR,SR,ZR |
1 | ||
| 19500-74040 |
3SFE..ST182,183 |
1 | ||
| 19901 - CORD SET, COIL & SPARK, W/RESISTIVE | ||||
| 90919-21470 |
3SFE..ST182,183 |
1 | ||
| 19901A - CORD, COIL RESISTIVE | ||||
| 90919-13364 |
3SFE..ST182,183 |
1 | ||
| 19901B - CORD, SPARK PLUG RESISTIVE, NO.1 | ||||
| 90919-12820 |
3SFE..ST182,183 |
1 | ||
| 90919-15130 |
3SFE..ST182,183 SUMITOMO |
1 | ||
| 90919-15134 |
3SFE..ST182,183 YAZAKI |
1 | ||
| 19901C - CORD, SPARK PLUG RESISTIVE, NO.2 | ||||
| 90919-12819 |
3SFE..ST182,183 |
1 | ||
| 19901D - CORD, SPARK PLUG RESISTIVE, NO.3 | ||||
| 90919-12818 |
3SFE..ST182,183 |
1 | ||
| 19901E - CORD, SPARK PLUG RESISTIVE, NO.4 | ||||
| 90919-15137 |
3SFE..ST182,183 YAZAKI |
1 | ||
| 90919-12817 |
3SFE..ST182,183 |
1 | ||
| 90919-15133 |
3SFE..ST182,183 SUMITOMO |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90464-00542 | ||||
| 90464-00555 | ||||
| 90464-00556 | ||||
| 90464-00645 | ||||
| 91611-A0614 | ||||

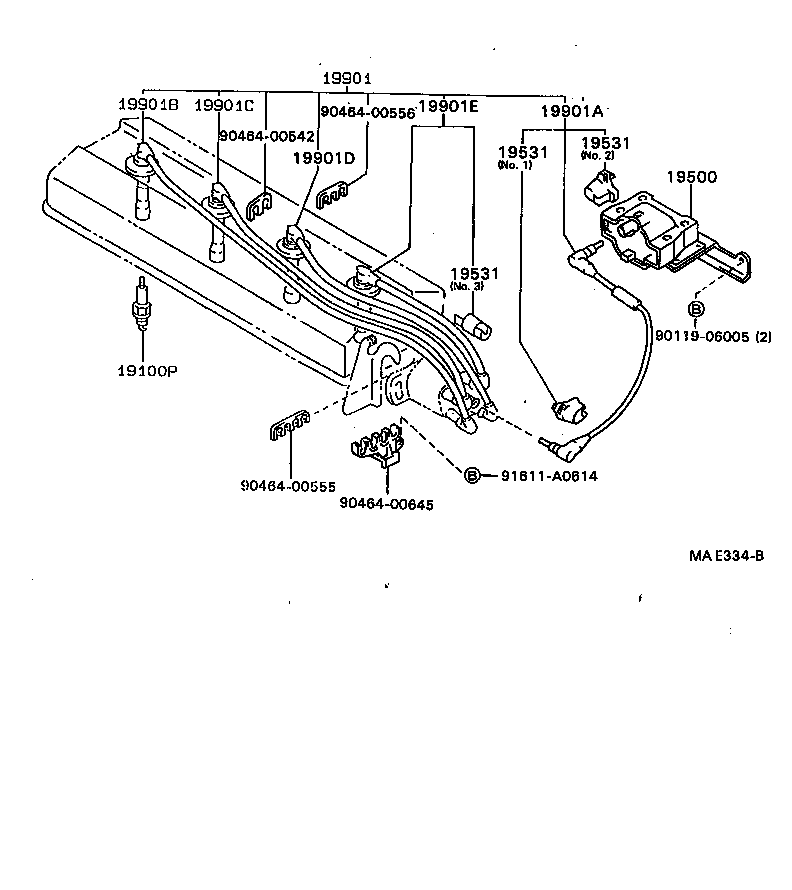

(8909-9008)3SFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100P - PLUG, SPARK | ||||
| 90919-01129 |
3SFE..ST182,183 Q16R−U11 |
4 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 19500-74020 |
3SFE,3SG#..ST18#..GT4,GTR,SR,ZR |
1 | ||
| 19500-74040 |
3SFE..ST182,183 |
1 | ||
| 19901 - CORD SET, COIL & SPARK, W/RESISTIVE | ||||
| 90919-21470 |
3SFE..ST182,183 |
1 | ||
| 19901A - CORD, COIL RESISTIVE | ||||
| 90919-13364 |
3SFE..ST182,183 |
1 | ||
| 19901B - CORD, SPARK PLUG RESISTIVE, NO.1 | ||||
| 90919-12820 |
3SFE..ST182,183 |
1 | ||
| 90919-15130 |
3SFE..ST182,183 SUMITOMO |
1 | ||
| 90919-15134 |
3SFE..ST182,183 YAZAKI |
1 | ||
| 19901C - CORD, SPARK PLUG RESISTIVE, NO.2 | ||||
| 90919-12819 |
3SFE..ST182,183 |
1 | ||
| 19901D - CORD, SPARK PLUG RESISTIVE, NO.3 | ||||
| 90919-12818 |
3SFE..ST182,183 |
1 | ||
| 19901E - CORD, SPARK PLUG RESISTIVE, NO.4 | ||||
| 90919-15137 |
3SFE..ST182,183 YAZAKI |
1 | ||
| 90919-12817 |
3SFE..ST182,183 |
1 | ||
| 90919-15133 |
3SFE..ST182,183 SUMITOMO |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90464-00061 | ||||
| 90464-00144 | ||||
| 90464-00208 | ||||
| 90929-01240 | ||||
